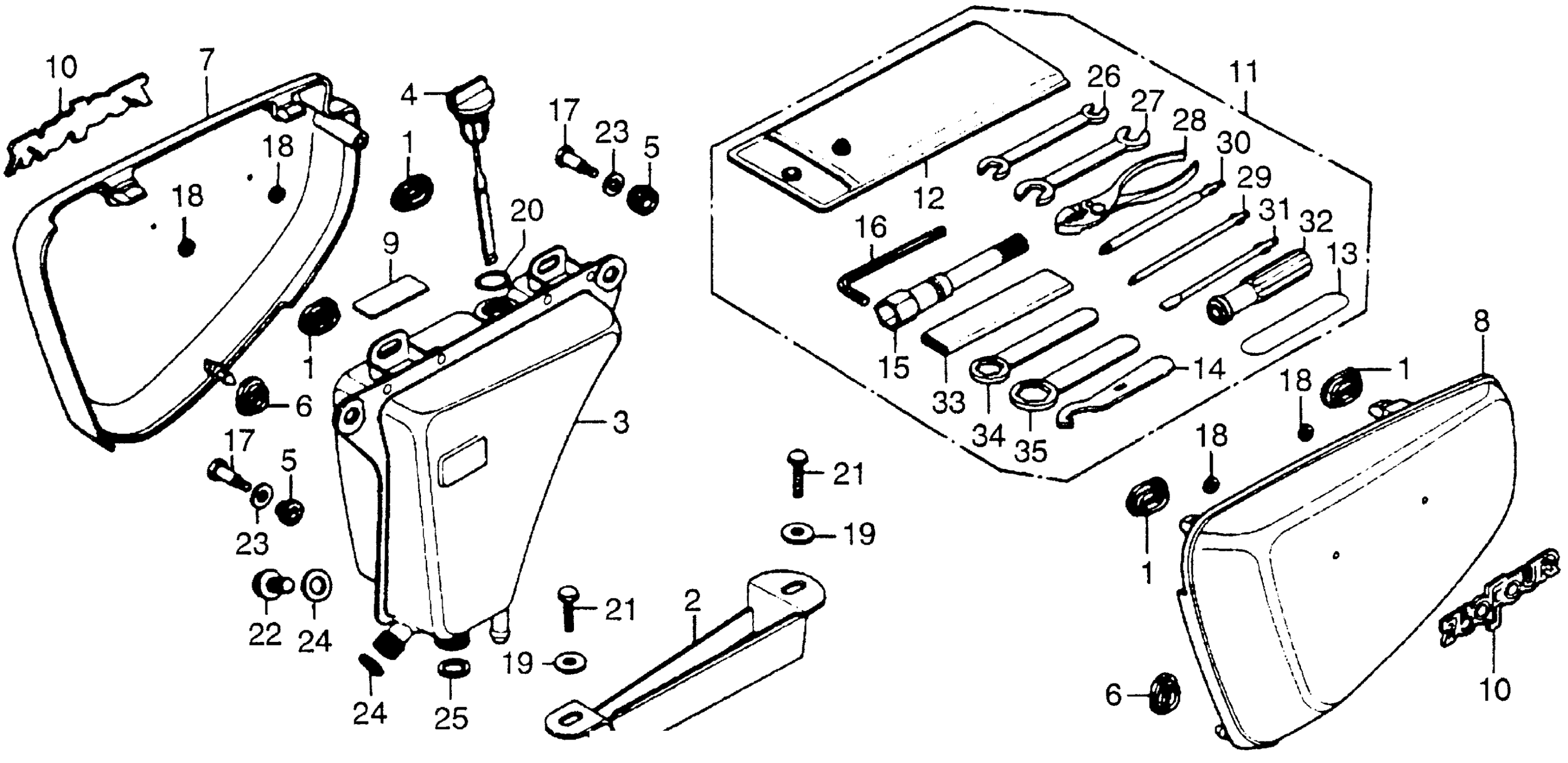

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 SIDE COVER + OIL TANK + TOOLS Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

TRAY, TOOL (NOT AVAILABLE)

50341-392-000

Unavailable

3

TANK, OIL (NOT AVAILABLE)

55100-392-000

Unavailable

4

DIPSTICK, OIL (NOT AVAILABLE)

55105-392-000

Unavailable

5

RUBBER, OIL TANK

55106-300-000

Unavailable

6

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

7

COVER, R. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

83600-392-000ZB

Unavailable

7

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-392-000ZD

Unavailable

8

COVER, L. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

83700-410-000ZA

Unavailable

8

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83700-410-000ZC

Unavailable

9

PLATE, OIL CAUTION (NOT AVAILABLE)

87125-392-771

Unavailable

10

EMBLEM, SIDE COVER (NOT AVAILABLE)

87127-410-770

Unavailable

11

TOOL SET (NOT AVAILABLE)

89010-410-000

Unavailable

12

BAG, TOOL

89101-ME5-670

Unavailable

12

BAG, TOOL

89101-371-013

$5.85

13

GAUGE, FEELER (0.7)

89103-371-000

$3.31

14

WRENCH, PIN

89215-404-670

$7.60

15

WRENCH, SPARK PLUG

89216-323-000

Unavailable

16

WRENCH, HEX. (6MM)

89221-371-000

$4.28

17

BOLT A (6MM)

90141-300-000

Unavailable

18

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

18

NUT, SPEED (3MM)

90313-567-000

$3.97

19

WASHER (6X20)

90512-300-000

$3.08

20

O-RING (23X2)

91354-371-000

$3.19

20

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

26

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

27

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

28

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

29

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

30

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

31

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

32

GRIP

99003-50000

$3.27

33

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

34

WRENCH, EYE (22MM)

99006-22000

$4.16

35

WRENCH, EYE (24MM)

99006-24000

$4.29
