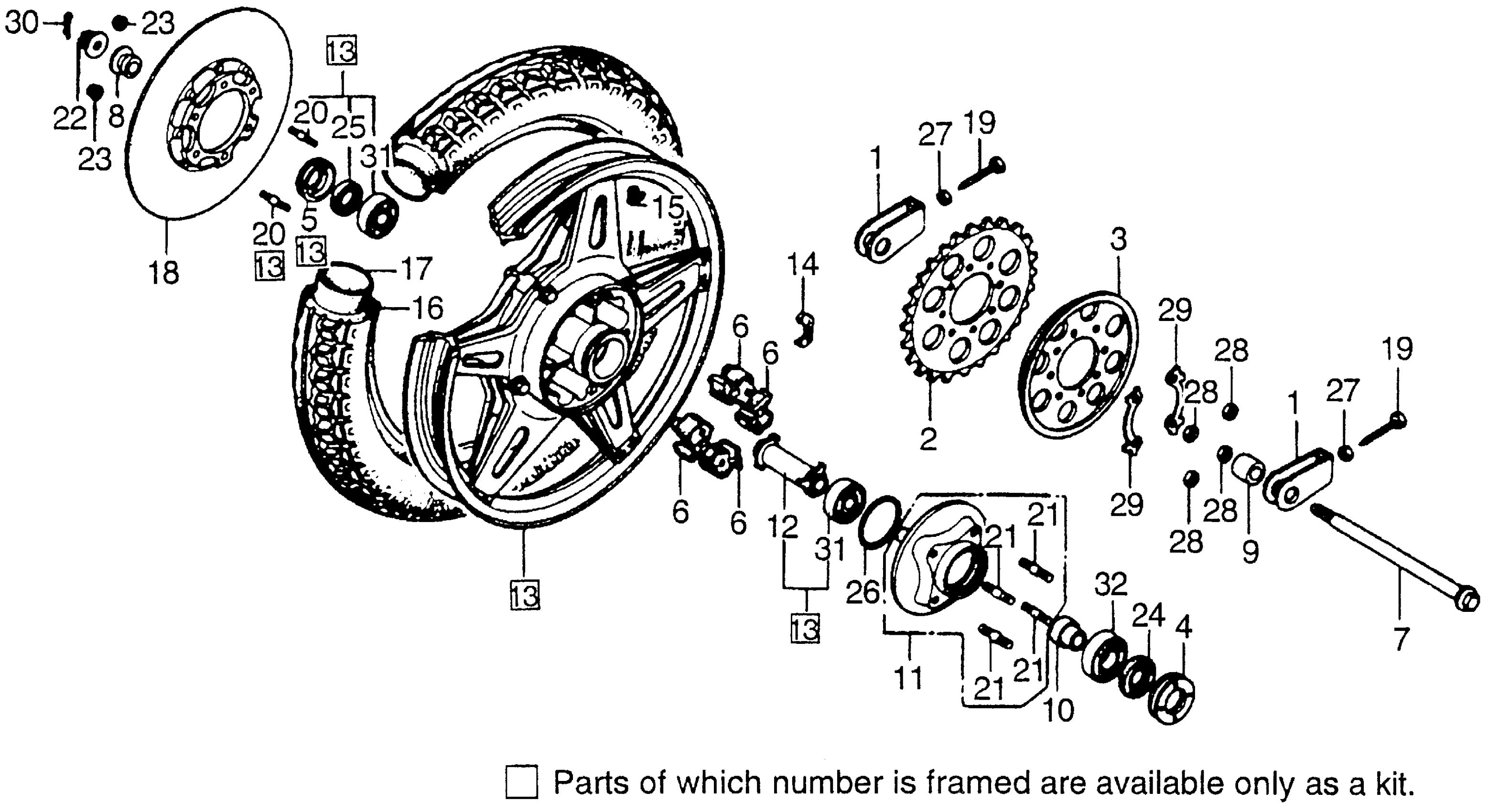

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 REAR WHEEL + DISC Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-392-000

Unavailable

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE) This part replaces 40543-405-000.

40543-392-000

Unavailable

2

SPROCKET, FINAL DRIVEN (43T) (NOT AVAILABLE)

41201-410-000

Unavailable

3

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-405-000

Unavailable

4

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

5

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

6

DAMPER, RR. WHEEL

41241-300-050

$19.38

7

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-393-000.

42301-425-870

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-425-870

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-357-010

Unavailable

9

COLLAR, RR. WHEEL SIDE This part replaces 42311-392-000.

42311-425-870

Unavailable

9

COLLAR, RR. WHEEL SIDE

42311-425-870

Unavailable

10

SLEEVE, RR. AXLE

42605-393-000

Unavailable

11

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-405-000

Unavailable

12

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-392-000

Unavailable

13

WHEEL SUB-ASSY., RR. (NOT AVAILABLE)

42660-410-670

Unavailable

14

MARK, RR. SPOKE PLATE (NOT AVAILABLE)

42703-410-003

Unavailable

15

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

15

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

16

TIRE, RR. (4.00H-18) (BS) (NOT AVAILABLE)

42711-341-003

Unavailable

17

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

17

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

18

DISK, RR. BRAKE (NOT AVAILABLE)

43120-371-000

Unavailable

19

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

20

BOLT, STUD (8X45)

90125-329-010

$3.26

21

BOLT, STUD (12X54) (NOT AVAILABLE)

90128-341-000

Unavailable

22

NUT, AXLE (18MM)

90305-393-000

Unavailable

23

NUT, HEX. (8MM)

90309-357-000

$3.40

24

OIL SEAL (34X55X9)

90753-283-000

$16.11

25

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

26

O-RING (68X2.6)

91258-300-013

$5.84

27

NUT, HEX. (8MM)

94002-08000-0S

$1.49

28

NUT, HEX. (12MM)

94030-12000

$1.49

29

WASHER A7, TONGUED (SOURCE: VINTAGE PARTS INC.)

94108-17000

Unavailable

30

PIN, COTTER (4.0X30)

94201-40300

$1.49

31

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

32

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable
