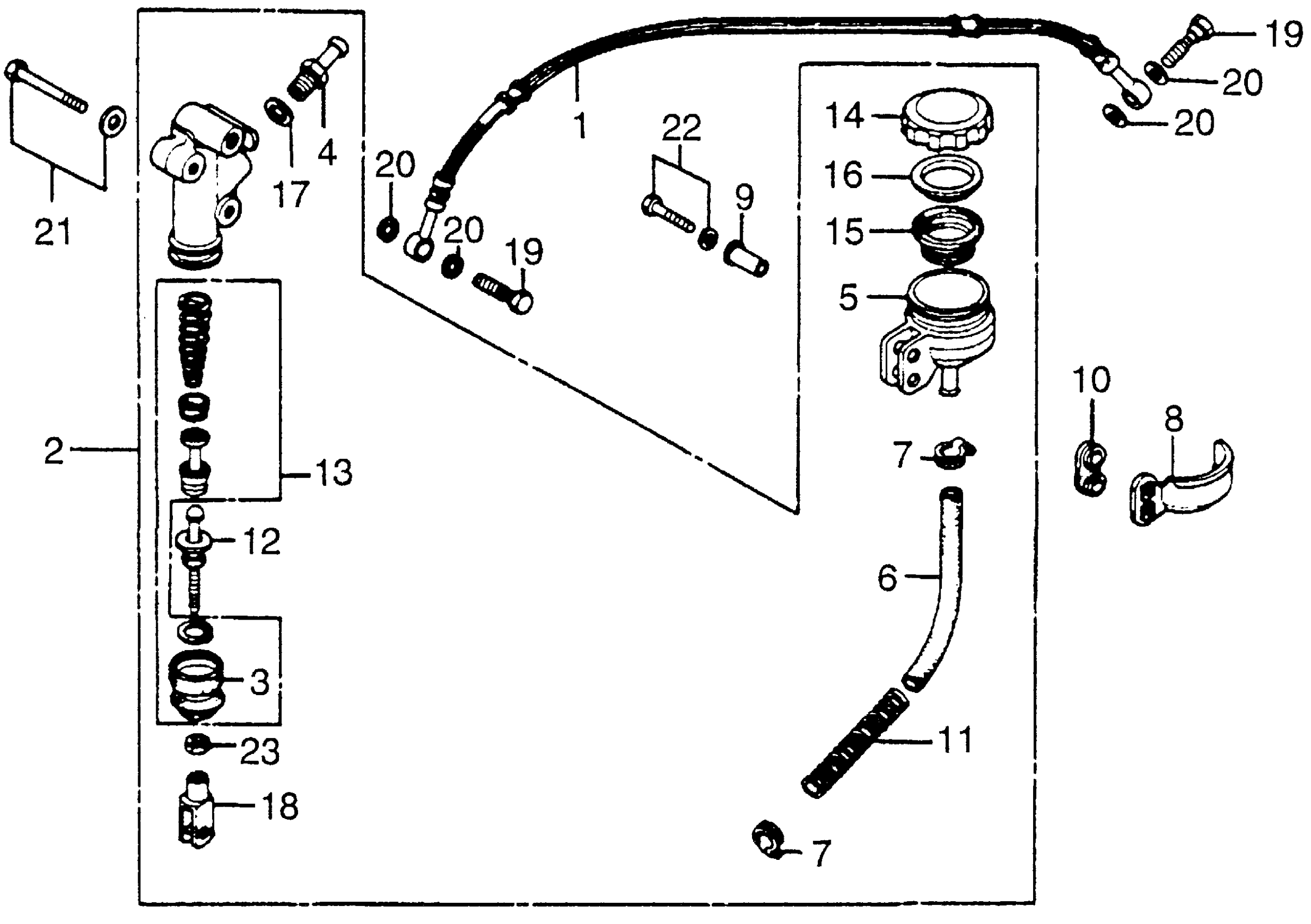

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 REAR MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NICHIRIN) (NOT AVAILABLE)

43310-410-003

Unavailable

2

MASTER CYLINDER ASSY., RR. (NA USE ALT:43510-405-P00) | Use up to Frame SN 2213679 This part replaces 43500-410-671.

43500-405-023

Unavailable

2

MASTER CYLINDER ASSY., RR. (NA USE ALT:43510-405-P00) | Use up to Frame SN 2213679 This part replaces 43500-410-672.

43500-405-023

Unavailable

2

MASTER CYLINDER ASSY., RR. (NA USE ALT:43510-405-P00)

43500-405-023

Unavailable

2

MASTER CYLINDER ASSY., RR. (NA USE ALT:43510-405-P00) This part replaces 43500-410-673.

43500-405-023

Unavailable

3

BOOT, MASTER CYLINDER (NOT AVAILABLE) | Use up to Frame SN 2252910

43504-371-003

Unavailable

3

BOOT, MASTER CYLINDER | Use from Frame SN 2252911

43504-371-013

$9.54

4

CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)

43505-410-003

Unavailable

5

CUP, MASTER CYLINDER OIL (NOT AVAILABLE)

43511-410-003

Unavailable

6

HOSE, MASTER CYLINDER OIL (NOT AVAILABLE)

43512-410-013

Unavailable

7

CLAMP, MASTER CYLINDER OIL HOSE This part replaces 43513-410-003.

43514-964-006

$17.93

7

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

8

COVER, MASTER CYLINDER OIL CUP (NOT AVAILABLE)

43514-410-000

Unavailable

9

COLLAR, MASTER CYLINDER OIL CUP (NOT AVAILABLE)

43515-410-000

Unavailable

10

RUBBER, MASTER CYLINDER SETTING (NOT AVAILABLE)

43516-410-000

Unavailable

11

PROTECTOR, MASTER CYLINDER OIL HOSE (NOT AVAILABLE)

43525-410-000

Unavailable

12

ROD, PUSH (NISSHIN) (NOT AVAILABLE)

43530-392-003

Unavailable

13

MASTER CYLINDER SET, RR.

43530-410-305

Unavailable

14

CAP, OIL CUP

43513-MJ6-006

Unavailable

14

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

14

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

15

DIAPHRAGM

45520-300-000

$9.05

16

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

16

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

17

GASKET (NOT AVAILABLE)

46402-642-910

Unavailable

18

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-371-000

Unavailable

19

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

19

BOLT, OIL

90145-300-010

$9.68

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

BOLT-WASHER (8X45) (SOURCE: VINTAGE PARTS INC.)

93481-08045-00

Unavailable

22

BOLT-WASHER (6X25) (NOT AVAILABLE)

93482-06025-00

Unavailable

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49
