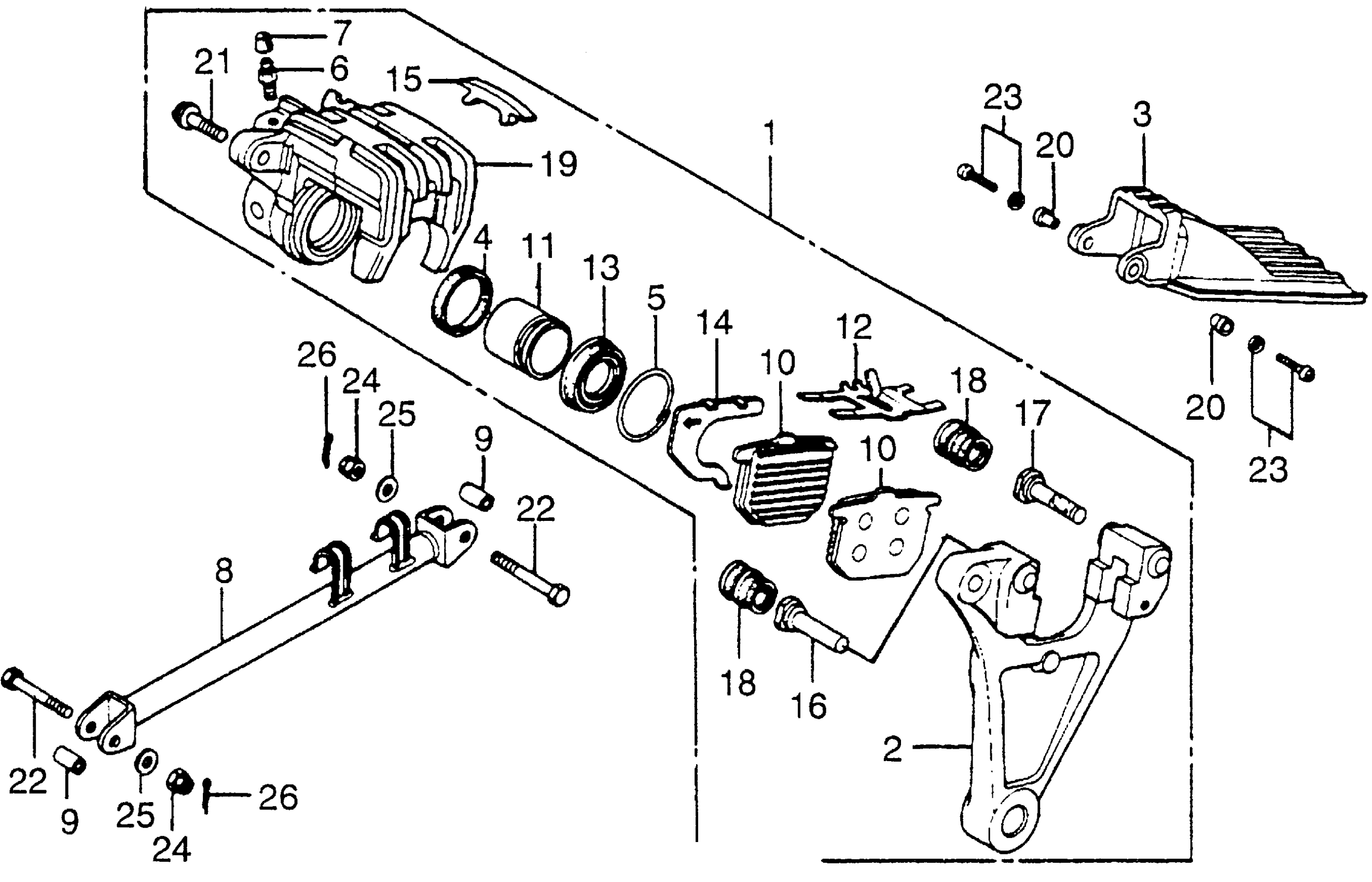

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 2206140 This part replaces 43100-410-006.

43100-410-026

Unavailable

1

CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 2252770 This part replaces 43100-410-016.

43100-410-026

Unavailable

1

CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE)

43100-410-026

Unavailable

2

BRACKET, RR. (NOT AVAILABLE)

43110-410-006

Unavailable

3

COVER, RR. DISK (NOT AVAILABLE)

43140-410-000

Unavailable

4

SEAL, PISTON (38MM)

43209-371-006

$10.85

5

CLIP, DUST COVER

43218-371-006

$13.86

6

SCREW, BLEEDER

43352-568-003

$7.95

7

CAP, BLEEDER SCREW

43353-548-003

$4.93

8

LINK, TORQUE (NOT AVAILABLE)

43431-410-000

Unavailable

9

COLLAR, LINK

43435-392-000

$5.90

10

PAD COMP | Use up to Frame SN 2206140 This part replaces 45105-410-006.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2206140 This part replaces 45105-410-016.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2252770 This part replaces 45105-410-016.

45105-410-005

Unavailable

10

PAD COMP This part replaces 45105-410-004.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2206140 This part replaces 45105-410-004.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2252770 This part replaces 45105-410-004.

45105-410-005

Unavailable

10

PAD COMP This part replaces 45105-410-007.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2206140 This part replaces 45105-410-007.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2252770 This part replaces 45105-410-007.

45105-410-005

Unavailable

10

PAD COMP This part replaces 45105-410-026.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2252770 This part replaces 45105-410-026.

45105-410-005

Unavailable

10

PAD COMP This part replaces 45105-410-305.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2206140 This part replaces 45105-410-305.

45105-410-005

Unavailable

10

PAD COMP | Use up to Frame SN 2252770 This part replaces 45105-410-305.

45105-410-005

Unavailable

11

PISTON (NISSHIN)

45107-410-006

Unavailable

12

SPRING, PAD (NISSHIN)

45108-410-006

Unavailable

13

BOOT, PISTON

45109-371-006

$26.38

14

SHIM B, PAD

45116-371-006

Unavailable

15

CAP, INDICATOR

45119-371-000

Unavailable

16

PIN A (NISSHIN)

45131-410-006

Unavailable

17

PIN B (NISSHIN)

45132-410-006

Unavailable

18

COVER, DUST

45133-371-006

$7.68

19

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-410-006.

45201-442-701

Unavailable

19

CALIPER, R. (NOT AVAILABLE)

45201-442-701

Unavailable

20

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

21

BOLT (8X25)

90116-410-006

$6.07

22

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

23

SCREW-WASHER (5X16)

93892-05016-07

$1.49

24

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

26

PIN, COTTER (2.0X22)

94201-20220

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

26

PIN, COTTER (2.0X22)

94201-29220

$1.49
