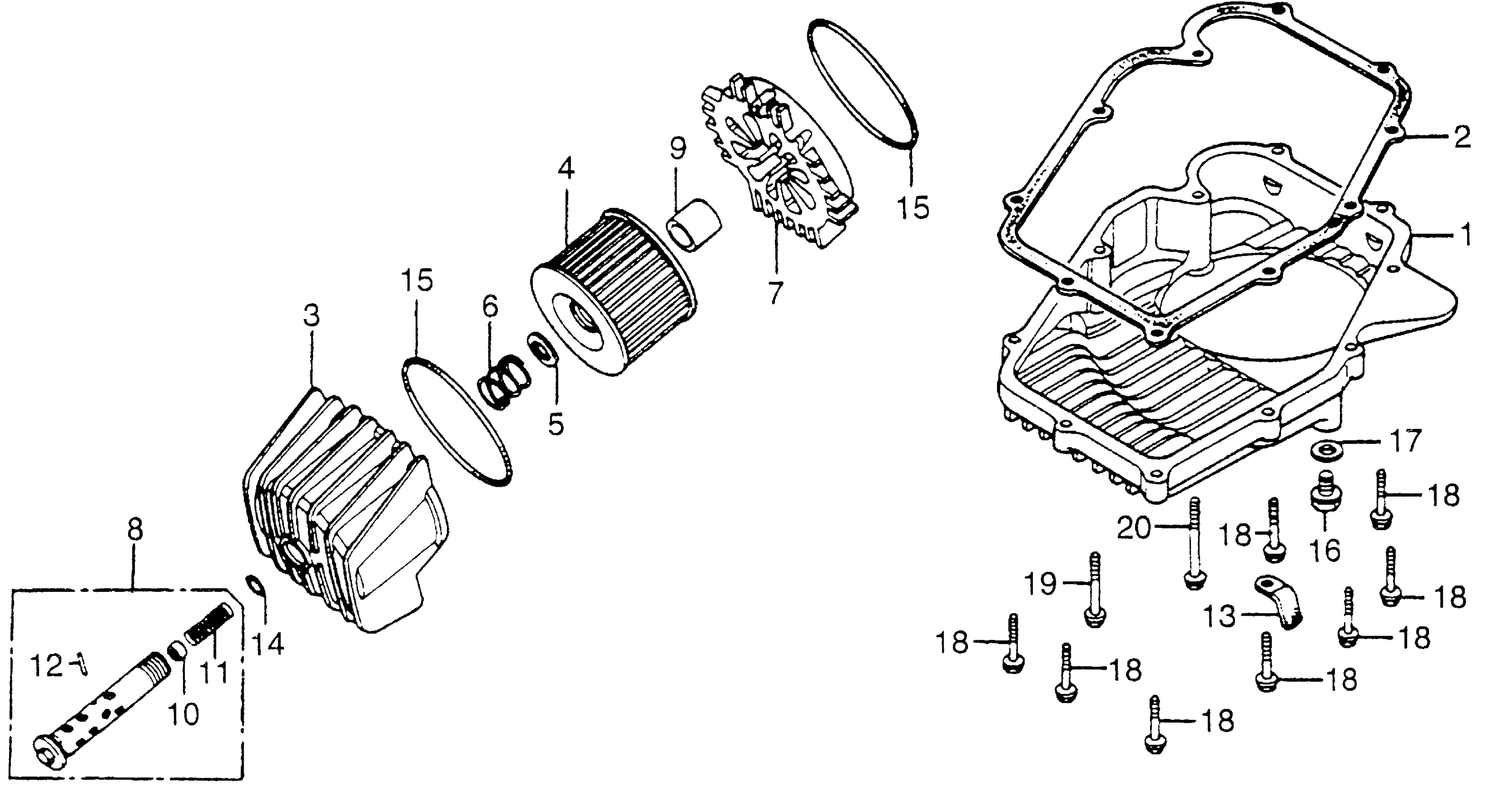

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 OIL FILTER + OIL PAN Diagram

PAN, OIL

11210-410-000

Unavailable

GASKET, OIL PAN This part replaces 11398-300-050.

11398-300-306

Unavailable

GASKET, OIL PAN

11398-300-306

Unavailable

CASE, OIL FILTER (NOT AVAILABLE)

15411-410-000

Unavailable

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

ELEMENT, OIL FILTER

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

BASE, OIL FILTER (NOT AVAILABLE)

15416-410-000

Unavailable

BOLT, OIL FILTER CENTER (NOT AVAILABLE)

15420-333-000

Unavailable

COLLAR, OIL FILTER BOLT (NOT AVAILABLE)

15423-333-000

Unavailable

VALVE, CHECK

15473-300-300

$4.25

SPRING, CHECK VALVE

15474-300-310

$4.89

PIN, SPRING SETTING

15477-300-300

$3.56

CLAMP, CABLE (NOT AVAILABLE)

32111-300-000

Unavailable

O-RING (15X2.5)

91302-377-000

$5.31

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$5.31

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

O-RING (89X4.5)

91316-425-003

$4.45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
