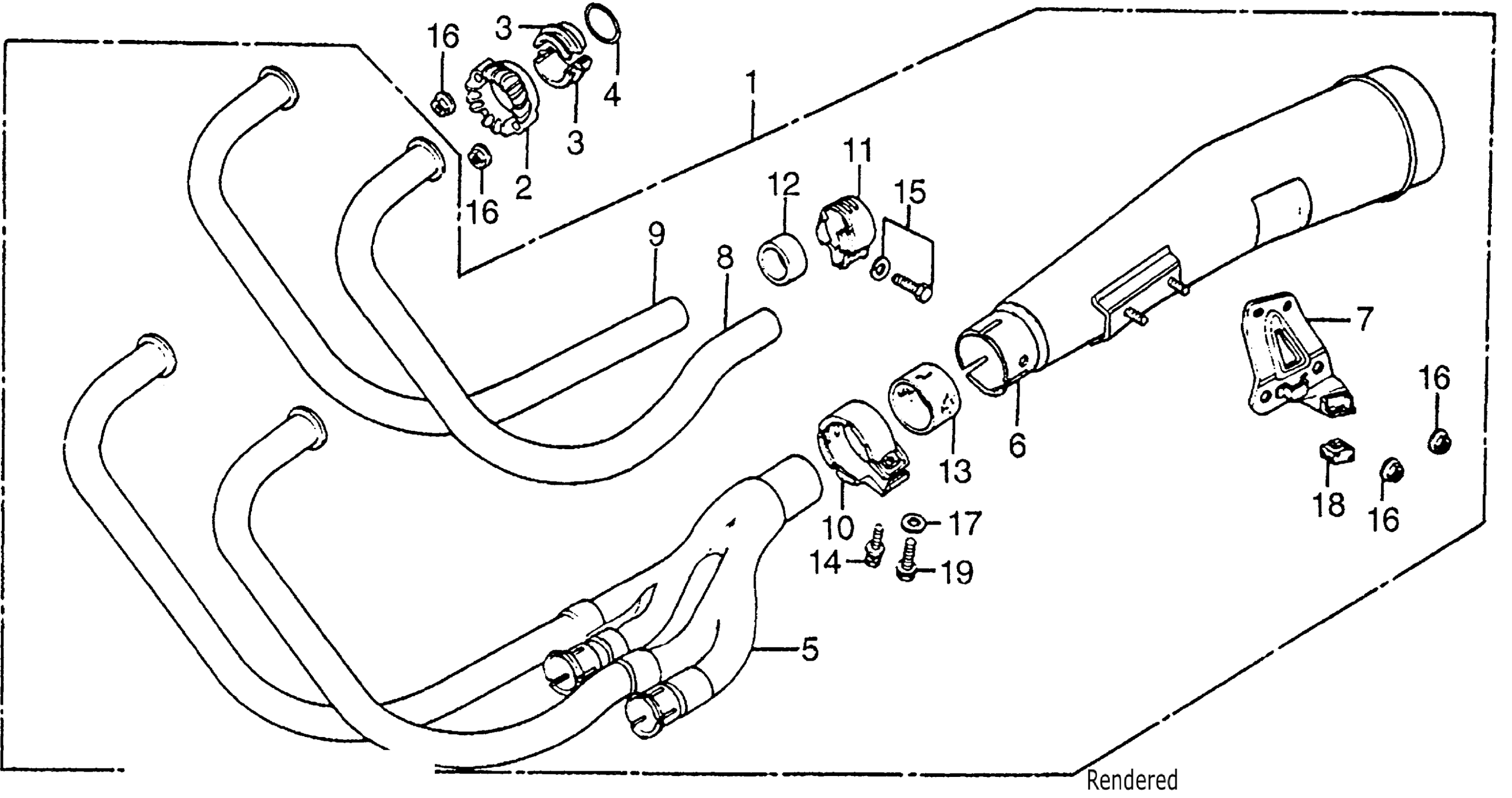

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSY., EX. (NOT AVAILABLE) This part replaces 18200-410-770.

18200-410-777

Unavailable

1

MUFFLER ASSY., EX. (NOT AVAILABLE)

18200-410-777

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-392-000

Unavailable

3

COLLAR, EX. PIPE JOINT

18233-392-000

Unavailable

4

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

5

PIPE, EX. (NOT AVAILABLE) | Use up to Frame SN 2212370 This part replaces 18300-410-003.

18300-410-771

Unavailable

5

PIPE, EX. (NOT AVAILABLE) | Use from Frame SN 2212371

18300-410-771

Unavailable

6

MUFFLER (NOT AVAILABLE) This part replaces 18310-410-671.

18310-410-677

Unavailable

6

MUFFLER (NOT AVAILABLE)

18310-410-677

Unavailable

7

BRACKET, MUFFLER (NOT AVAILABLE)

18312-410-770

Unavailable

8

PIPE 1, EX. | Use up to Frame SN 2210163 This part replaces 18331-410-003.

18331-410-770

Unavailable

8

PIPE 1, EX. | Use from Frame SN 2210164

18331-410-770

Unavailable

9

PIPE 3, EX. (NOT AVAILABLE) | Use up to Frame SN 2210163

18361-410-003

Unavailable

9

PIPE 3, EX. (NOT AVAILABLE) | Use from Frame SN 2210164

18361-410-770

Unavailable

10

BAND, MUFFLER (NOT AVAILABLE)

18371-410-000

Unavailable

11

BAND, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN 2212370 This part replaces 18372-410-000.

18372-410-010

Unavailable

11

BAND, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 2212371

18372-410-010

Unavailable

12

GASKET, MUFFLER | Use up to Frame SN 2208240

18391-MN5-650

$20.61

12

GASKET, MUFFLER | Use up to Frame SN 2208240 This part replaces 18391-310-000.

18391-MN5-650

$20.61

12

GASKET, MUFFLER | Use up to Frame SN 2208240 This part replaces 18391-310-306.

18391-MN5-650

$20.61

12

GASKET, MUFFLER | Use from Frame SN 2208241 This part replaces 18391-410-000.

18391-410-306

Unavailable

12

GASKET, MUFFLER | Use from Frame SN 2208241

18391-410-306

Unavailable

13

GASKET, MUFFLER This part replaces 18391-390-000.

18391-390-405

Unavailable

14

BOLT, MUFFLER SETTING (NOT AVAILABLE)

90105-390-000

Unavailable

15

BOLT-WASHER (8X25)

93481-08025-08

Unavailable

16

NUT, FLANGE (8MM)

94050-08080

$1.49

17

WASHER, PLAIN (8MM) | Use from Frame SN 2208311

94102-08000

$1.49

18

RUBBER A, STAND STOPPER

95011-61000

$1.49

19

BOLT, FLANGE (8X25) | Use from Frame SN 2208311

95701-08025-00

$1.79

19

BOLT, FLANGE (8X25) | Use from Frame SN 2208311 This part replaces 95800-08025-00.

95701-08025-00

$1.79

19

BOLT, FLANGE (8X25) | Use from Frame SN 2208311 This part replaces 95801-08025-00.

95701-08025-00

$1.79
