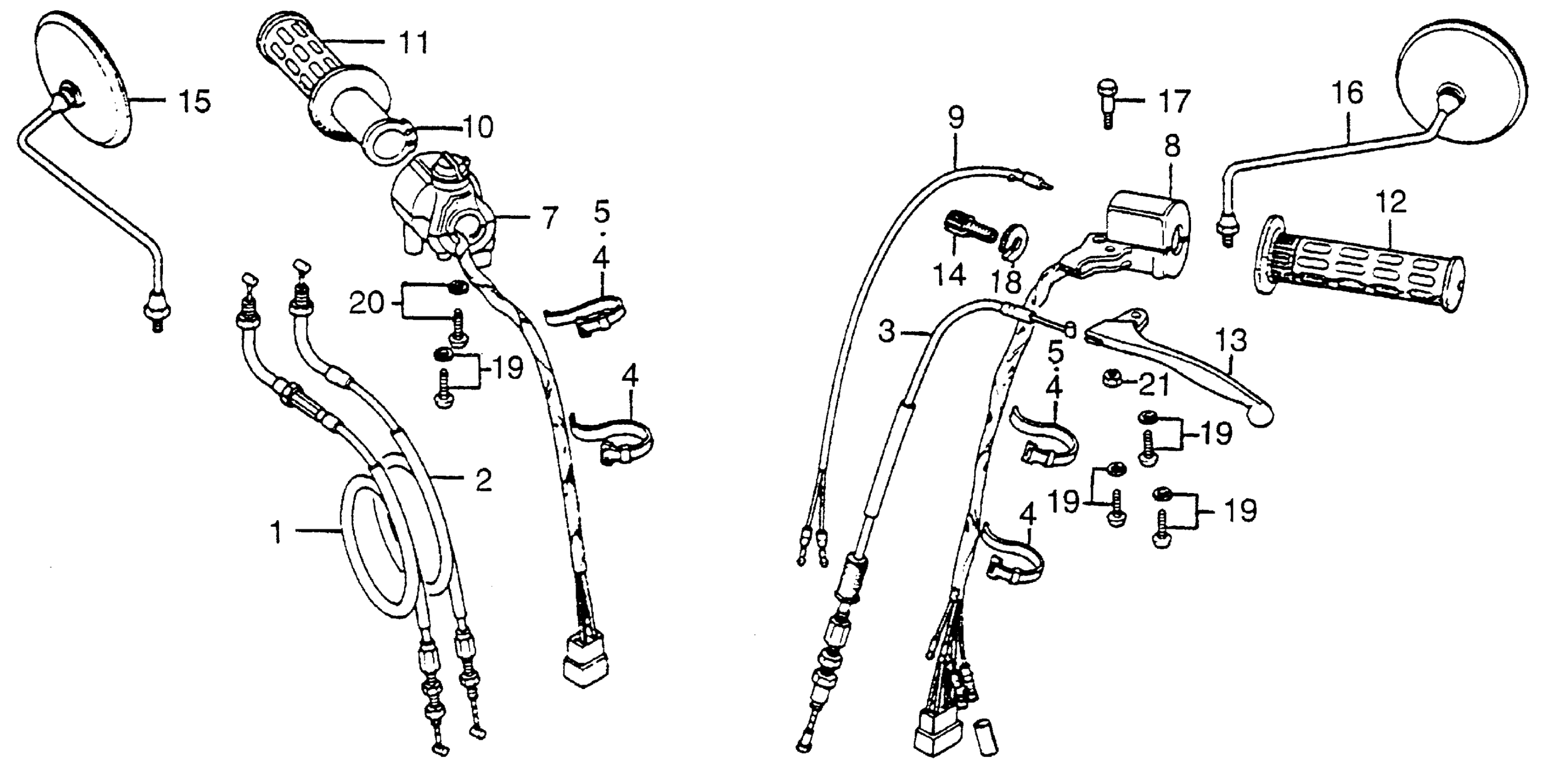

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-393-010

Unavailable

2

CABLE B, THROTTLE

17920-393-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-410-000.

17920-393-000

Unavailable

3

CABLE, CLUTCH

22870-410-000

$34.99

4

BAND B1, CABLE

32161-404-000

$2.13

7

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-404-671

Unavailable

8

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35200-410-671

Unavailable

9

SWITCH ASSY., FR. STOP This part replaces 35360-341-000.

35340-329-003

$15.68

10

PIPE, THROTTLE GRIP

53141-300-010

$18.79

11

GRIP, R. HANDLEBAR

53165-390-780

$9.85

12

GRIP, L. HANDLEBAR

53166-390-780

$9.48

13

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

13

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

13

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

14

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

15

MIRROR, R.

88110-333-611

$33.36

16

MIRROR, L.

88120-333-611

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.56

18

NUT, FIXING

90321-315-670

$6.80

18

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

19

SCREW-WASHER (5X25)

93892-05025-00

$0.93

20

SCREW-WASHER (5X32)

93892-05032-00

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM)

94001-06200-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19
