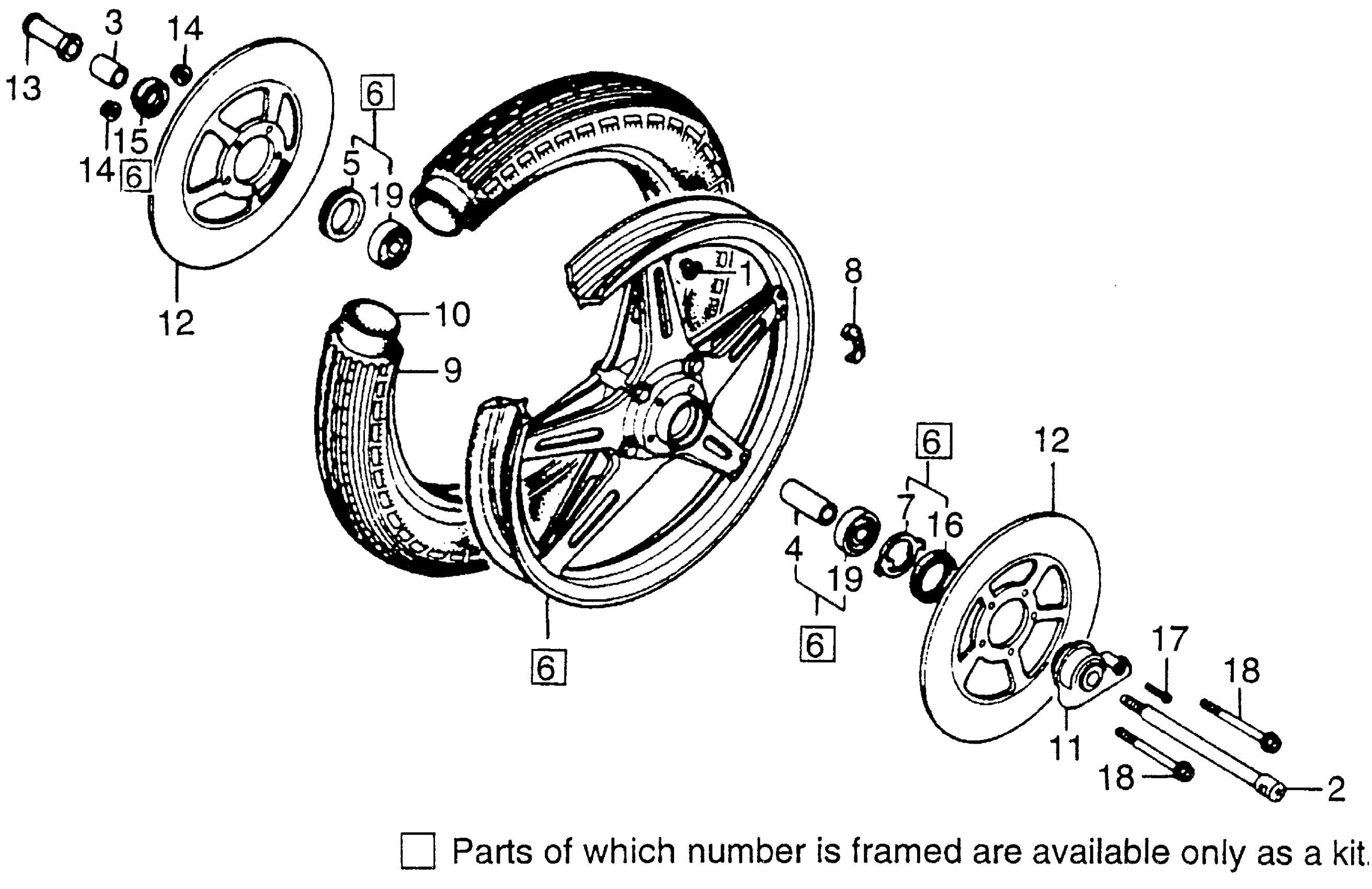

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 FRONT WHEEL + DISC Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-393-000.

44301-425-870

Unavailable

2

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-422-000.

44301-425-870

Unavailable

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-425-870

Unavailable

3

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-410-000.

44311-425-870

Unavailable

4

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

5

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

6

WHEEL SUB-ASSY., FR. (NOT AVAILABLE)

44660-410-670

Unavailable

7

RETAINER, GEAR BOX

44680-410-000

$5.80

8

MARK, FR. SPOKE PLATE (NOT AVAILABLE)

44703-410-003

Unavailable

9

TIRE, FR. (3.25H19) (BS) (NOT AVAILABLE)

44711-341-003

Unavailable

10

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

10

TUBE, TIRE (3.50-19) (BS) This part replaces 08400-37110.

44712-371-003

Unavailable

10

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

10

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

10

TUBE, TIRE (3.50-19) (BS) This part replaces 44712-300-003.

44712-371-003

Unavailable

10

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

10

TUBE, TIRE (3.50-19) (BS)

44712-371-003

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-410-003.

44800-425-013

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-425-003.

44800-425-013

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR

44800-425-013

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45251-410-000.

45251-410-305

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-410-305

Unavailable

13

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

13

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

DUST SEAL (22X36X8)

91252-300-003

$10.73

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

18

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95812-08100-00

Unavailable

19

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

19

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
