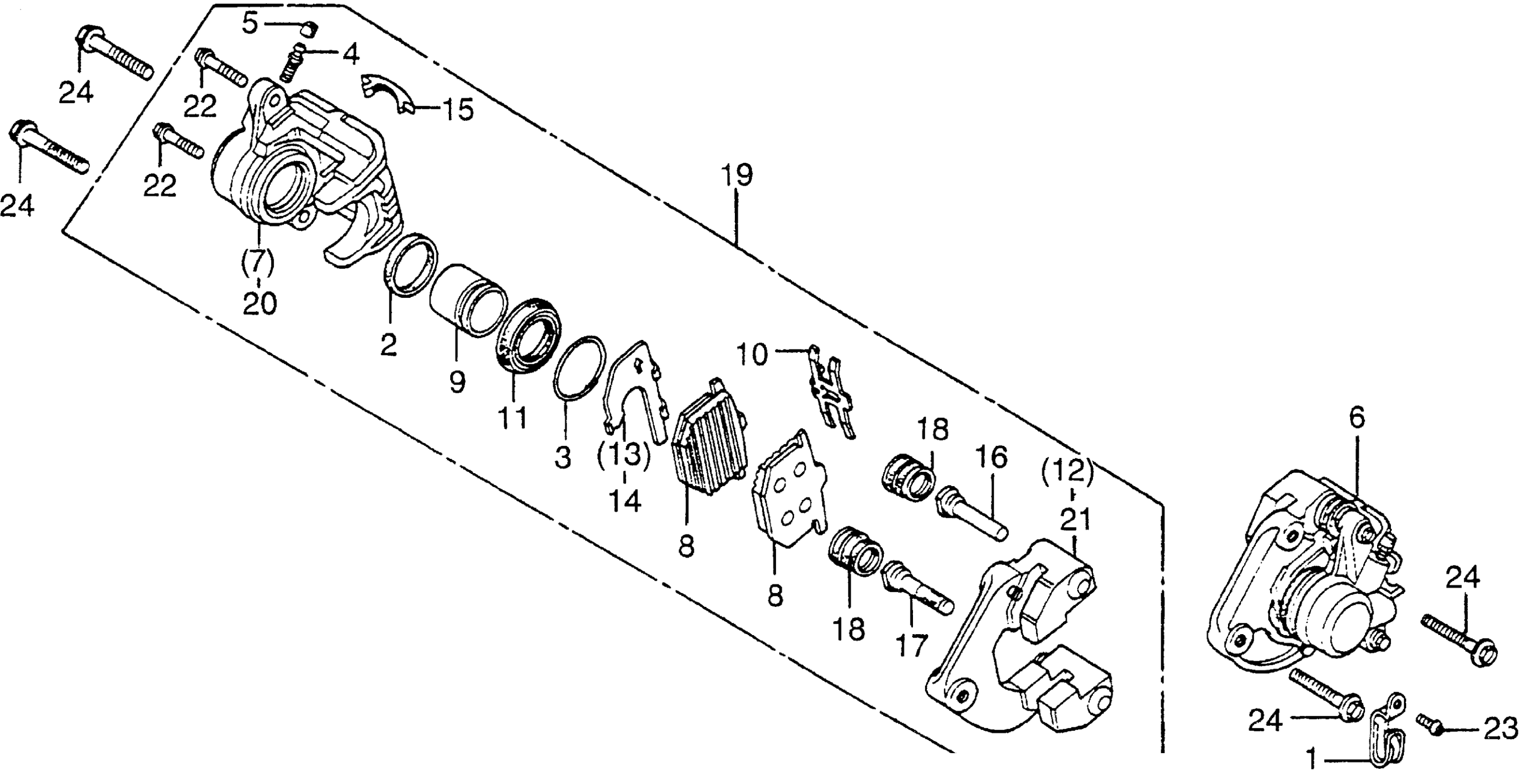

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

CLIP, CABLE

32906-049-000

Unavailable

2

SEAL, PISTON (38MM)

43209-371-006

$10.85

3

CLIP, DUST COVER

43218-371-006

$13.86

4

SCREW, BLEEDER

43352-568-003

$7.95

5

CAP, BLEEDER SCREW

43353-548-003

$4.93

6

CALIPER ASSY., L. FR. (NISSHIN) (NOT AVAILABLE) This part replaces 45100-410-006.

45100-410-016

Unavailable

6

CALIPER ASSY., L. FR. (NISSHIN) (NOT AVAILABLE)

45100-410-016

Unavailable

7

CALIPER, L. (NOT AVAILABLE) This part replaces 45101-410-006.

45101-442-701

Unavailable

8

PAD COMP | Use up to Frame SN 2206700 This part replaces 45105-410-006.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-004.

45105-410-005

Unavailable

8

PAD COMP | Use up to Frame SN 2206700 This part replaces 45105-410-004.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-007.

45105-410-005

Unavailable

8

PAD COMP | Use up to Frame SN 2206700 This part replaces 45105-410-007.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-016.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-026.

45105-410-005

Unavailable

8

PAD COMP This part replaces 45105-410-305.

45105-410-005

Unavailable

8

PAD COMP | Use up to Frame SN 2206700 This part replaces 45105-410-305.

45105-410-005

Unavailable

9

PISTON (NISSHIN)

45107-410-006

Unavailable

10

SPRING, PAD (NISSHIN)

45108-410-006

Unavailable

11

BOOT, PISTON

45109-371-006

$26.38

12

BRACKET, L. FR. (NISSHIN) (NOT AVAILABLE)

45110-410-006

Unavailable

13

SHIM A, PAD

45114-371-006

Unavailable

14

SHIM B, PAD

45116-371-006

Unavailable

15

CAP, INDICATOR

45119-371-000

Unavailable

16

PIN A (NISSHIN)

45131-410-006

Unavailable

17

PIN B (NISSHIN)

45132-410-006

Unavailable

18

COVER, DUST

45133-371-006

$7.68

19

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE) This part replaces 45200-410-006.

45200-410-016

Unavailable

19

CALIPER ASSY., R. FR. (NISSHIN) (NOT AVAILABLE)

45200-410-016

Unavailable

20

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-410-006.

45201-442-701

Unavailable

20

CALIPER, R. (NOT AVAILABLE)

45201-442-701

Unavailable

21

BRACKET, R. FR. (NOT AVAILABLE)

45210-410-006

Unavailable

22

BOLT (8X25)

90116-410-006

$6.07

23

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

23

SCREW, PAN (6X8)

93500-06008

$1.49

23

SCREW, PAN (6X8)

93500-06008-0A

$1.49

23

SCREW, PAN (6X8)

93500-06008-0H

$1.49

23

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

24

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

24

BOLT, FLANGE (10X32)

95801-10032-00

$2.31
