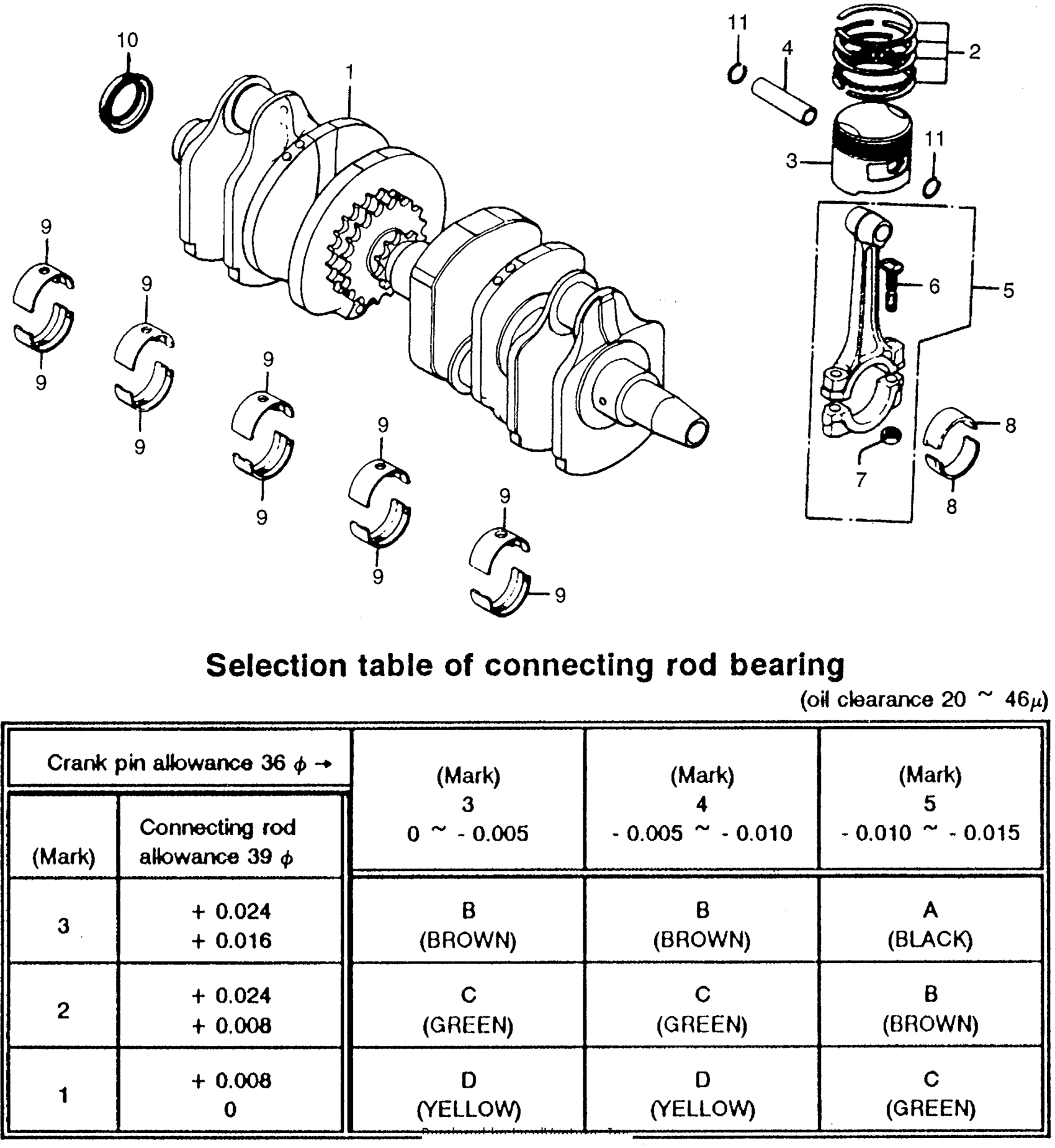

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-300-050

Unavailable

2

RING SET, PISTON (STD) (NIPPON) (NOT AVAILABLE)

13011-410-601

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) (NOT AVAILABLE) | (Optional).

13021-410-601

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) (NOT AVAILABLE) | (Optional).

13031-410-601

Unavailable

2

RING SET, PISTON (0.75) (NIPPON) | (Optional).

13041-410-601

Unavailable

2

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional).

13051-410-601

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-410-003

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-410-003

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-410-003

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-410-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-410-003

Unavailable

4

PIN, PISTON

13111-300-000

$15.82

5

ROD B, CONNECTING (NOT AVAILABLE)

13202-410-000

Unavailable

5

ROD D, CONNECTING

13204-410-000

Unavailable

5

ROD F, CONNECTING (NOT AVAILABLE)

13206-410-000

Unavailable

5

ROD H, CONNECTING (NOT AVAILABLE)

13208-410-000

Unavailable

5

ROD K, CONNECTING (NOT AVAILABLE)

13210-410-000

Unavailable

6

BOLT, CONNECTING ROD

13213-KV0-000

$5.90

6

BOLT, CONNECTING ROD This part replaces 13213-410-003.

13213-KV0-000

$5.90

7

NUT, CONNECTING ROD

13214-410-003

$3.78

8

BEARING B, CONNECTING ROD (BLACK) (TAIHO) This part replaces 13215-410-015.

13215-413-015

$16.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO) This part replaces 13216-410-015.

13216-413-015

$16.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO)

13216-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO) This part replaces 13217-410-015.

13217-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO)

13217-413-015

$16.52

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO) This part replaces 13218-410-015.

13218-413-015

$17.31

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO)

13218-413-015

$17.31

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO) This part replaces 13315-300-013.

13315-425-003

$18.95

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO) This part replaces 13315-422-003.

13315-425-003

$18.95

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO)

13315-425-003

$18.95

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO)

13316-300-013

$20.10

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO) This part replaces 13316-422-003.

13316-425-003

$18.95

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO)

13316-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO) This part replaces 13317-300-013.

13317-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO) This part replaces 13317-422-003.

13317-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO)

13317-425-003

$18.95

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO) This part replaces 13318-300-013.

13318-425-003

$21.05

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO) This part replaces 13318-422-003.

13318-425-003

$21.05

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO)

13318-425-003

$21.05

10

OIL SEAL (30X42X8)

91201-300-003

$12.99

11

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
