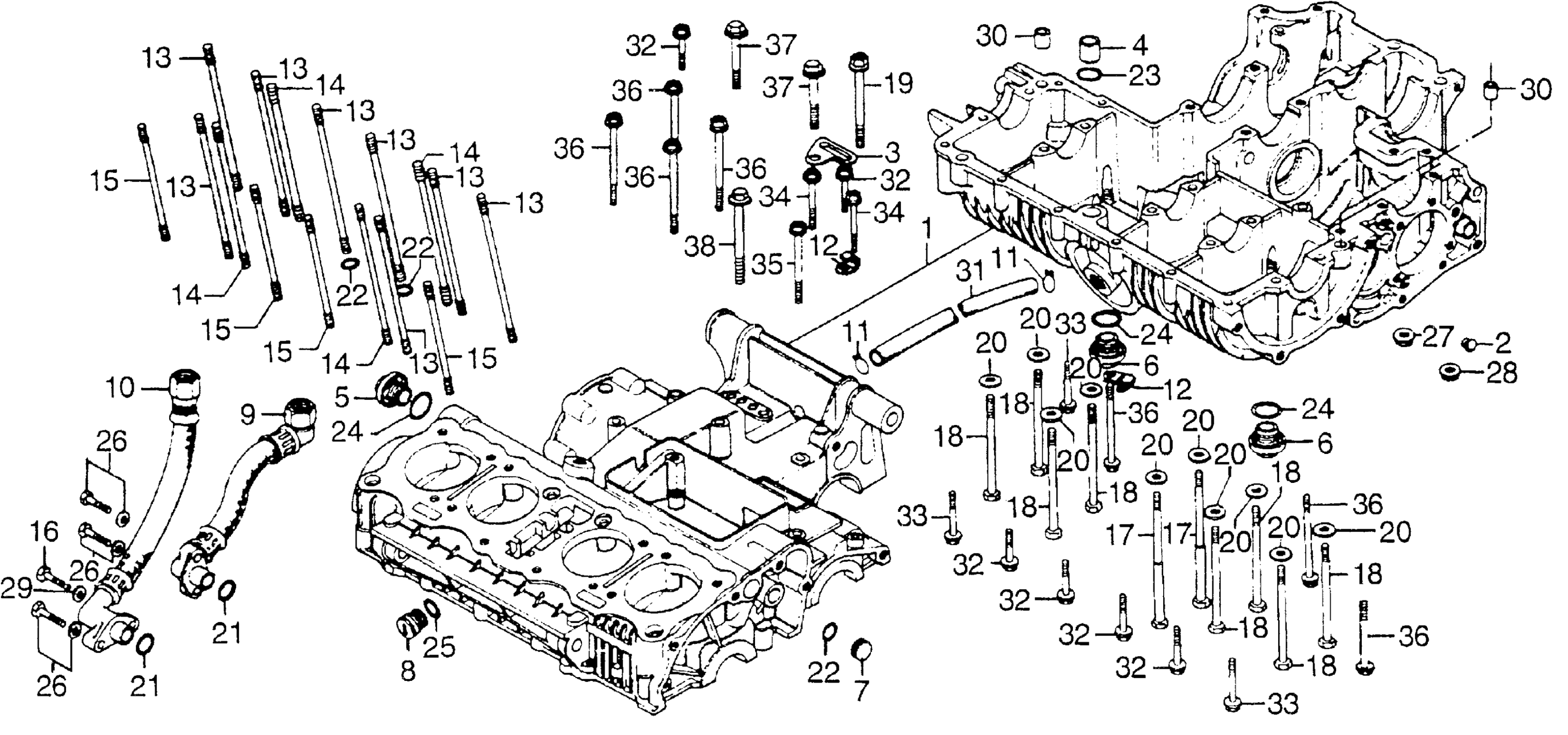

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Use up to Engine SN 3113260 This part replaces 11000-410-000.

11000-410-010

Unavailable

1

CRANKCASE SET

11000-410-010

Unavailable

1

CRANKCASE SET | Use up to Engine SN 3113260

11000-410-010

Unavailable

2

PLUG, SEALING RUBBER (8.5MM) (NOT AVAILABLE)

11209-300-000

Unavailable

3

GUIDE, OVERFLOW (NOT AVAILABLE)

11355-300-000

Unavailable

4

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

5

CAP, OIL PASSAGE

15331-300-000

Unavailable

6

CAP B, OIL PASSAGE (NOT AVAILABLE)

15332-300-000

Unavailable

7

PLUG, OIL PASSAGE (NOT AVAILABLE)

15336-300-010

Unavailable

8

PLUG, OIL TUBE

15337-300-010

Unavailable

9

HOSE A, OIL (NOT AVAILABLE)

15510-300-017

Unavailable

10

HOSE B, OIL (NOT AVAILABLE)

15520-392-020

Unavailable

11

CLIP, BREATHER TUBE

15772-551-000

$1.84

11

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.19

12

CLAMP, CABLE

32111-323-000

$3.80

13

BOLT A, CYLINDER STUD

90033-300-030

Unavailable

13

BOLT A, CYLINDER STUD This part replaces 90033-300-040.

90033-300-030

Unavailable

14

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90033-410-000

Unavailable

15

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.

90034-300-040

Unavailable

15

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-300-040

Unavailable

16

BOLT-WASHER (6X25) This part replaces 90040-300-000.

93401-06025-00

$0.85

16

BOLT-WASHER (6X25)

93401-06025-00

$0.85

16

BOLT-WASHER (6X25) This part replaces 93481-06025.

93401-06025-00

$0.85

16

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$0.85

17

BOLT, HEX. (8X140) (NOT AVAILABLE)

90041-300-000

Unavailable

18

BOLT, HEX. (8X120) This part replaces 90042-300-000.

92101-08120-0H

Unavailable

18

BOLT, HEX. (8X120)

92101-08120-0H

Unavailable

19

BOLT, HEX. (10X82) (NOT AVAILABLE)

90048-300-000

Unavailable

20

WASHER, THRUST (14MM)

90485-035-000

$2.72

21

O-RING (15X2.5)

91301-MY9-003

$2.21

21

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.21

22

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$4.95

22

O-RING (11X2.5)

91310-426-000

$4.95

22

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$4.95

23

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

23

O-RING (18X3)

91307-035-000

$2.75

23

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.75

24

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

Unavailable

24

O-RING (19.4X2.8)

94608-40000

Unavailable

25

O-RING (13X2.5)

91319-300-000

$4.84

26

BOLT-WASHER (6X25)

93401-06025-00

$0.85

26

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$0.85

27

NUT, FLANGE (8MM)

94050-08000

$0.87

28

NUT, FLANGE (10MM)

94050-10000

$1.66

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM)

94101-06800

Unavailable

30

PIN A, DOWEL (10X16)

94301-10160

$2.80

31

BULK HOSE, VACUUM (12X1000) (12X150)

95005-12001-20M

Unavailable

32

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.88

32

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

33

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.75

33

BOLT, FLANGE (6X50)

95701-06050-00

$2.75

34

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.75

34

BOLT, FLANGE (6X55)

95701-06055-00

$2.75

35

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.87

35

BOLT, FLANGE (6X80)

95701-06080-00

$2.87

36

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.80

36

BOLT, FLANGE (6X100)

95701-06100-00

$2.80

37

BOLT, FLANGE (8X55) This part replaces 95700-08055-00.

95701-08055-00

$2.80

37

BOLT, FLANGE (8X55)

95701-08055-00

$2.80

38

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.59

38

BOLT, FLANGE (8X80)

95701-08080-00

$1.59
