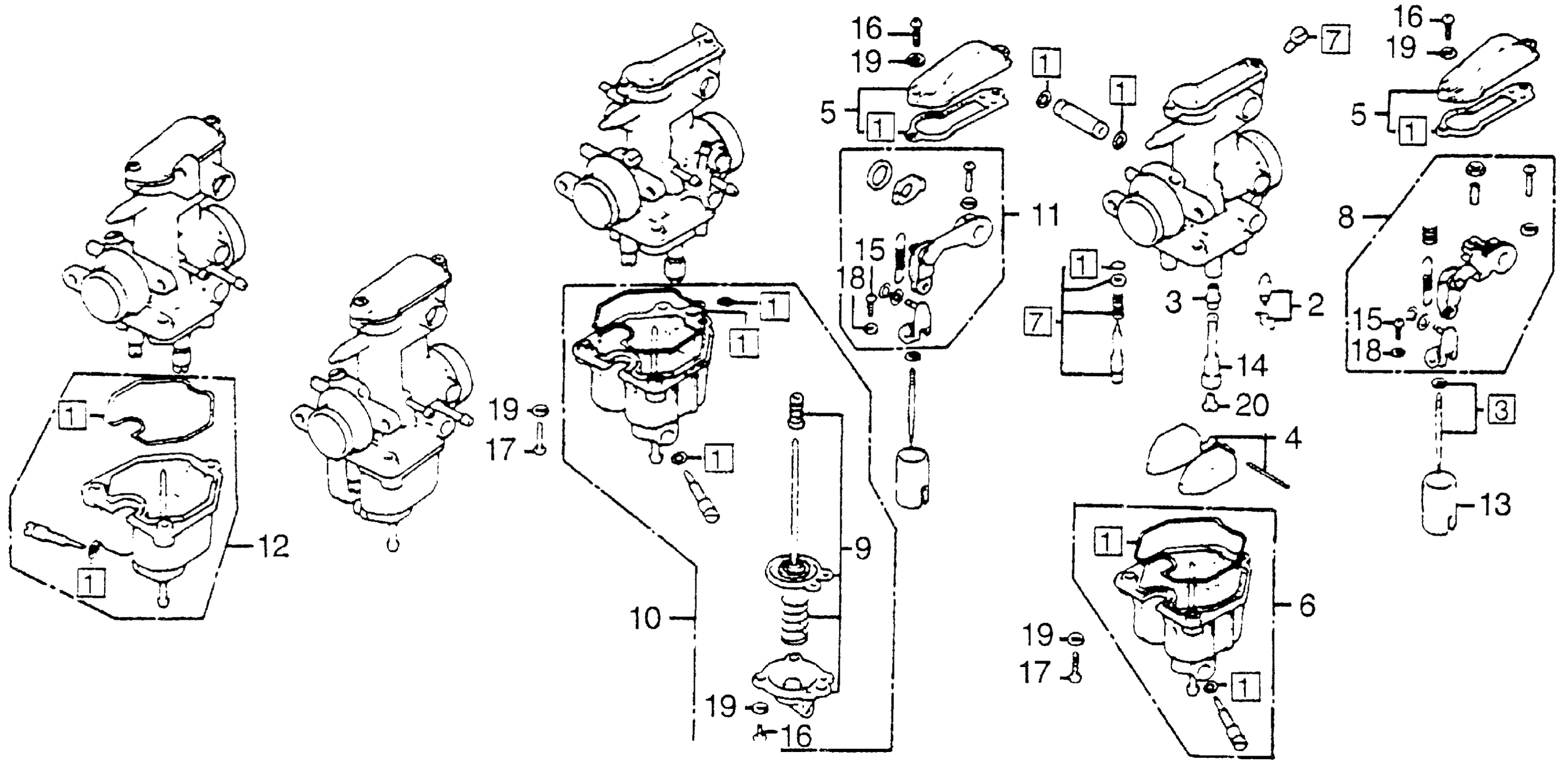

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET

16010-405-004

$27.61

2

VALVE SET, FLOAT | Use up to Engine SN PD42A A This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN PD42A A This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use from Engine SN PD42A B This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN PD42A A This part replaces 16011-393-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-410-601

Unavailable

4

FLOAT SET

16013-KCY-670

$64.31

4

FLOAT SET This part replaces 16013-393-004.

16013-KCY-670

$64.31

5

TOP SET

16014-KCE-771

Unavailable

5

TOP SET This part replaces 16014-KR6-004.

16014-KCE-771

Unavailable

5

TOP SET This part replaces 16014-385-680.

16014-KCE-771

Unavailable

6

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-393-004.

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

7

SCREW SET A

16016-410-601

Unavailable

8

ARM SET A, LINK (NOT AVAILABLE)

16018-410-004

Unavailable

9

DIAPHRAGM SET, PUMP

16021-393-004

Unavailable

10

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-393-014.

16023-393-004

Unavailable

11

ARM SET B, LINK (NOT AVAILABLE)

16031-393-014

Unavailable

12

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

12

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

12

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

13

VALVE, THROTTLE

16111-410-004

Unavailable

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-410-004

Unavailable

15

SCREW, PAN (3X8)

93500-03008-0H

$1.49

16

SCREW, PAN (4X12)

93500-04012-0H

$1.49

17

SCREW, PAN (4X16)

93500-04016-0H

$1.49

18

WASHER, SPRING (3MM)

94111-03800

$1.49

19

WASHER, SPRING (4MM)

94111-04800

$1.49

20

JET, MAIN (#105)

99101-GHB-1050

$6.40

20

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40
