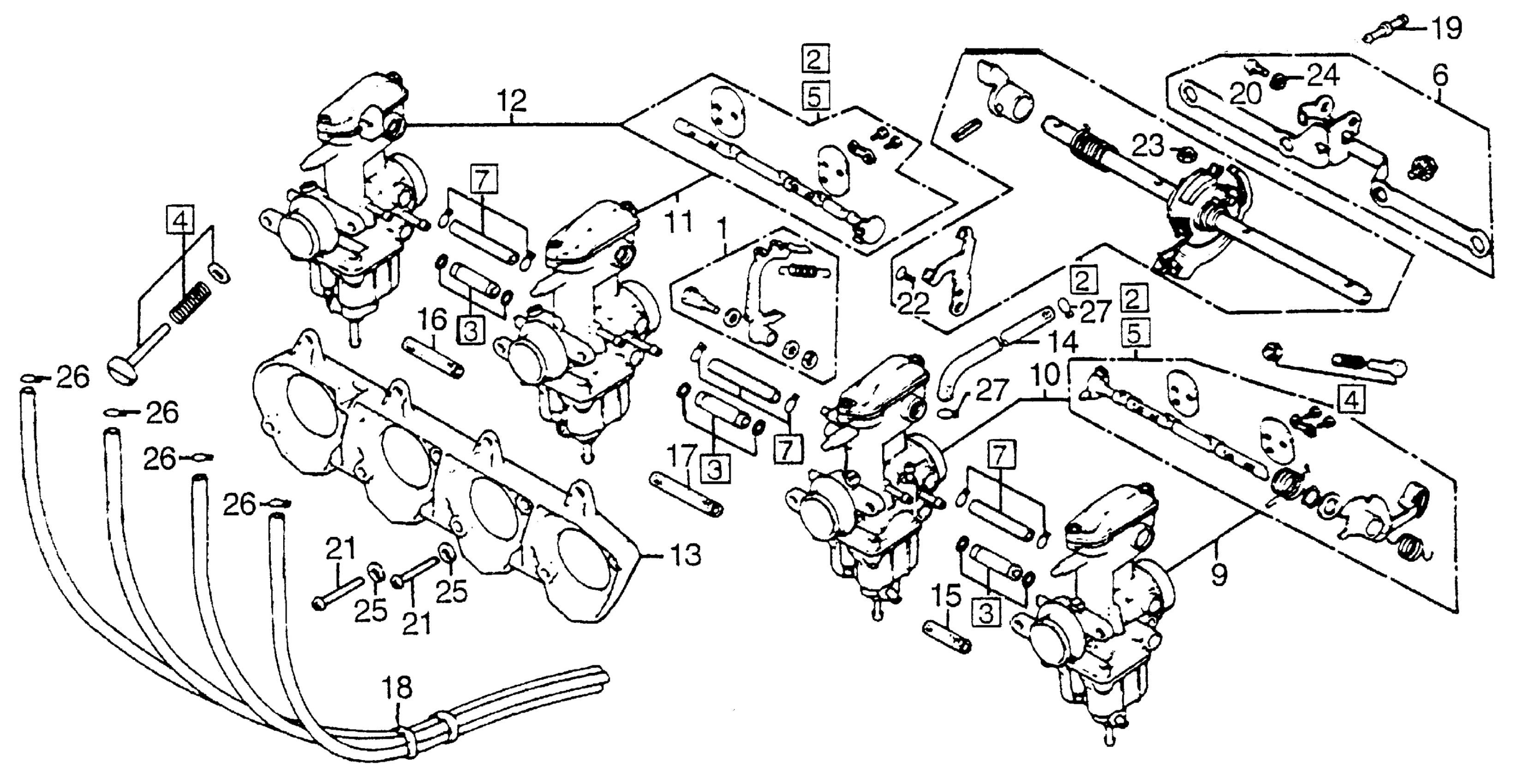

Honda CB750FA (78) 750 SUPER SPORT, JPN, VIN# CB750F-2200001 CARB. (ASSY., LINK) Diagram

#

Description
Price

1

LINK SET, PUMP (NOT AVAILABLE)

16017-410-004

Unavailable

2

LINK SET, CHOKE (NOT AVAILABLE)

16025-410-315

Unavailable

3

JOINT SET, FUEL (NOT AVAILABLE)

16026-393-004

Unavailable

4

SCREW SET B (NOT AVAILABLE)

16028-393-014

Unavailable

5

LINK SET, THROTTLE (NOT AVAILABLE)

16032-405-405

Unavailable

6

PLATE SET, RR. STAY (NOT AVAILABLE)

16035-393-004

Unavailable

7

TUBE SET, PUMP (NOT AVAILABLE)

16048-393-004

Unavailable

9

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use up to Engine SN PD42A A This part replaces 16101-410-405.

16101-410-425

Unavailable

9

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use up to Engine SN PD42A A

16101-410-425

Unavailable

10

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use up to Engine SN PD42A A This part replaces 16102-410-405.

16102-410-425

Unavailable

10

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use up to Engine SN PD42A A

16102-410-425

Unavailable

11

CARBURETOR ASSY. 3 | Use up to Engine SN PD42A A This part replaces 16103-410-405.

16103-410-425

Unavailable

11

CARBURETOR ASSY. 3 | Use up to Engine SN PD42A A

16103-410-425

Unavailable

11

CARBURETOR ASSY. 3 | Use from Engine SN PD42A B

16103-410-425

Unavailable

12

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use up to Engine SN PD42A A This part replaces 16104-410-405.

16104-410-425

Unavailable

12

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use up to Engine SN PD42A A

16104-410-425

Unavailable

13

PLATE, STAY

16119-393-004

Unavailable

14

TUBE, AIR VENT (4.5X6X120) (NOT AVAILABLE)

16143-393-600

Unavailable

15

TUBE, AIR VENT This part replaces 16195-393-600.

16199-428-405

$3.10

15

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

16

TUBE, AIR VENT JOINT (4.5X6X34) (NOT AVAILABLE)

16198-393-600

Unavailable

17

PIPE, RUBBER (NOT AVAILABLE)

16199-393-600

Unavailable

18

TUBE ASSY., OVERFLOW (NOT AVAILABLE)

16290-405-000

Unavailable

19

JOINT, SOLENOID PIPE (TOYO) (NOT AVAILABLE)

36163-393-013

Unavailable

20

SCREW, PAN (4X8)

93500-04008-0H

$1.49

21

SCREW, PAN (6X20)

93500-06020-0H

$1.49

22

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

23

NUT, HEX. (6MM)

94001-06080-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

24

WASHER, SPRING (4MM)

94111-04800

$1.49

25

WASHER, SPRING (6MM)

94111-06800

$1.49

26

CLIP, TUBE (B7)

95002-02070

$1.80

27

CLIP, TUBE (B8)

95002-02080

$1.80
