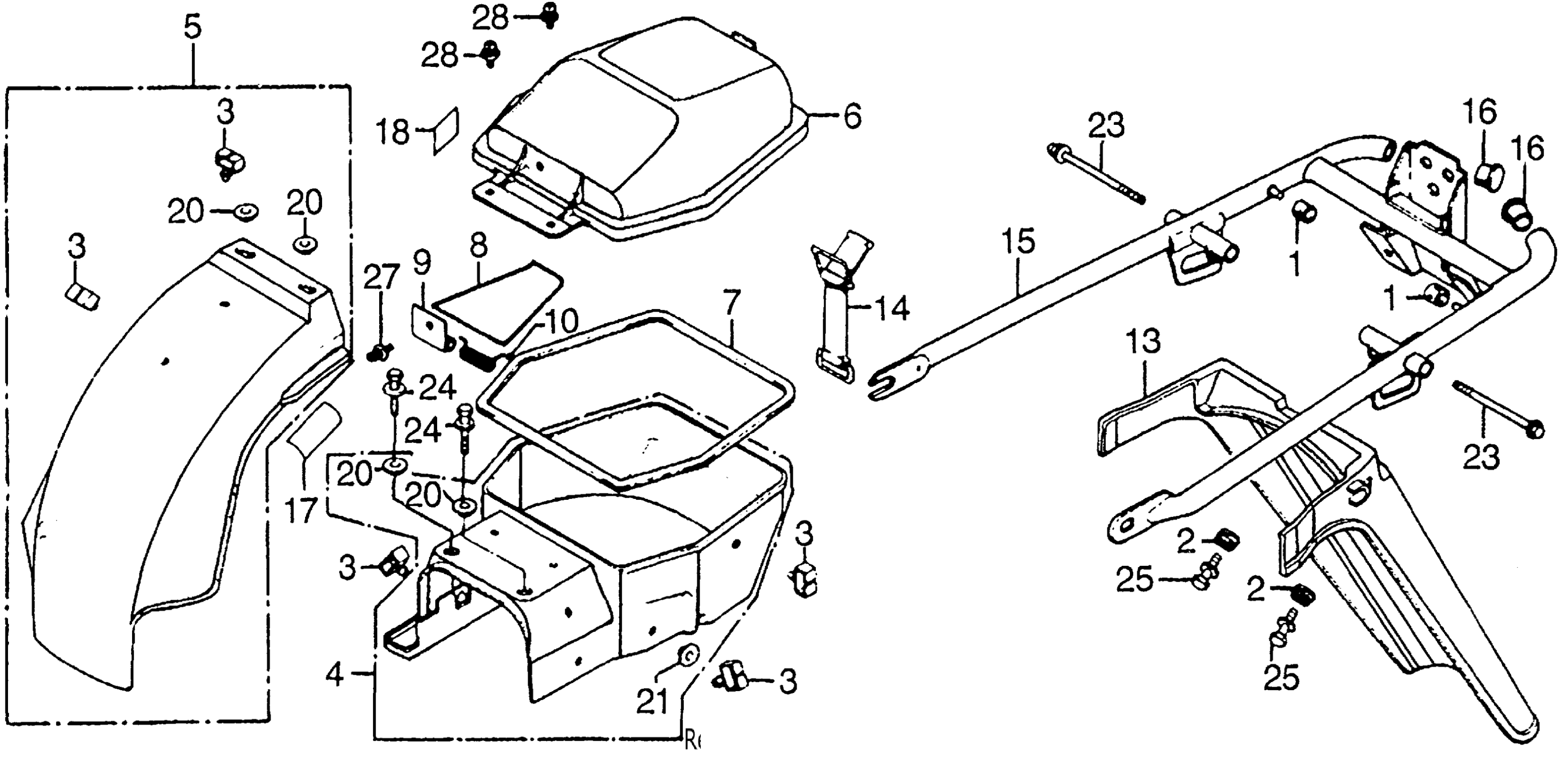

Honda CB750FA (77) 750 SUPER SPORT, JPN, VIN# CB750F-2100011 TO CB750F-2111489 REAR FENDER Diagram

#

Description
Price

1

RUBBER, FR. FUEL TANK

17611-045-670

$6.80

2

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

2

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

GROMMET, CABLE

32985-300-000

$3.35

4

FENDER A, RR. (NOT AVAILABLE)

80100-392-000

Unavailable

5

FENDER B, RR. (NOT AVAILABLE)

80105-341-010

Unavailable

6

CAP A, RR. FENDER (NOT AVAILABLE)

80110-392-000

Unavailable

7

RUBBER, RR. FENDER SEAL (NOT AVAILABLE)

80111-392-000

Unavailable

8

BAR, CLAMP (NOT AVAILABLE)

80112-392-000

Unavailable

9

BASE, CLAMP (NOT AVAILABLE)

80113-392-000

Unavailable

10

SPRING, CLAMP RETURN (NOT AVAILABLE)

80114-392-000

Unavailable

13

FENDER C, RR.

80250-410-000

Unavailable

14

BAND, SIDE COVER

83606-356-000

$23.26

15

BUMPER, RR.

84101-410-000

Unavailable

16

CAP, RR. BUMPER

84103-392-000

$3.89

17

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-405-000

Unavailable

18

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

20

WASHER (6X20)

90512-300-000

$3.08

21

WASHER (8X20) (NOT AVAILABLE)

90512-392-000

Unavailable

23

BOLT, CAP (8X85) (NOT AVAILABLE)

92600-08085-0B

Unavailable

24

BOLT-WASHER (6X28)

93401-06028-00

$1.49

24

BOLT-WASHER (6X28) This part replaces 93481-06028-00.

93401-06028-00

$1.49

25

BOLT-WASHER (6X20)

93404-06020-08

$1.62

25

BOLT-WASHER (6X20) This part replaces 93494-06020-08.

93404-06020-08

$1.62

27

SCREW-WASHER (4X8)

93891-04008-07

$1.49

28

SCREW-WASHER (4X16)

93891-04016-07

$1.49
