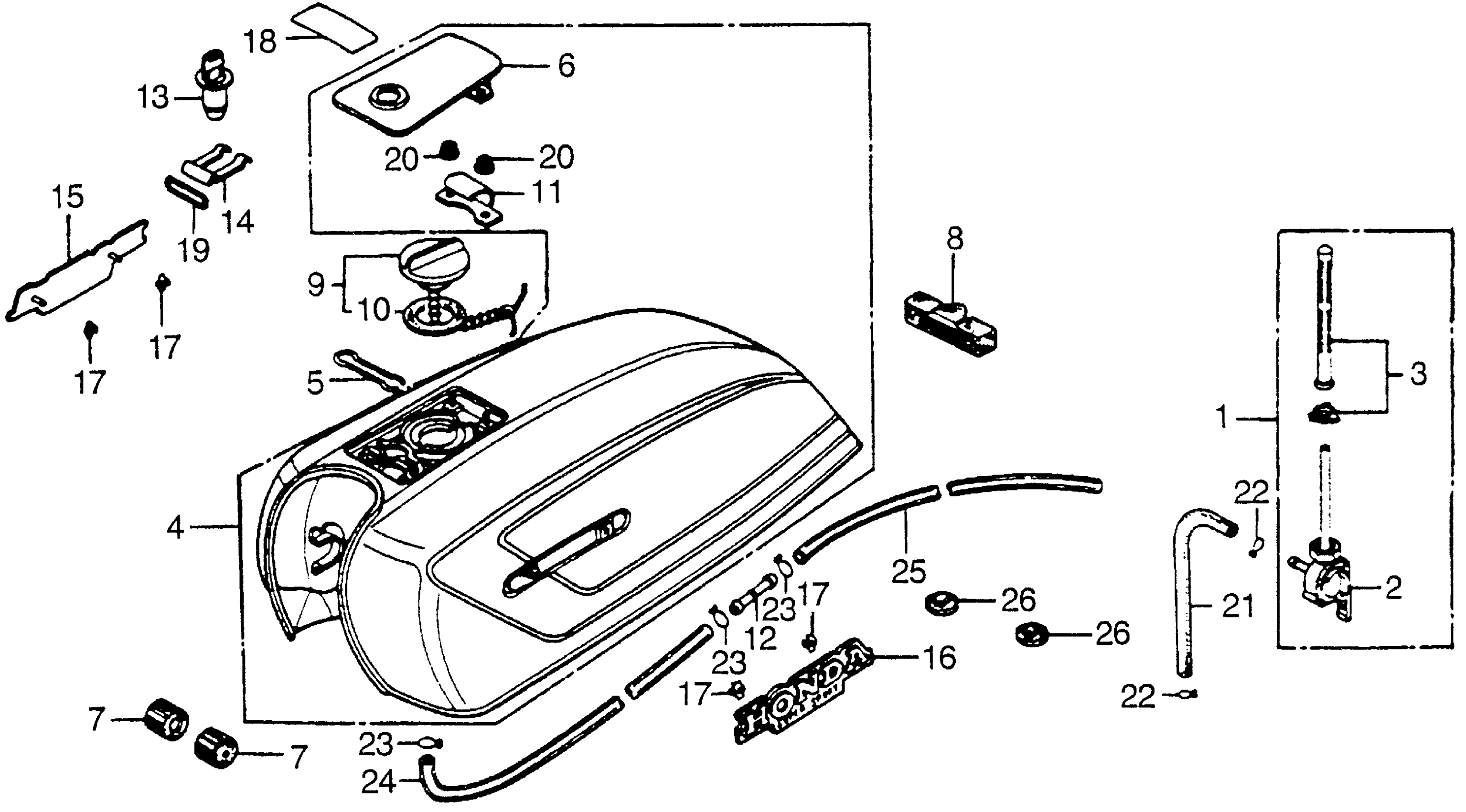

Honda CB750FA (77) 750 SUPER SPORT, JPN, VIN# CB750F-2100011 TO CB750F-2111489 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-410-005.

16950-410-015

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-410-015

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE) This part replaces 16951-410-005.

16951-410-015

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-410-015

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-388-005.

16952-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-388-015

Unavailable

4

TANK ASSY., FUEL *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

17520-410-315ZA

Unavailable

4

TANK ASSY., FUEL *NH1* (BLACK) (NOT AVAILABLE)

17520-410-315ZC

Unavailable

5

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

6

LID, FUEL TANK *R8CS* (CANDY PRESTO RED)

17531-410-000ZA

Unavailable

6

LID, FUEL TANK *NH1* (BLACK) (NOT AVAILABLE)

17531-410-000ZC

Unavailable

7

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

8

RUBBER, RR. FUEL TANK This part replaces 17613-392-000.

17613-399-000

$23.73

8

RUBBER, RR. FUEL TANK

17613-399-000

$23.73

9

CAP, FUEL TANK This part replaces 17620-377-720.

17620-399-010

Unavailable

9

CAP, FUEL TANK This part replaces 17620-399-000.

17620-399-010

Unavailable

9

CAP, FUEL TANK

17620-399-010

Unavailable

10

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

10

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

11

SPRING, FUEL FILLER LID (NOT AVAILABLE)

17735-390-000

Unavailable

12

JOINT, DRAIN CONNECTING TUBE (NOT AVAILABLE)

17738-393-000

Unavailable

13

LOCK, FILLER LID (HONDALOCK)

37220-390-007

Unavailable

14

SPRING, LOCK SET

37221-390-000

Unavailable

15

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-410-000

Unavailable

16

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-410-000

Unavailable

17

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

17

NUT, EMBLEM CLAMP

87311-634-600

$4.79

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

19

O-RING (23X2)

91354-371-000

$3.19

19

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

BULK HOSE, FUEL (5.5X3000) (5.5X160)

95001-55003-60M

$47.32

22

CLIP, TUBE (B10)

95002-02100

$1.90

23

CLIP, TUBE (B12.5)

95002-02130

$1.49

24

TUBE, VINYL (9X13X550) (NOT AVAILABLE)

95003-27055-31

Unavailable

25

TUBE, VINYL (9X13X670) (NOT AVAILABLE)

95003-27067-31

Unavailable

26

RUBBER C, STAND STOPPER

95011-63000

$3.90
