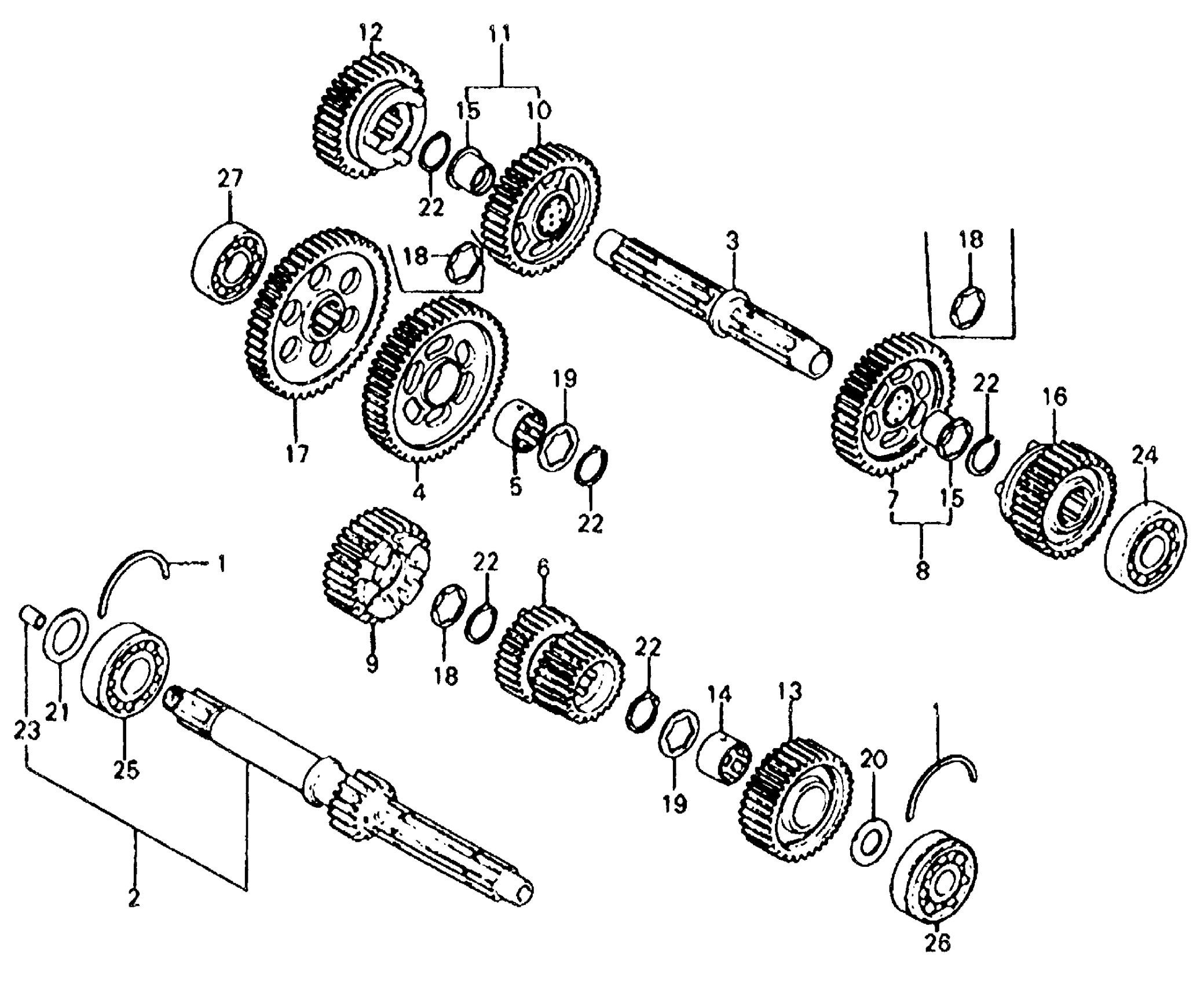

Honda CB750FA (76) 750 SUPER SPORT, JPN, VIN# CB750F-2000003 TO CB750F-2022317 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING (NOT AVAILABLE)

13495-300-000

Unavailable

2

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)

23210-392-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23220-371-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (45T) (NOT AVAILABLE)

23421-300-050

Unavailable

5

BUSH, SPLINE (29MM) (NOT AVAILABLE)

23425-392-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (24T & 27T)

23431-392-000

Unavailable

7

GEAR SET, COUNTERSHAFT SECOND | Use up to Engine SN 2562502 This part replaces 23440-392-000.

23440-410-305

Unavailable

7

GEAR SET, COUNTERSHAFT SECOND | Use up to Engine SN 2562502

23440-410-305

Unavailable

7

GEAR, COUNTERSHAFT SECOND (41T) | Use from Engine SN 2562503

23441-410-000

Unavailable

8

GEAR SET, COUNTERSHAFT SECOND | Use up to Engine SN 2562502

23440-410-305

Unavailable

9

GEAR, MAINSHAFT FOURTH (30T)

23450-392-000

Unavailable

10

GEAR ASSY., COUNTERSHAFT THIRD (36T) | Use up to Engine SN 2562502 This part replaces 23460-392-000.

23460-410-305

Unavailable

10

GEAR ASSY., COUNTERSHAFT THIRD (36T) | Use up to Engine SN 2562502

23460-410-305

Unavailable

10

GEAR, COUNTERSHAFT THIRD (36T) | Use from Engine SN 2562503

23461-410-000

Unavailable

11

GEAR ASSY., COUNTERSHAFT THIRD (36T) | Use up to Engine SN 2562502

23460-410-305

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (34T)

23471-300-010

Unavailable

13

GEAR, MAINSHAFT TOP (33T)

23481-300-020

Unavailable

14

BUSH, SPLINE (28MM) (NOT AVAILABLE)

23485-392-000

Unavailable

15

BUSH (28MM) (NOT AVAILABLE) | Use from Engine SN 2562503

23485-410-003

Unavailable

15

BUSH (28MM) (NOT AVAILABLE) | Use from Engine SN 2562503 This part replaces 23485-410-010.

23485-410-003

Unavailable

16

GEAR, COUNTERSHAFT TOP (32T)

23491-392-000

Unavailable

17

GEAR, FINAL DRIVE (43T) (NOT AVAILABLE)

23501-392-000

Unavailable

18

WASHER, THRUST (25MM) | Use up to Engine SN 2562502

90451-MB2-000

Unavailable

18

WASHER, THRUST (25MM) | Use from Engine SN 2562503

90451-MB2-000

Unavailable

18

WASHER, THRUST (25MM) | Use up to Engine SN 2562502 This part replaces 90451-371-000.

90451-MB2-000

Unavailable

18

WASHER, THRUST (25MM) | Use from Engine SN 2562503 This part replaces 90451-371-000.

90451-MB2-000

Unavailable

19

WASHER, THRUST (25X34)

90452-371-000

$4.82

20

WASHER, THRUST (20MM)

90458-292-000

$3.54

21

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

22

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

23

PLUG, SPECIAL (10X10) (NOT AVAILABLE)

90809-300-300

Unavailable

24

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

24

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

24

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

25

BEARING This part replaces 91002-300-004.

91003-612-004

Unavailable

25

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

26

BEARING, BALL (6304HS)

91003-235-000

Unavailable

27

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

27

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
