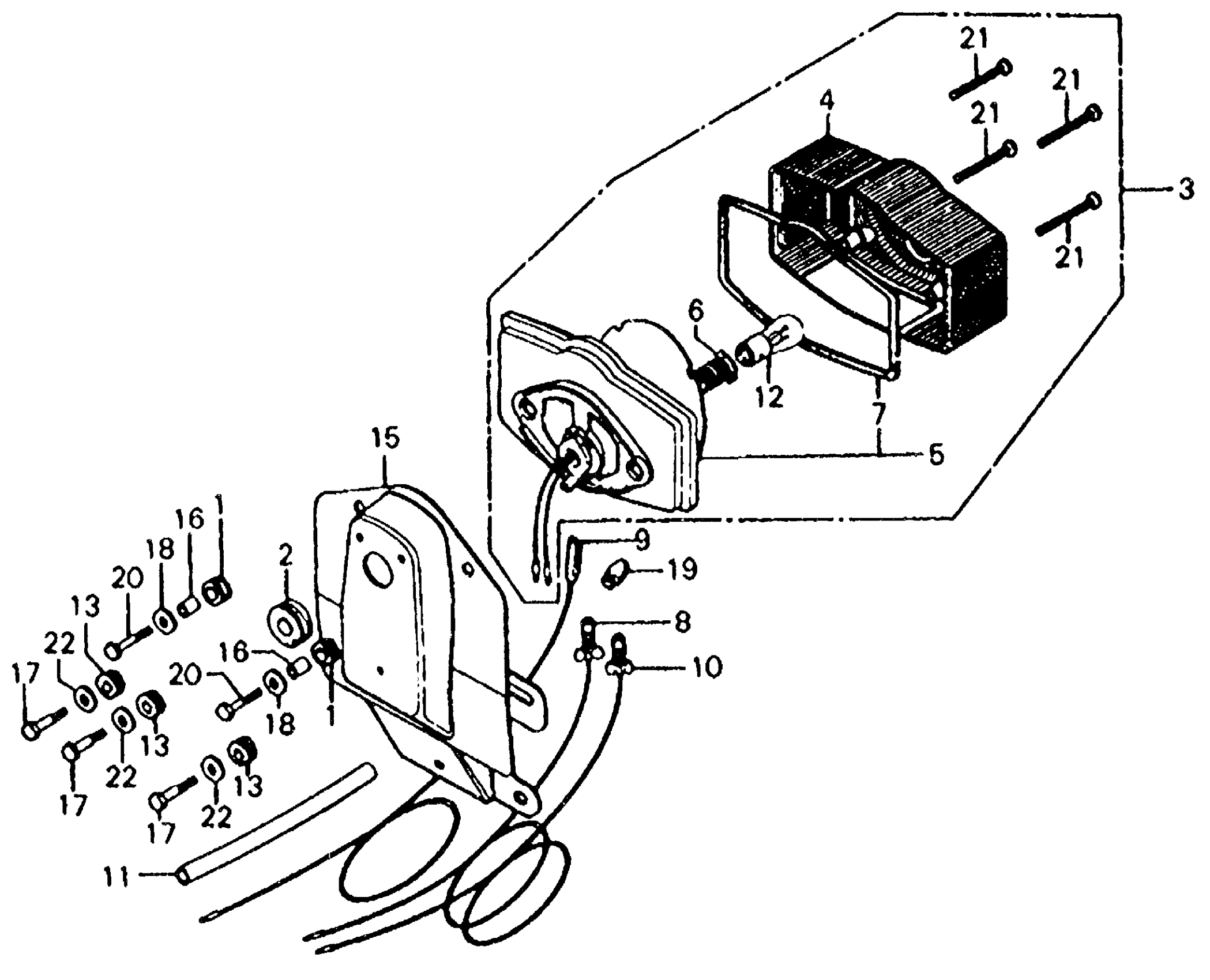

Honda CB750FA (76) 750 SUPER SPORT, JPN, VIN# CB750F-2000003 TO CB750F-2022317 TAILLIGHT Diagram

#

Description
Price

1

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

1

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

2

GROMMET, WIRE HARNESS

32983-028-000

$1.49

3

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE) | Use up to Frame SN 2021927

33701-354-670

Unavailable

3

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE) | Use from Frame SN 2021928

33701-341-910

Unavailable

4

LENS, TAILLIGHT

33702-341-671

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 2021927

33703-354-670

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 2021928

33703-341-900

Unavailable

6

WIRE, TAILLIGHT

33708-098-000

Unavailable

6

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

7

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

8

CABLE, TAILLIGHT SUB (NOT AVAILABLE) This part replaces 33711-300-000.

33711-323-000

Unavailable

8

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-323-000

Unavailable

9

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

10

CABLE, STOP LIGHT SUB (NOT AVAILABLE) This part replaces 33713-300-000.

33713-323-000

Unavailable

10

CABLE, STOP LIGHT SUB (NOT AVAILABLE)

33713-323-000

Unavailable

11

TUBE, WIRE (NOT AVAILABLE)

33720-300-000

Unavailable

12

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

12

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

13

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

15

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-392-670ZA

Unavailable

16

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

17

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

17

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

18

WASHER (20MM)

90581-310-000

$1.90

18

WASHER (20MM) | Use up to Frame SN 2021927 This part replaces 90581-342-000.

90581-310-000

$1.90

19

PLUG, CONE

90899-283-000

$2.56

20

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

21

SCREW, PAN (4X55)

93500-04055-0B

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49
