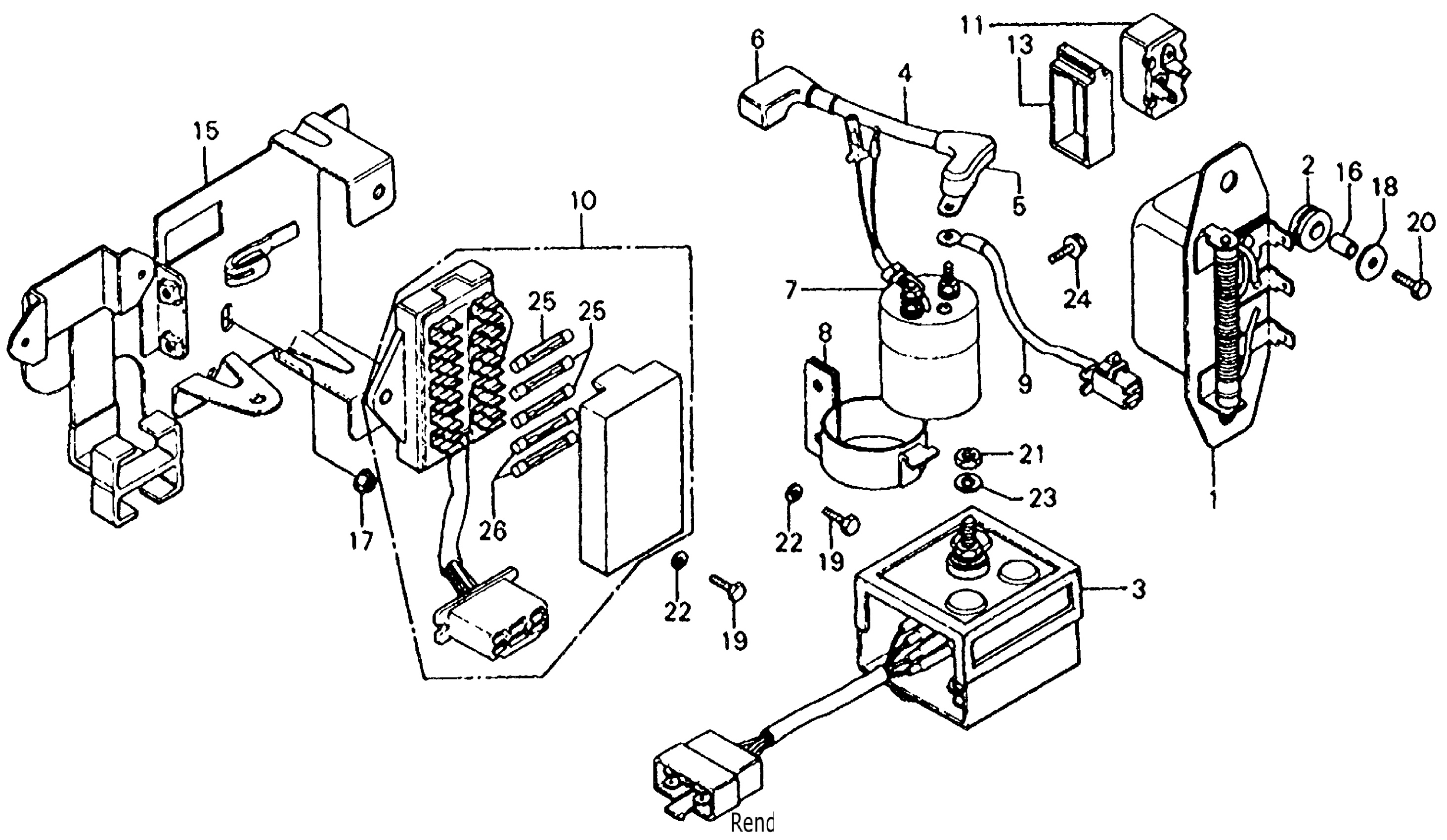

Honda CB750FA (76) 750 SUPER SPORT, JPN, VIN# CB750F-2000003 TO CB750F-2022317 FUSE BOX + REGULATOR + RECTIFIER Diagram

#

Description
Price

1

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

2

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

2

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

3

RECTIFIER ASSY.

31700-333-008

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-341-015.

31700-333-008

Unavailable

4

CABLE, BATTERY STARTER (NOT AVAILABLE)

32401-392-000

Unavailable

5

COVER This part replaces 32412-300-010.

32412-MJ0-000

Unavailable

6

COVER B, BATTERY TERMINAL (NOT AVAILABLE)

32413-300-010

Unavailable

7

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

8

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE) | Use up to Frame SN 2014518 This part replaces 35851-300-000.

35851-392-000

Unavailable

8

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE)

35851-392-000

Unavailable

9

SUB-WIRE, MAGNETIC (NOT AVAILABLE)

35858-392-000

Unavailable

10

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE) This part replaces 38200-377-005.

38200-377-305

Unavailable

10

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE)

38200-377-305

Unavailable

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

11

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

13

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

15

BASE, ELECTRIC (NOT AVAILABLE)

50330-392-000

Unavailable

16

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

17

NUT, COMBINATION BRACKET

90145-634-670

Unavailable

18

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

18

WASHER (18MM)

90581-831-650

$1.87

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

20

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

FUSE B (7A)

98200-20700

$1.49

26

FUSE B (15A)

98200-21500

$1.49
