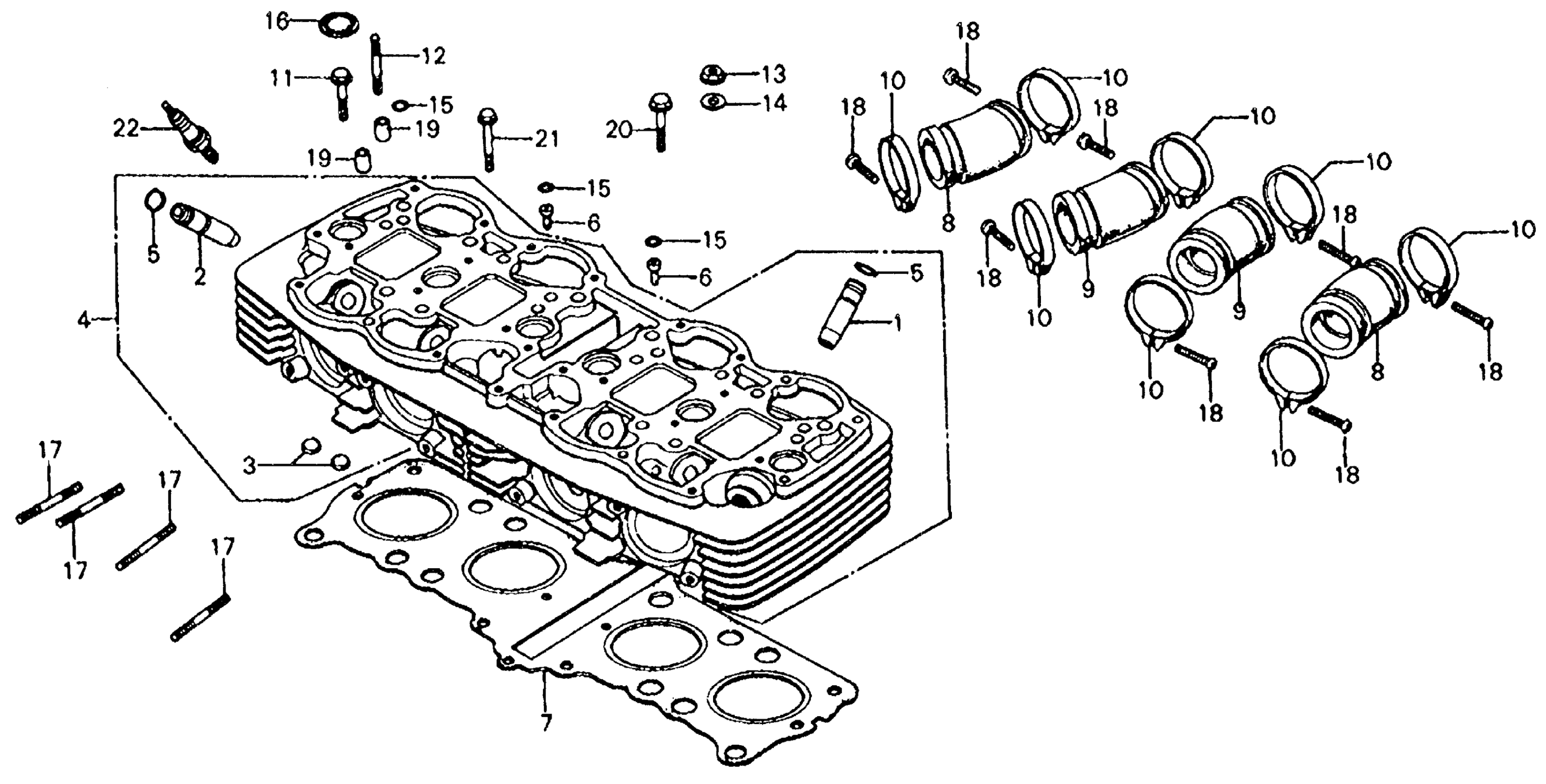

Honda CB750FA (76) 750 SUPER SPORT, JPN, VIN# CB750F-2000003 TO CB750F-2022317 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE

12025-300-300

Unavailable

2

GUIDE, EX. VALVE

12027-300-330

Unavailable

3

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

3

RUBBER, INSERT

12620-286-000

$5.85

4

CYLINDER HEAD (NOT AVAILABLE)

12200-392-000

Unavailable

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12238-300-010

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2549121 This part replaces 12251-300-070.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-300-004.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2549121 This part replaces 12251-300-004.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2549121

12251-300-306

Unavailable

8

INSULATOR A, CARBURETOR

16211-300-030

$37.28

9

INSULATOR B, CARBURETOR

16212-300-030

$38.95

10

BAND, INSULATOR

16223-KS5-000

$14.20

10

BAND, INSULATOR This part replaces 17255-300-010.

16223-KS5-000

$14.20

11

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970 This part replaces 90049-300-000.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970 This part replaces 90146-371-980.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970 This part replaces 95700-06035.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970 This part replaces 95700-06035-00.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use from Engine SN 2559971 This part replaces 95700-06035-00.

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970

95701-06035-00

$1.80

11

BOLT, FLANGE (6X35) | Use from Engine SN 2559971

95701-06035-00

$1.80

12

BOLT, STUD (6X58) (NOT AVAILABLE)

90055-300-000

Unavailable

13

NUT, FLANGE (8MM) | Use up to Engine SN 2561405 This part replaces 90236-300-000.

94050-08000

$1.49

13

NUT, FLANGE (8MM)

94050-08000

$1.49

13

NUT, FLANGE (8MM) | Use up to Engine SN 2561405

94050-08000

$1.49

14

WASHER, THRUST (14MM)

90485-035-000

$2.92

15

O-RING (5.8X1.9)

91305-323-000

$2.92

15

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

16

RUBBER, SEALING

91318-300-013

$4.85

17

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

17

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

18

SCREW, PAN (4X22)

93500-04022-0A

$1.49

19

PIN A, DOWEL (8X14)

94301-08140

$2.25

20

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970 This part replaces 95700-06036-00.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35) | Use up to Engine SN 2559970

95701-06035-00

$1.80

21

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

21

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

22

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

22

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

22

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

22

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

22

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

22

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
