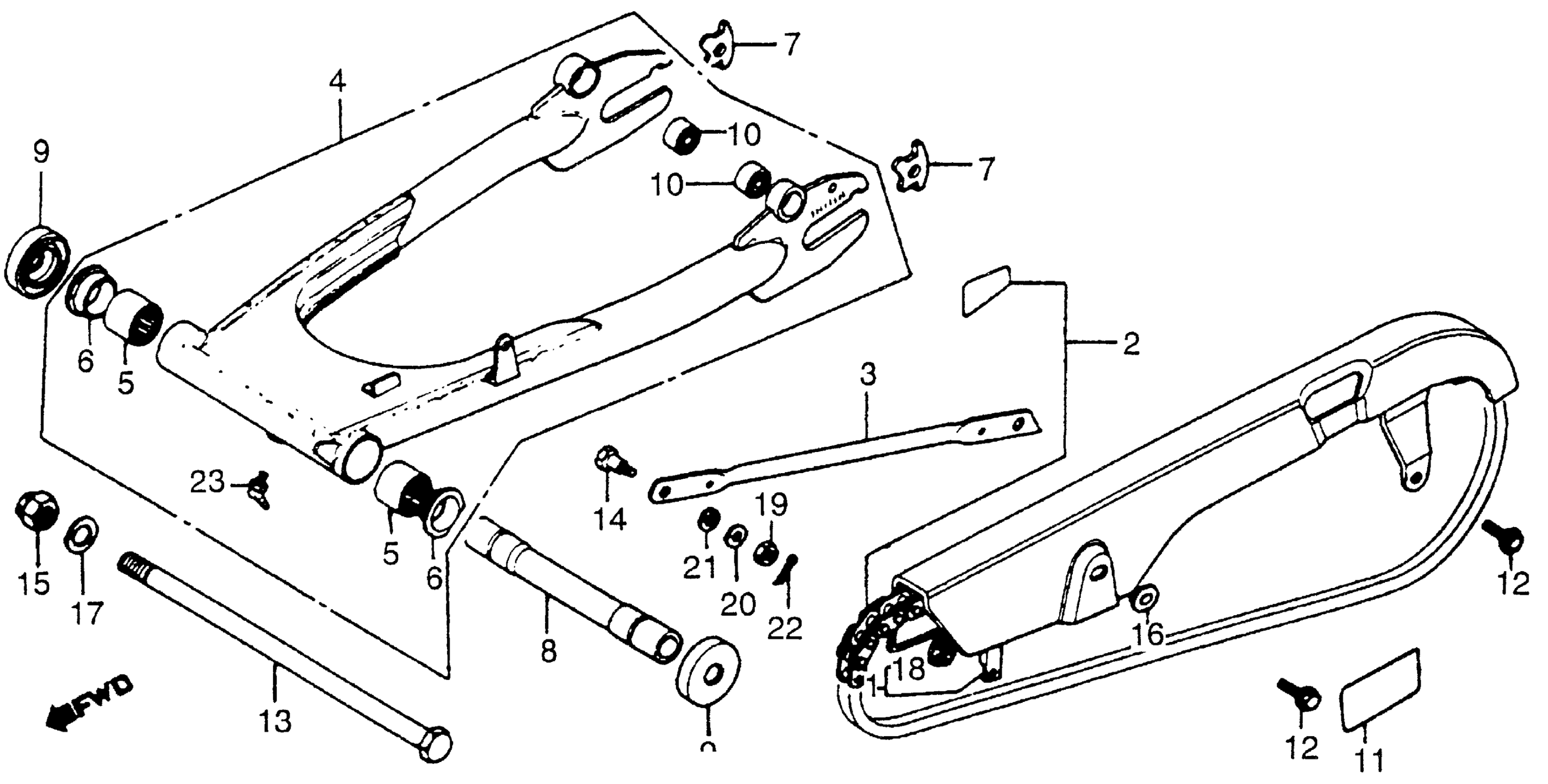

Honda CB750CA (82) 750 CUSTOM, JPN, VIN# JH2RC011-CM200003 TO JH2RC011-CM206708 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-425-871

Unavailable

2

CHAIN SET, DRIVE (50MO-106LE) (TAKASAGO) (NOT AVAILABLE) This part replaces 40535-425-643.

40535-425-644

Unavailable

2

CHAIN SET, DRIVE (50MO-106LE) (TAKASAGO) (NOT AVAILABLE)

40535-425-644

Unavailable

3

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-425-730

Unavailable

4

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-425-830ZB

Unavailable

5

BEARING, SWINGARM PIVOT (TOMUSON)

52108-425-831

Unavailable

5

BEARING, SWINGARM PIVOT (KOYO) (NOT AVAILABLE)

52108-425-832

Unavailable

6

BUSH, THRUST

52109-425-831

Unavailable

7

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

7

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

7

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

8

COLLAR, RR. SWINGARM CENTER

52141-425-830

Unavailable

9

CAP, DUST SEAL

52144-425-831

Unavailable

10

BUSH, RR. SHOCK ABSORBER

52451-357-000

Unavailable

11

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-MA5-770

Unavailable

12

BOLT, FLANGE (6X8) (NOT AVAILABLE)

90014-460-000

Unavailable

13

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-425-830

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

15

NUT, SELF-LOCK (16MM) (NOT AVAILABLE)

90354-425-830

Unavailable

16

WASHER (6X9)

90513-405-000

$2.09

17

WASHER (16MM) (NOT AVAILABLE)

90600-425-830

Unavailable

18

GROMMET, FUEL TUBE (BLACK) (NOT AVAILABLE)

90854-SA0-680

Unavailable

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, COTTER (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

FITTING, GREASE (C.76)

96201-60000

$2.87
