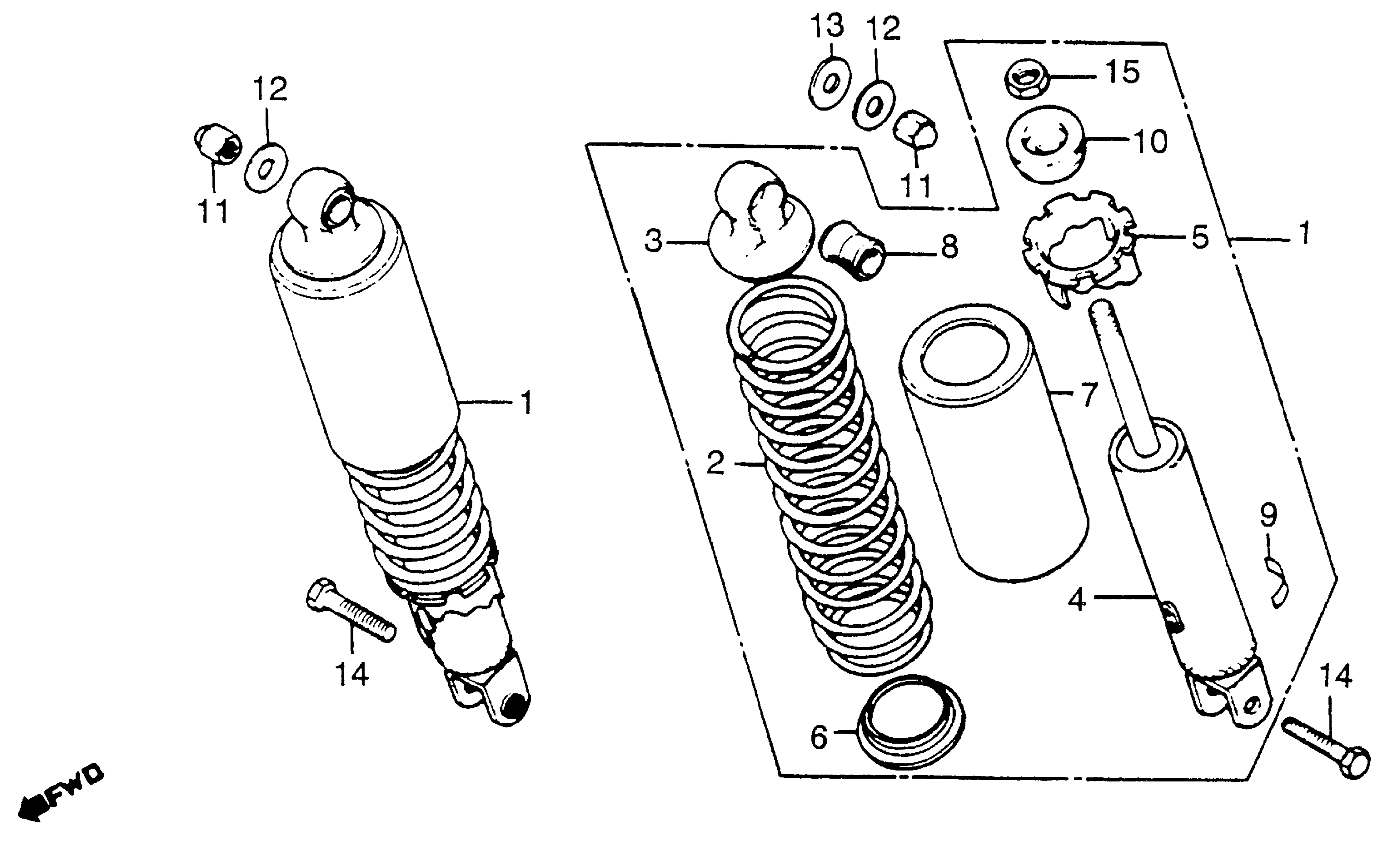

Honda CB750CA (82) 750 CUSTOM, JPN, VIN# JH2RC011-CM200003 TO JH2RC011-CM206708 REAR SHOCK ABSORBER 81-82 Diagram

SHOCK ABSORBER ASSY., RR.

52400-MA5-405

Unavailable

SHOCK ABSORBER ASSY., RR. This part replaces 52400-MA5-771.

52400-MA5-405

Unavailable

SPRING, RR. SHOCK ABSORBER

52401-MA5-771

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-425-003

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-MA5-771

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52460-MA5-671

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

EMBLEM, RR. DAMPER (NOT AVAILABLE)

52495-447-730

Unavailable

RUBBER, STOPPER

52517-404-003

$5.70

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER (10.3MM)

90521-292-000

$3.42

WASHER, SPROCKET SETTING

90551-033-000

$1.74

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.92

BOLT, HEX. (10X32)

93201-10032-0B

$2.92

NUT, HEX. (10MM)

94002-10000-0S

$4.06
