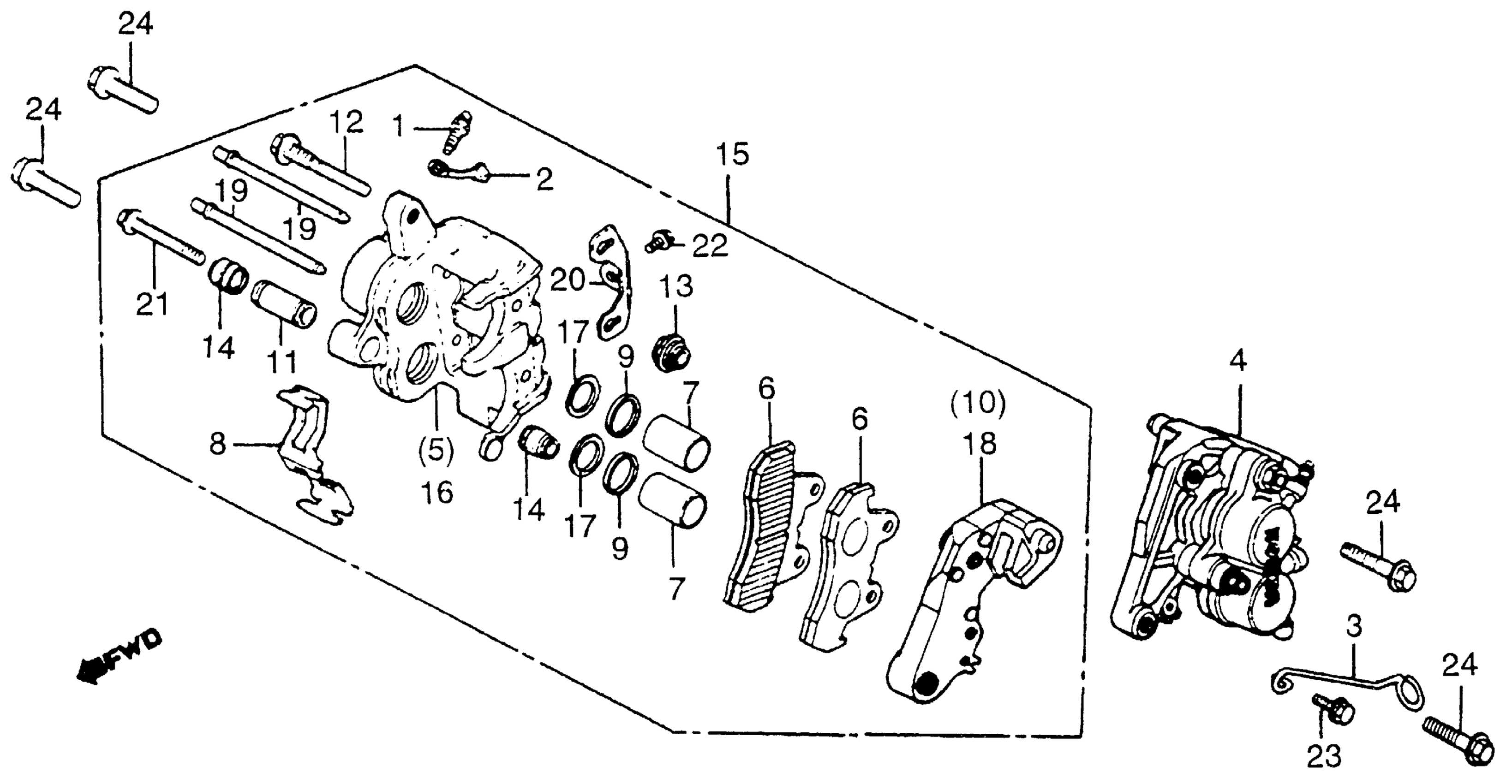

Honda CB750CA (82) 750 CUSTOM, JPN, VIN# JH2RC011-CM200003 TO JH2RC011-CM206708 FRONT BRAKE CALIPER 1 82 Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-KN8-405.

06455-MM9-405

$36.44

NI

PAD SET This part replaces 451A0-443-670.

06455-MM9-405

$36.44

1

SCREW, BLEEDER | Use up to Frame SN CM204181

43352-568-003

$7.95

2

CAP, BLEEDER | Use up to Frame SN CM204181

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE) | Use up to Frame SN CM204181

44832-MA3-000

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN CM204181

45100-461-751

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE) | Use up to Frame SN CM204181

45100-461-752

Unavailable

5

CALIPER, L. | Use up to Frame SN CM204181

45101-MA3-006

Unavailable

6

PAD, FR. | Use up to Frame SN CM204181 This part replaces 45105-KN8-026.

45105-MM9-782

$24.40

6

PAD, FR. | Use up to Frame SN CM204181 This part replaces 45105-443-761.

45105-MM9-782

$24.40

6

PAD, FR. | Use up to Frame SN CM204181 This part replaces 45105-443-762.

45105-MM9-782

$24.40

7

PISTON | Use up to Frame SN CM204181

45107-MA3-006

$50.26

8

SPRING, PAD | Use up to Frame SN CM204181

45108-MA3-006

$6.28

9

DUST SEAL | Use up to Frame SN CM204181

45109-166-006

$6.41

10

BRACKET, L. FR. (NOT AVAILABLE) | Use up to Frame SN CM204181

45110-MA5-006

Unavailable

11

SLEEVE | Use up to Frame SN CM204181

45111-MA3-006

$13.38

12

PIN, BOLT | Use up to Frame SN CM204181

45131-MA3-006

$17.59

13

BOOT B | Use up to Frame SN CM204181

45133-MA3-006

$5.46

14

BOOT, PIN | Use up to Frame SN CM204181

45133-166-016

$3.85

15

CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN CM204181

45200-461-751

Unavailable

15

CALIPER, R. FR. | Use up to Frame SN CM204181 This part replaces 45200-461-752.

45200-461-405

Unavailable

16

CALIPER, R. (NOT AVAILABLE) | Use up to Frame SN CM204181

45201-MA3-006

Unavailable

17

SEAL, PISTON | Use up to Frame SN CM204181

45209-166-006

$8.64

18

BRACKET, R. FR. (NOT AVAILABLE) | Use up to Frame SN CM204181

45210-MA5-006

Unavailable

19

PIN, HANGER | Use up to Frame SN CM204181

45215-MA3-006

$12.77

20

PLATE | Use up to Frame SN CM204181

45217-MA3-006

$4.45

21

BOLT, FLANGE (8X49) | Use up to Frame SN CM204181 This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

BOLT, FLANGE (6X10) | Use up to Frame SN CM204181 This part replaces 95700-06010-00.

95701-06010-00

$1.49

22

BOLT, FLANGE (6X10) | Use up to Frame SN CM204181

95701-06010-00

$1.49

23

BOLT, FLANGE (6X12) | Use up to Frame SN CM204181 This part replaces 95700-06012-00.

95701-06012-00

$1.62

23

BOLT, FLANGE (6X12) | Use up to Frame SN CM204181

95701-06012-00

$1.62

24

BOLT, FLANGE (10X40) | Use up to Frame SN CM204181 This part replaces 95800-10040-00.

95801-10040-00

$2.19

24

BOLT, FLANGE (10X40) | Use up to Frame SN CM204181

95801-10040-00

$2.19
