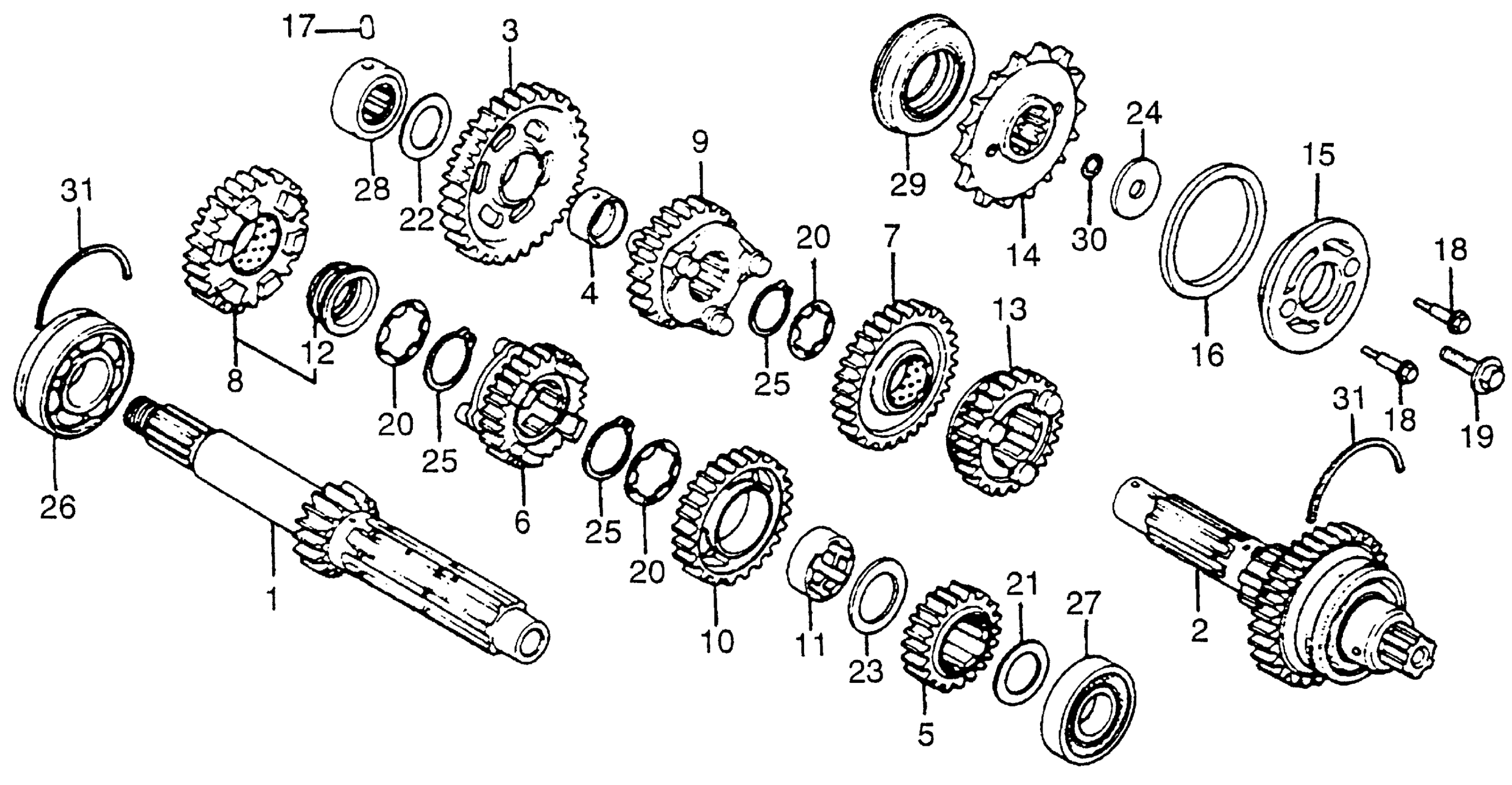

Honda CB750CA (80) 750 CUSTOM, JPN, VIN# RC01-2200004 TO RC01-2220040 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE)

23211-425-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (34T)

23220-425-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23411-425-000

Unavailable

4

BUSH, COUNTERSHAFT LOW GEAR (NOT AVAILABLE)

23422-425-000

Unavailable

5

GEAR, MAINSHAFT SECOND (19T)

23431-425-000

Unavailable

6

GEAR, MAINSHAFT THIRD (23T)

23451-MC3-630

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) This part replaces 23451-438-010.

23451-MC3-630

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE) This part replaces 23461-425-000.

23461-438-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE) This part replaces 23461-425-010.

23461-438-010

Unavailable

8

GEAR, MAINSHAFT FOURTH (25T)

23471-425-030

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T) This part replaces 23481-425-000.

23481-438-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T)

23481-438-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-MC3-630.

23491-MG1-670

Unavailable

10

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE) This part replaces 23491-425-010.

23491-MG1-670

Unavailable

11

COLLAR, SPLINE (28X17) (NOT AVAILABLE)

23495-422-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE)

23501-MC3-630

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (27T) This part replaces 23501-425-000.

23501-MC3-630

Unavailable

14

SPROCKET, DRIVE (18T)

23801-445-770

Unavailable

15

GUIDE, RING (NOT AVAILABLE)

23820-425-730

Unavailable

16

RING, DAMPER

23821-425-730

Unavailable

17

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

18

BOLT, FLANGE (6X20)

90020-438-000

$3.35

19

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

20

WASHER, THRUST (28MM)

90451-422-000

$8.36

21

WASHER, THRUST (22.5MM) (NOT AVAILABLE)

90453-426-000

Unavailable

22

WASHER, THRUST (NOT AVAILABLE)

90457-425-000

Unavailable

23

WASHER (27MM) (NOT AVAILABLE)

90457-703-000

Unavailable

24

WASHER (10.2MM)

90459-438-000

$5.83

25

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

26

BEARING, RADIAL BALL (6305)

91004-MG5-671

Unavailable

26

BEARING, BALL (6305) (NACHI) This part replaces 91004-657-003.

91004-657-008

$54.92

26

BEARING, BALL (6305) (NACHI)

91004-657-008

$54.92

26

BEARING, RADIAL BALL (6305) This part replaces 91004-689-000.

91004-MG5-671

Unavailable

27

BEARING, RADIAL BALL (63/22U) (NOT AVAILABLE)

91005-425-003

Unavailable

28

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91022-438-008

Unavailable

29

OIL SEAL (40X62X13)

91205-425-003

$32.89

30

O-RING (9.8X2.4) This part replaces 91352-526-000.

91305-422-000

$2.47

30

O-RING (9.8X2.4)

91305-422-000

$2.47

30

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

31

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable
