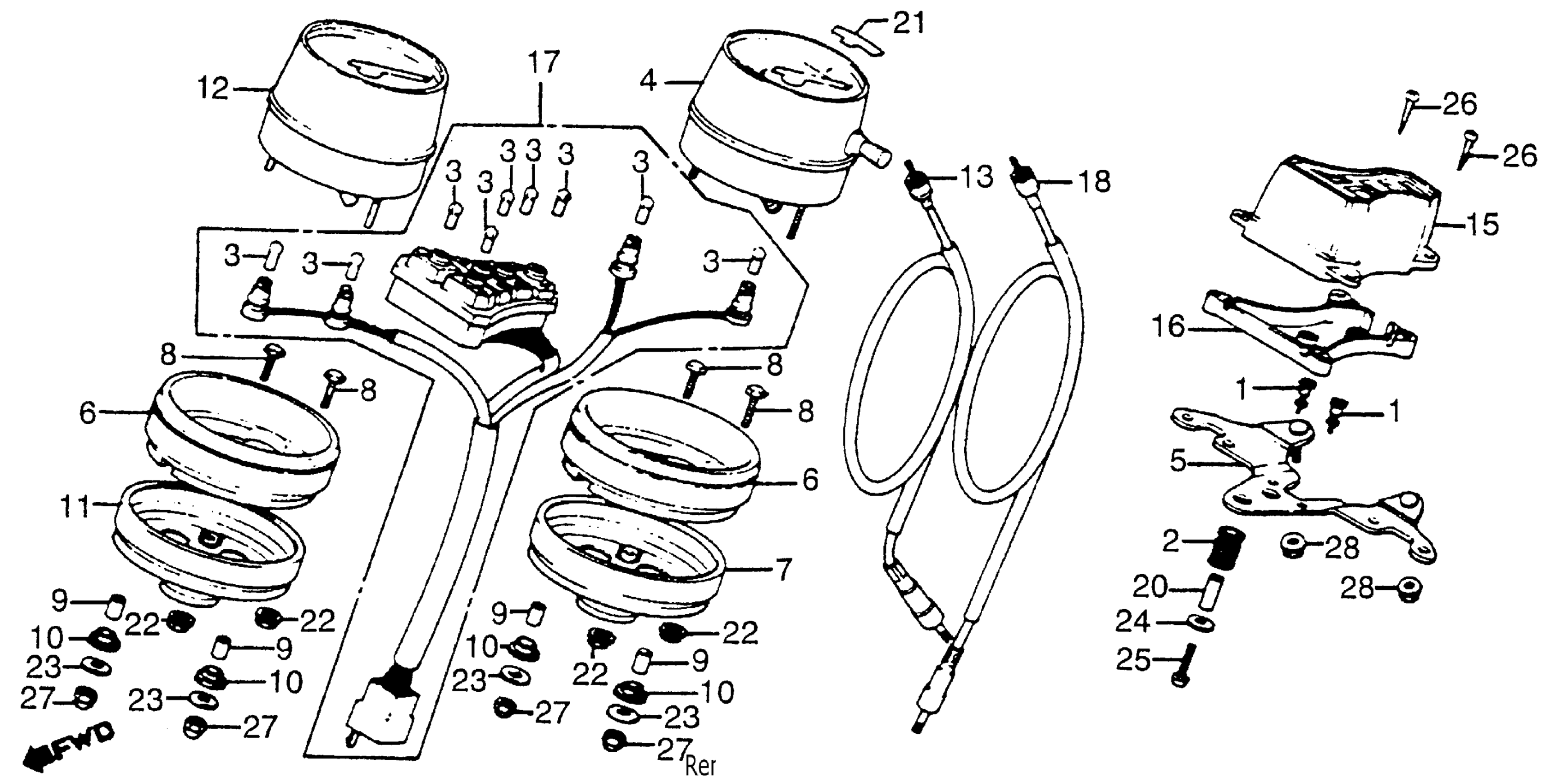

Honda CB750CA (80) 750 CUSTOM, JPN, VIN# RC01-2200004 TO RC01-2220040 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

STOPPER, METER BRACKET (NOT AVAILABLE)

32701-392-700

Unavailable

2

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

3

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

4

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE)

37200-MA5-671

Unavailable

6

RUBBER, SPEEDOMETER

37235-323-700

$22.28

7

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

8

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

9

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

10

RUBBER, METER SETTING

37244-307-670

$2.67

11

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

12

TACHOMETER ASSY. (DENSO)

37250-MA5-671

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-MA5-670.

37260-ME8-000

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-ME1-670.

37260-ME8-000

Unavailable

13

CABLE ASSY., TACHOMETER

37260-ME8-000

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-425-870.

37260-ME8-000

Unavailable

15

COVER, PILOT (UPPER)

37610-425-731

Unavailable

16

COVER, PILOT (LOWER) (NOT AVAILABLE)

37617-425-731

Unavailable

17

WIRE, PILOT

37619-425-731

Unavailable

20

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

21

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

22

NUT, METER MOUNT

90303-426-000

Unavailable

23

WASHER (6.5X18)

90545-323-700

$1.89

24

WASHER (20MM) (NOT AVAILABLE)

90581-349-690

Unavailable

25

SCREW, PAN (5X28)

93500-05028-0G

$1.49

26

SCREW, TAPPING (4X16)

93901-34480

$1.49

27

NUT, CAP (6MM)

94021-06020

$1.73

28

NUT, FLANGE (6MM)

94050-06000

$1.49
