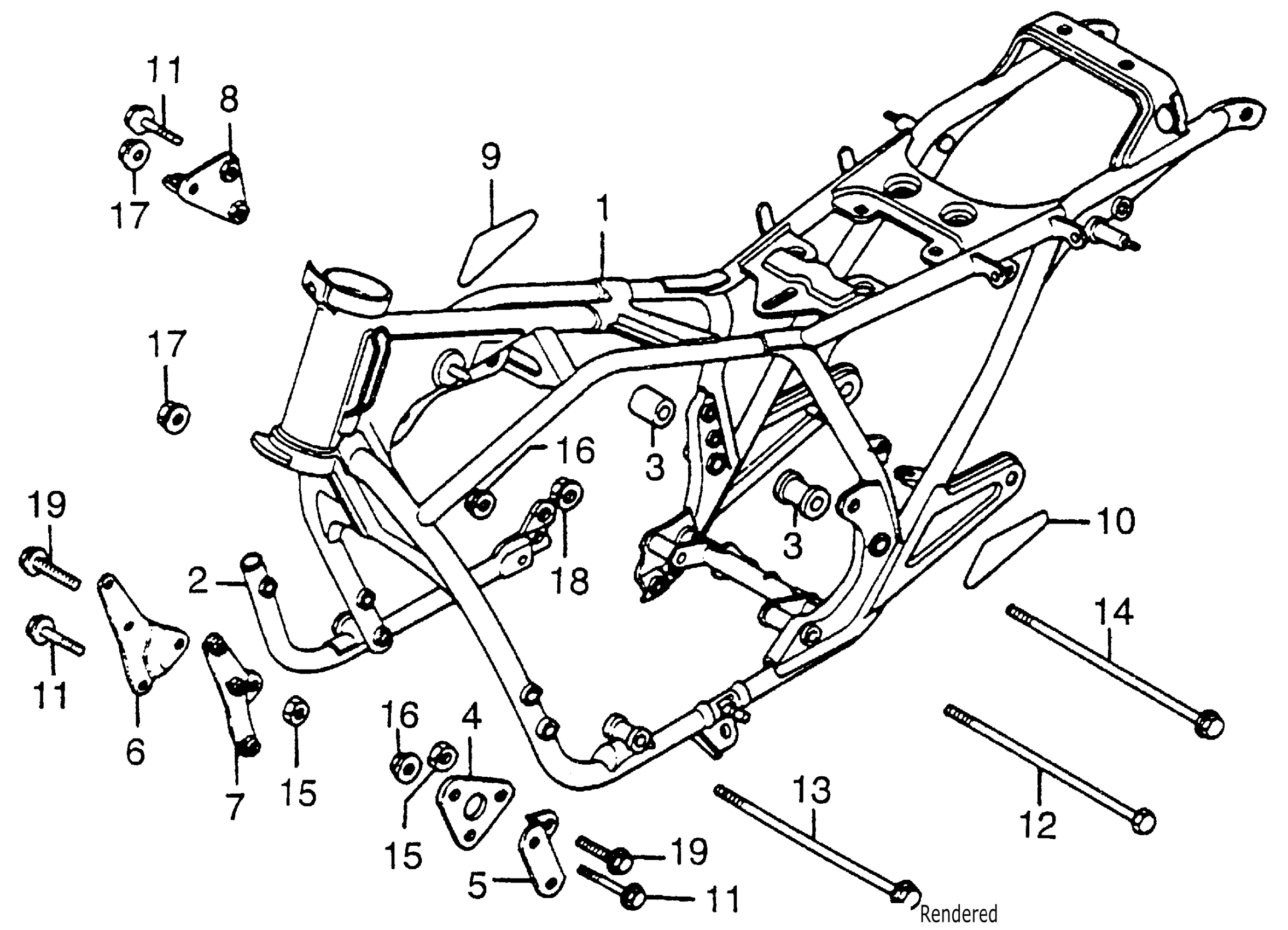

Honda CB750CA (80) 750 CUSTOM, JPN, VIN# RC01-2200004 TO RC01-2220040 FRAME Diagram

#

Description
Price

2

PIPE, JOINT *NH1* (BLACK)

50122-425-020ZA

Unavailable

3

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50327-425-000

Unavailable

4

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-438-000ZA

Unavailable

5

PLATE, L. FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50352-438-000ZA

Unavailable

6

PLATE B, ENGINE HANGER *NH1* (BLACK) This part replaces 50353-438-000.

50353-438-000ZA

Unavailable

6

PLATE B, ENGINE HANGER *NH1* (BLACK)

50353-438-000ZA

Unavailable

7

PLATE A, ENGINE HANGER (NOT AVAILABLE)

50354-438-000

Unavailable

9

MARK, MUFFLER CAUTION (NOT AVAILABLE)

87504-425-670

Unavailable

10

MARK, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-425-770

Unavailable

11

BOLT, FLANGE (8X62) This part replaces 90016-425-010.

90156-KA6-770

Unavailable

11

BOLT, FLANGE (8X62)

90156-KA6-770

Unavailable

12

BOLT (12X361) (NOT AVAILABLE)

90107-426-610

Unavailable

13

BOLT, FLANGE (10X330) (NOT AVAILABLE)

90152-425-000

Unavailable

14

BOLT, ENGINE HANGER (10X284) (NOT AVAILABLE)

90156-425-830

Unavailable

15

NUT, HEX. (10MM)

94030-10000

$1.49

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

NUT, FLANGE (10MM)

94050-10000

$1.59

18

NUT, FLANGE (12MM)

94050-12000

$1.49

19

BOLT, FLANGE (10X60) This part replaces 95800-10060-00.

95801-10060-00

$2.25

19

BOLT, FLANGE (10X60)

95801-10060-00

$2.25
