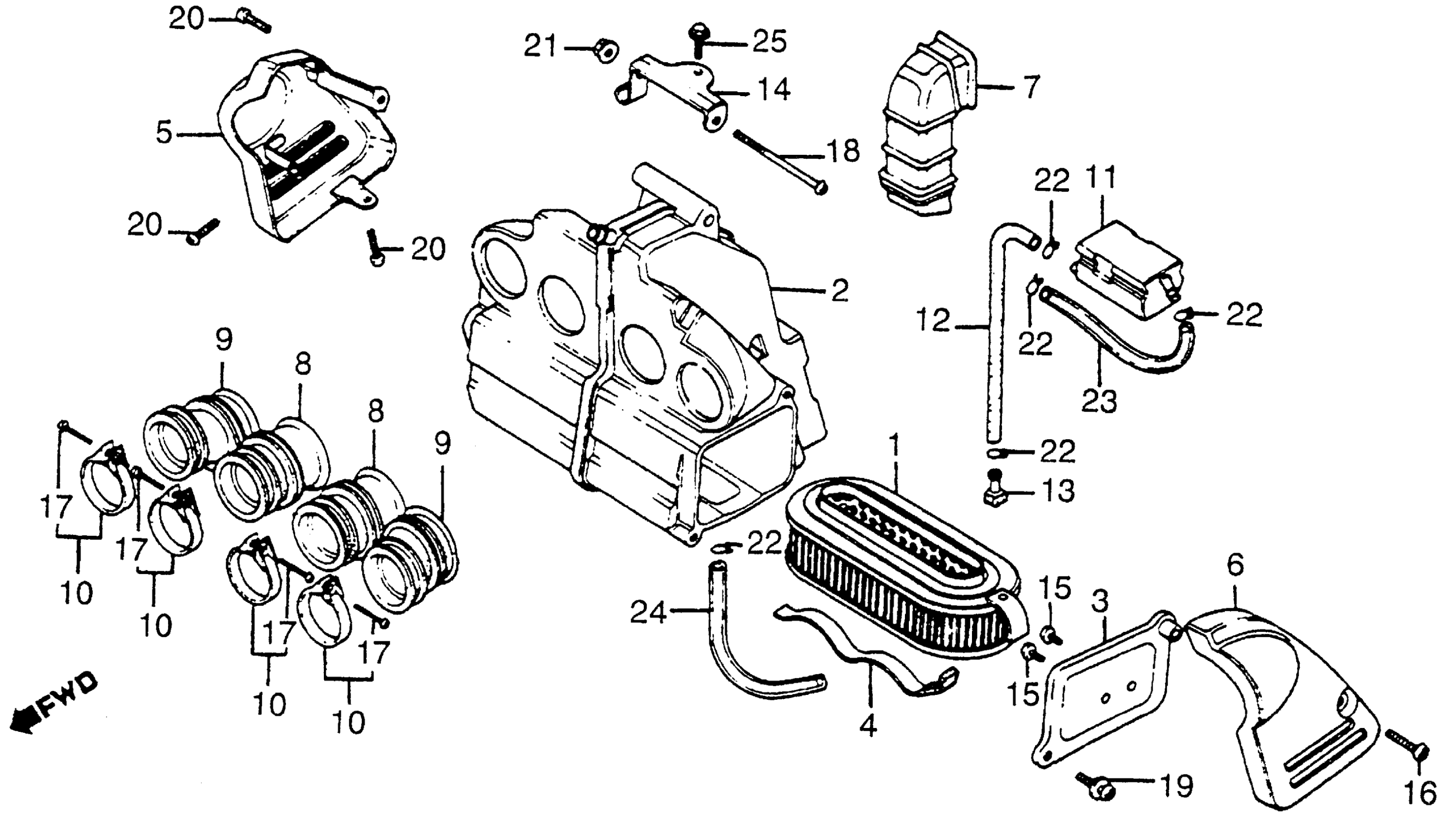

Honda CB750CA (80) 750 CUSTOM, JPN, VIN# RC01-2200004 TO RC01-2220040 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-425-000

$32.44

2

HOUSING, AIR CLEANER This part replaces 17213-425-010.

17213-425-020

Unavailable

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17213-425-020

Unavailable

4

SPRING, ELEMENT SETTING

17223-425-000

Unavailable

6

COVER, L. AIR CLEANER HOUSING (NOT AVAILABLE)

17226-425-730

Unavailable

7

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-425-670

Unavailable

8

TUBE A, AIR CLEANER CONNECTING

17253-425-000

$26.04

9

TUBE B, AIR CLEANER CONNECTING

17254-425-000

$26.04

10

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

11

TANK, STORAGE (NOT AVAILABLE)

17300-425-000

Unavailable

13

PLUG, BREATHER TUBE

17370-419-700

$3.74

14

STAY, AIR CLEANER HANGER (NOT AVAILABLE)

17375-425-000

Unavailable

15

SCREW, PAN (4X6)

93500-04006-0A

$1.49

17

SCREW, PAN (5X25)

93500-05025-0G

$1.49

18

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

18

SCREW, PAN (6X70)

93500-06070-0A

$1.49

19

SCREW-WASHER (5X16)

93891-05016-07

$1.49

20

SCREW, TAPPING (4X12)

93901-14380

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

CLIP, TUBE (C12)

95002-80000

$1.49

23

TUBE, VINYL (8X12X3000) (8X12X230)

95003-23003-10M

$14.69

24

TUBE, VINYL (8X12X3000) (8X12X360)

95003-23003-10M

$14.69

25

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
