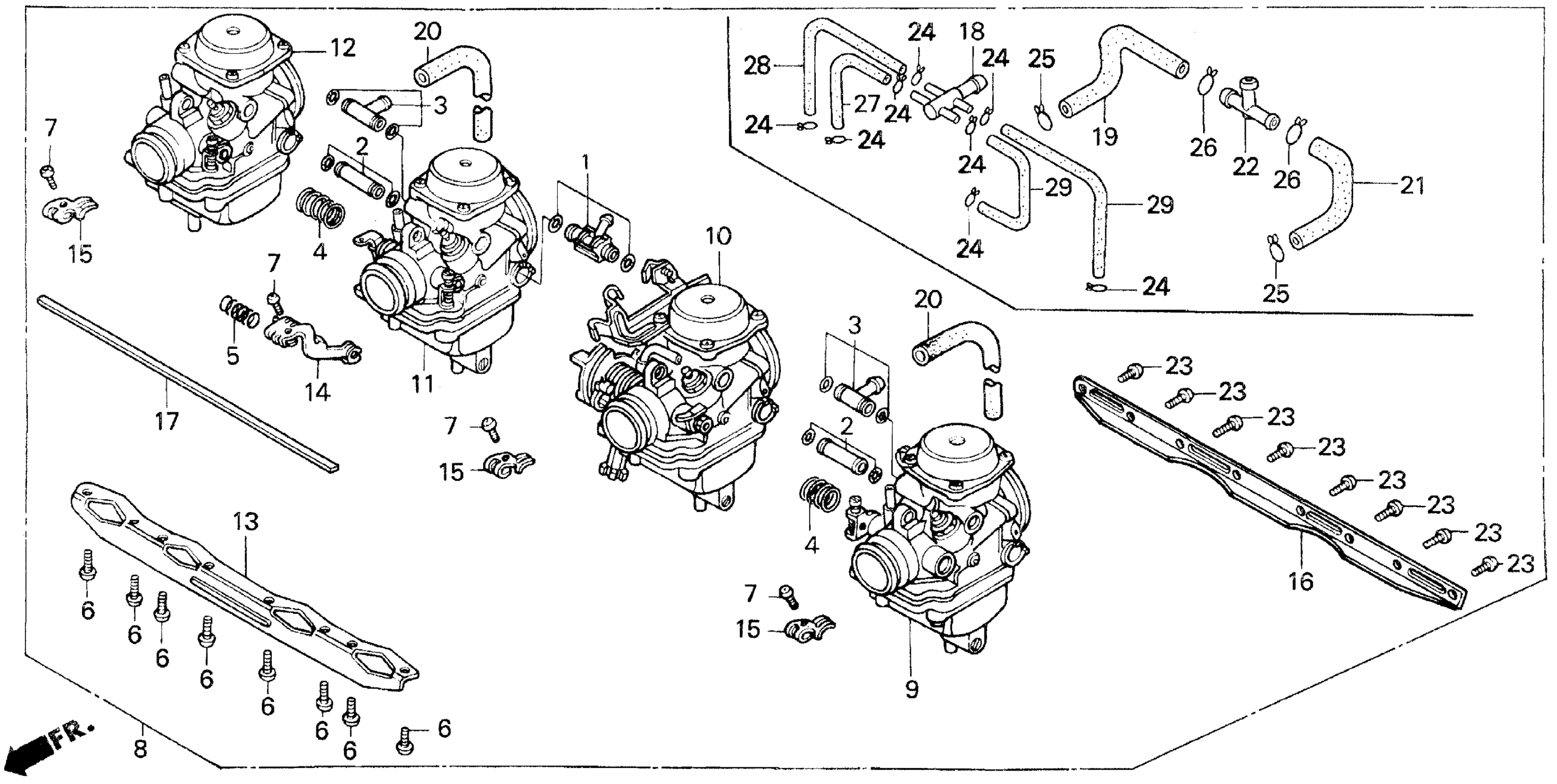

Honda CB750AC (99) MOTORCYCLE, JPN, VIN# JH2RC381-XM700001 CARBURETOR ASSY. Diagram

#

Description
Price

1

JOINT SET This part replaces 16026-MA6-003.

16026-MW3-R00

$47.81

1

JOINT SET

16026-MW3-R00

$47.81

2

JOINT SET, FUEL This part replaces 16042-MA5-671.

16042-MW3-R00

$18.30

2

JOINT SET, FUEL This part replaces 16042-ME5-671.

16042-MW3-R00

$18.30

2

JOINT SET, FUEL

16042-MW3-R00

$18.30

3

JOINT SET This part replaces 16047-MA6-003.

16048-KR3-980

$48.07

3

JOINT SET

16048-KR3-980

$48.07

4

SPRING

16053-MA6-003

$8.38

5

SPRING

16054-MA6-003

$8.01

6

SCREW, PAN (6X12)

16080-ML4-611

$3.10

7

SCREW, PAN (4X8) This part replaces 16081-MM2-671.

16081-ML4-611

Unavailable

8

CARBURETOR ASSY. (VE77C A)

16100-MW3-680

$2,202.38

9

CARBURETOR ASSY. 1

16101-MW3-680

Unavailable

10

CARBURETOR ASSY. 2

16102-MW3-680

Unavailable

11

CARBURETOR ASSY. 3

16103-MW3-680

Unavailable

12

CARBURETOR ASSY. 4

16104-MW3-680

Unavailable

13

STAY, PLATE

16119-ME5-671

$113.81

14

LEVER, STARTER

16120-ME5-671

Unavailable

15

LEVER, STARTER

16121-MA6-003

$13.51

16

PLATE, STAY

16129-ME5-671

Unavailable

17

ROD

16145-MJ1-671

$18.44

18

JOINT (T)

16180-ME5-761

$29.24

19

TUBE

16198-MW3-680

Unavailable

21

TUBE

16199-MW3-680

Unavailable

22

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

23

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

23

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

23

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

24

CLIP, TUBE (B8)

95002-02080

$1.62

25

CLIP, TUBE (B12)

95002-02120

$1.79

26

CLIP, TUBE (B12.5)

95002-02130

$1.06

27

BULK HOSE, VACUUM (4.5X1000) (4.5X100)

95005-45001-10M

$23.48

28

BULK HOSE, VACUUM (4.5X1000) (4.5X130)

95005-45001-10M

$23.48

29

BULK HOSE, VACUUM (4.5X1000) (4.5X165)

95005-45001-10M

$23.48
