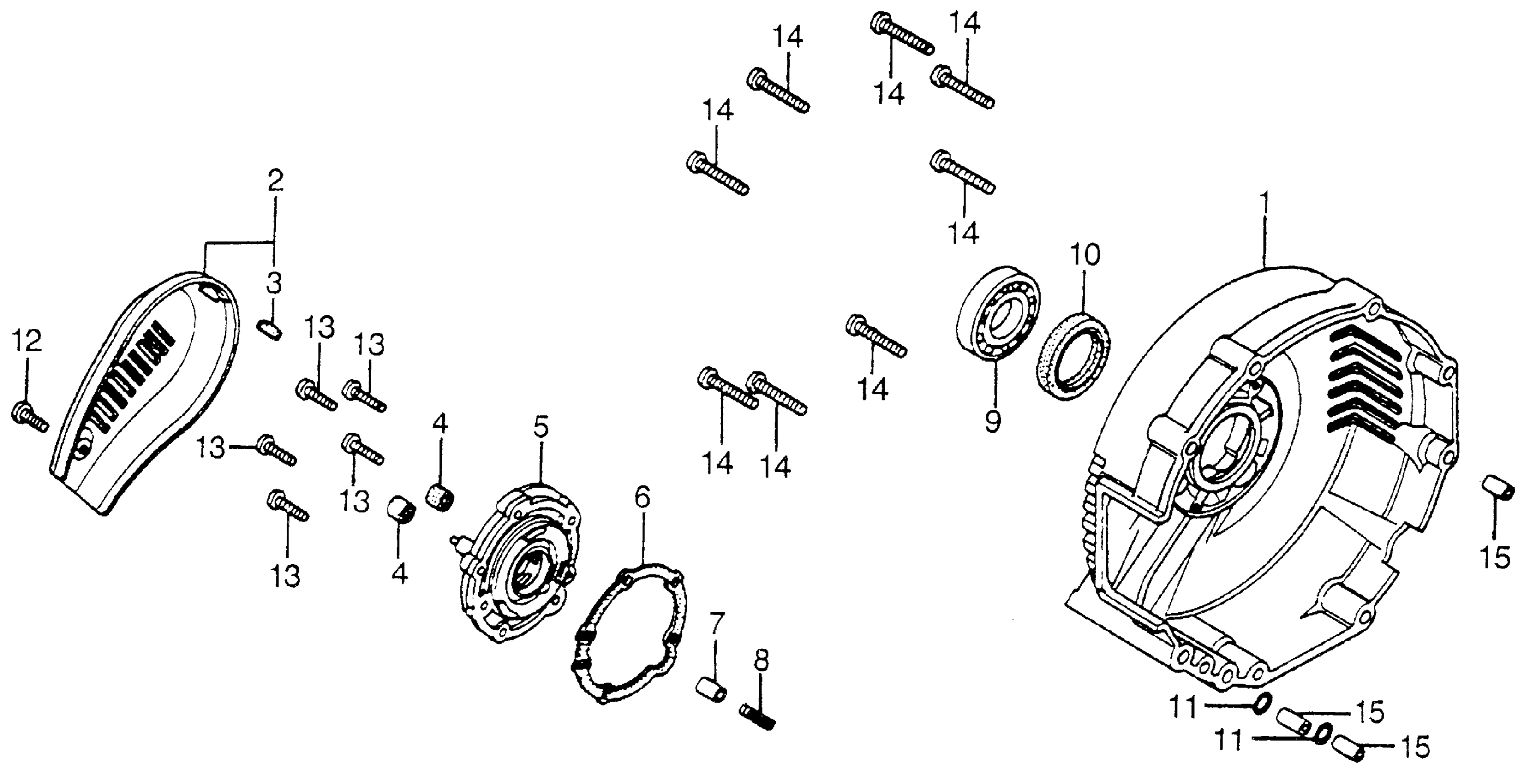

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 TORQUE CONVERTER CASE Diagram

#

Description
Price

1

CASE, TORQUE CONVERTER

11340-393-010

Unavailable

2

PROTECTOR, TORQUE CONVERTER CAP (NOT AVAILABLE)

11345-393-010

Unavailable

3

RUBBER, STAY (NOT AVAILABLE)

11348-393-300

Unavailable

4

RUBBER, TORQUE CONVERTER CAP PROTECTOR MOUNT (NOT AVAILABLE)

11349-393-000

Unavailable

5

CAP, TORQUE CONVERTER CASE (NOT AVAILABLE)

11350-393-020

Unavailable

6

GASKET This part replaces 11391-393-010.

11391-393-306

Unavailable

7

VALVE, TORQUE CONVERTER FLUID CHECK (NOT AVAILABLE)

27611-393-000

Unavailable

8

SPRING, TORQUE CONVERTER FLUID VALVE

27621-393-000

Unavailable

9

BEARING, BALL (16006) (KOYO) (NOT AVAILABLE)

91001-612-004

Unavailable

9

BEARING, BALL (16006) (KOYO) (NOT AVAILABLE) This part replaces 91001-612-008.

91001-612-004

Unavailable

10

OIL SEAL (34X50X7) (ARAI) This part replaces 91205-393-003.

91261-MB0-003

$12.13

10

OIL SEAL (34X50X7) (ARAI) This part replaces 91205-393-005.

91261-MB0-003

$12.13

10

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$12.13

11

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

11

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

11

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

12

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

13

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

14

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

14

SCREW, PAN (6X35)

93500-06035-0A

$1.49

15

PIN, DOWEL (8X14)

94301-08140

$2.25
