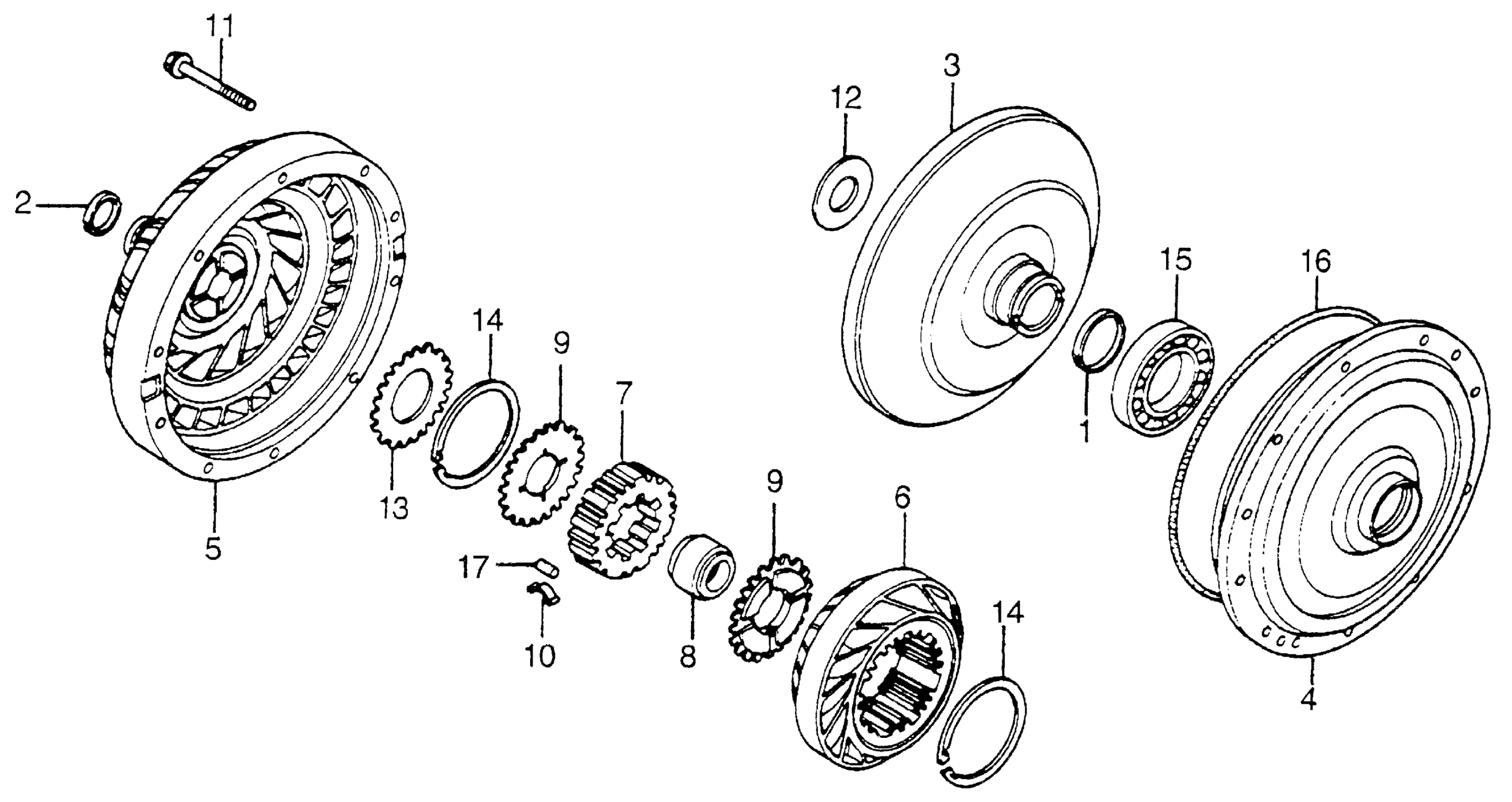

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 TORQUE CONVERTER Diagram

#

Description
Price

1

RING, OIL SEALING (48MM) (NIPPON) (NOT AVAILABLE)

23119-393-003

Unavailable

2

RING, OIL SEAL (30MM) (NOT AVAILABLE)

25156-393-003

Unavailable

3

PUMP, TORQUE CONVERTER (NOT AVAILABLE)

26210-393-000

Unavailable

4

COVER, TORQUE CONVERTER PUMP (NOT AVAILABLE)

26215-393-020

Unavailable

5

TURBINE, TORQUE CONVERTER (NOT AVAILABLE)

26220-393-000

Unavailable

6

STATOR, TORQUE CONVERTER (NOT AVAILABLE)

26231-393-000

Unavailable

7

CAM, TORQUE CONVERTER STATOR

26232-393-000

Unavailable

8

HUB, TORQUE CONVERTER STATOR

26233-393-000

Unavailable

9

PLATE, STATOR SIDE

26234-657-900

Unavailable

10

SPRING, STATOR ROLLER

26237-393-005

Unavailable

11

BOLT, UBS (6X38) (NOT AVAILABLE)

90018-333-000

Unavailable

12

WASHER (27X54X2) (NOT AVAILABLE)

90402-393-000

Unavailable

13

WASHER, THRUST (38X66X2) This part replaces 90463-639-000.

90463-639-010

Unavailable

13

WASHER, THRUST (38X66X2)

90463-639-010

Unavailable

14

RING, SNAP (66MM) (NOT AVAILABLE) This part replaces 90623-591-000.

90623-689-900

Unavailable

14

RING, SNAP (66MM) (NOT AVAILABLE)

90623-689-900

Unavailable

15

BEARING, BALL (16010) (FUJIKOSHI) (NOT AVAILABLE)

91006-393-003

Unavailable

16

O-RING (190X3.0)

91311-393-003

Unavailable

17

ROLLER (6X15.8) (NOT AVAILABLE)

96220-60158

Unavailable
