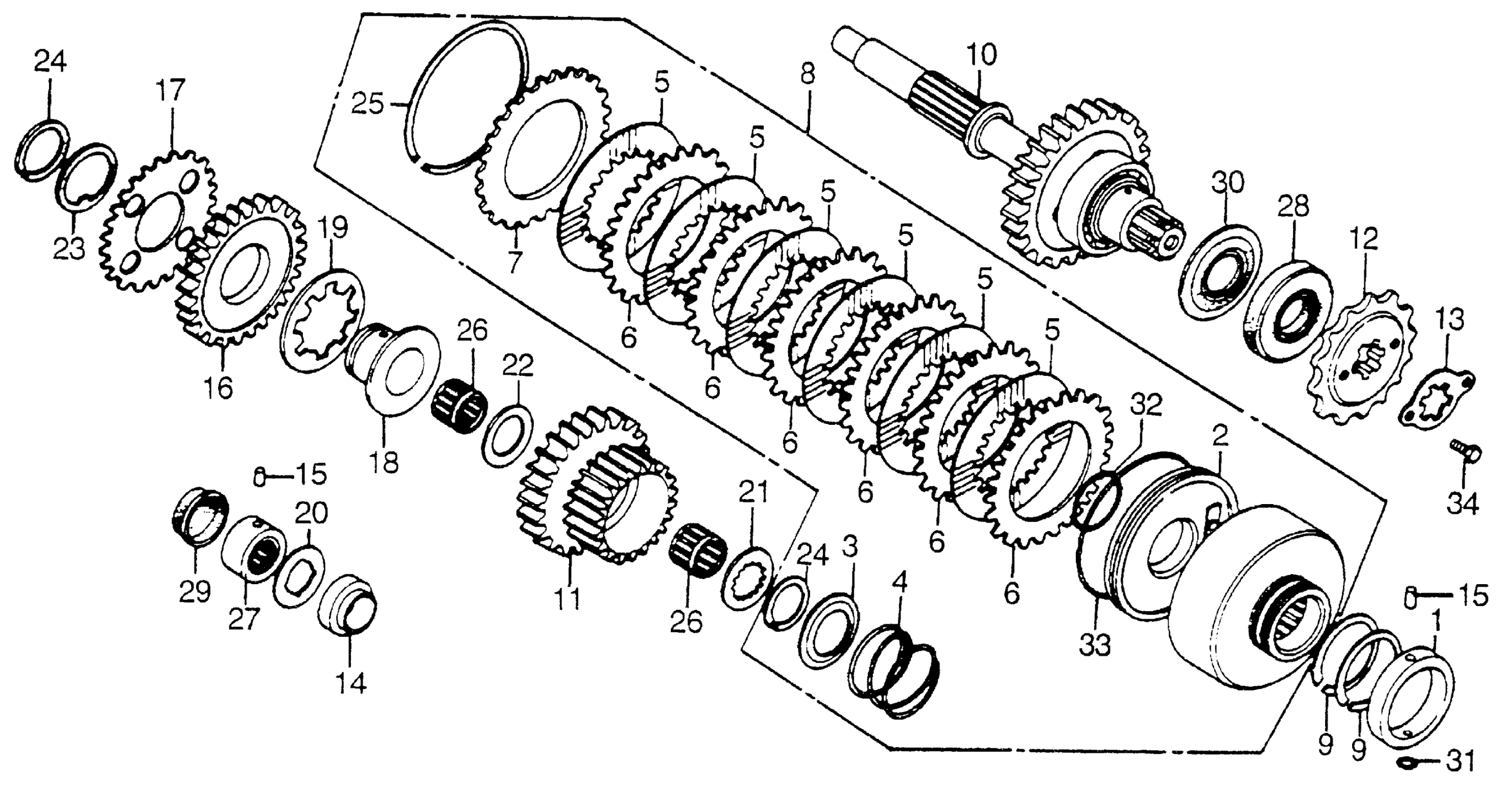

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 TOP CLUTCH + COUNTERSHAFT Diagram

#

Description
Price

1

GUIDE, SEAL RING (NOT AVAILABLE)

22485-393-010

Unavailable

2

PISTON, CLUTCH

22530-639-000

Unavailable

3

SEAT, CLUTCH SPRING

22533-639-000

Unavailable

4

SPRING, CLUTCH RETURN (NOT AVAILABLE)

22534-639-000

Unavailable

5

DISK, CLUTCH This part replaces 22535-393-000.

22535-639-505

Unavailable

5

DISK, CLUTCH This part replaces 22535-639-010.

22535-639-505

Unavailable

6

PLATE, CLUTCH (SOURCE: VINTAGE PARTS INC.)

22536-639-000

Unavailable

7

PLATE, CLUTCH END (1.8MM) (SOURCE: VINTAGE PARTS INC.)

22551-612-000

Unavailable

7

PLATE, CLUTCH END (2.1MM)

22552-612-000

Unavailable

7

PLATE, CLUTCH END (2.4MM) (SOURCE: VINTAGE PARTS INC.)

22553-612-000

Unavailable

7

PLATE, CLUTCH END (2.7MM) (SOURCE: VINTAGE PARTS INC.)

22554-612-000

Unavailable

7

PLATE, CLUTCH END (3.0MM) (SOURCE: VINTAGE PARTS INC.)

22555-612-000

Unavailable

7

PLATE, CLUTCH END (3.3MM) (SOURCE: VINTAGE PARTS INC.)

22556-639-000

Unavailable

8

CLUTCH ASSY., TOP (NOT AVAILABLE)

22600-393-000

Unavailable

9

RING, OIL SEALING (52MM) (NIPPON) (NOT AVAILABLE)

22628-393-003

Unavailable

10

COUNTERSHAFT (NOT AVAILABLE)

23220-393-000

Unavailable

11

GEAR, TOP (38T & 38T)

23431-393-000

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-393-000

Unavailable

13

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

14

COLLAR (26X38X13)

23911-393-000

Unavailable

15

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

16

GEAR, STARTER IDLE

28321-393-300

Unavailable

17

SUB-GEAR, STARTER IDLE (NOT AVAILABLE)

28322-393-300

Unavailable

18

COLLAR, STARTER IDLE GEAR

28323-393-300

Unavailable

19

SPRING, IDLE STARTER

28324-393-025

Unavailable

20

WASHER, THRUST (20X33.5X2) (NOT AVAILABLE)

90403-393-000

Unavailable

21

WASHER, SPLINE

90405-393-000

Unavailable

22

WASHER, THRUST (26MM) This part replaces 90407-393-000.

90407-415-000

$5.64

23

WASHER, THRUST (36X45X2)

90408-393-000

Unavailable

24

CIRCLIP (OUTER) (36MM) (NOT AVAILABLE)

90602-639-000

Unavailable

25

CIRCLIP (INNER) (103.5X1.5) (NOT AVAILABLE)

90608-612-000

Unavailable

26

BEARING, NEEDLE (26X30X17) (TOYO)

91012-393-008

Unavailable

27

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE) This part replaces 91022-333-018.

91022-377-008

Unavailable

27

BEARING, NEEDLE (20MM) (TOYO) (NOT AVAILABLE)

91022-377-008

Unavailable

28

OIL SEAL (34X62X13) (NOT AVAILABLE)

91203-393-003

Unavailable

29

OIL SEAL (34X7) (NOT AVAILABLE)

91208-393-003

Unavailable

30

OIL SEAL (34X66)

91211-393-003

$14.10

31

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

31

O-RING (4.9X2.5)

91301-426-010

$3.60

32

O-RING (32X1.9)

91302-639-000

$4.64

33

O-RING (88X2.2) (SOURCE: VINTAGE PARTS INC.)

91308-612-005

Unavailable

34

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
