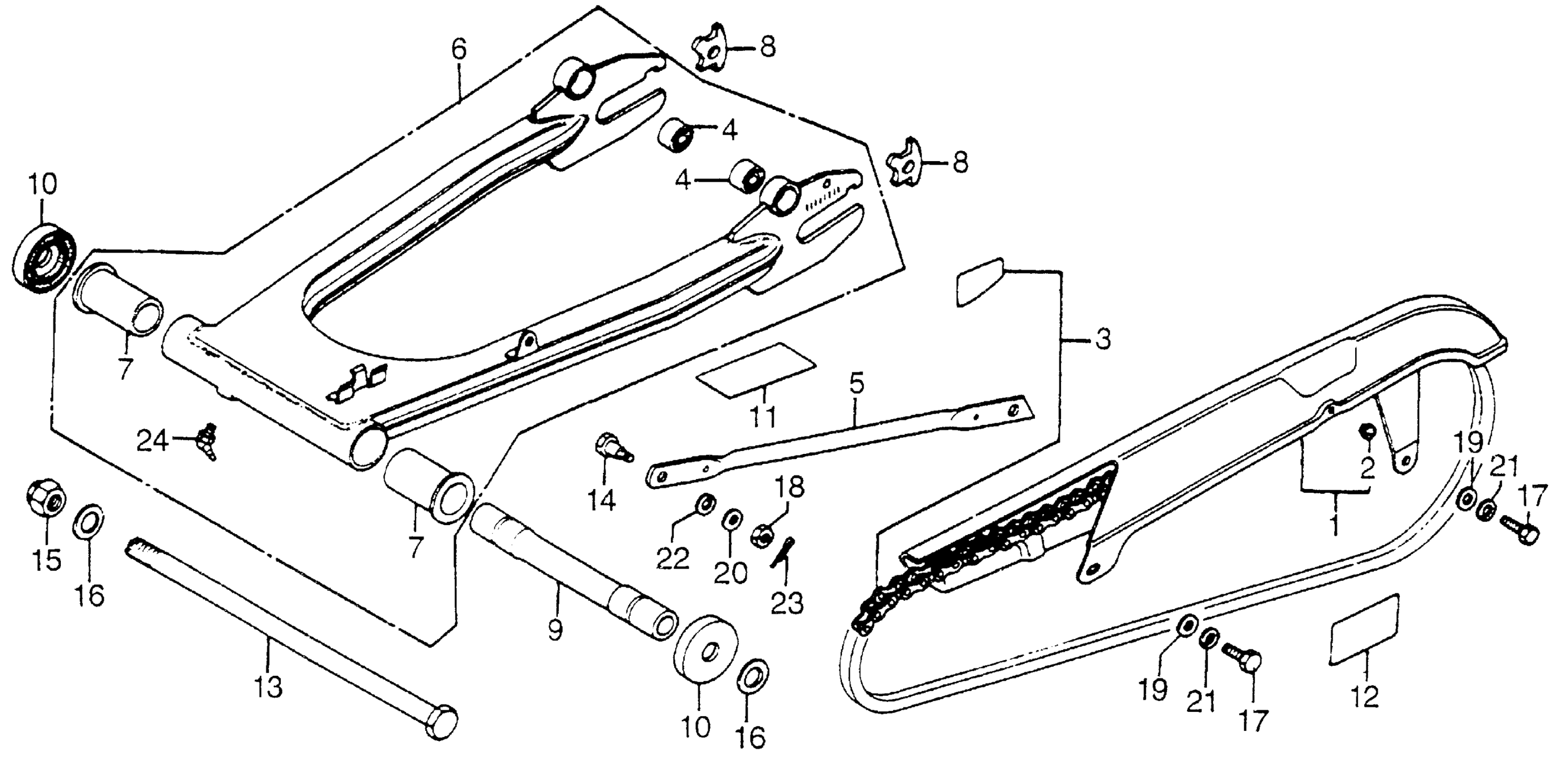

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-393-770

Unavailable

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

CHAIN SET, DRIVE (DID630DL-88L ENDLESS) (NOT AVAILABLE) This part replaces 40530-405-335.

40535-425-641

Unavailable

3

CHAIN SET, DRIVE (DID630DL-88L ENDLESS) (NOT AVAILABLE) This part replaces 40530-405-345.

40535-425-641

Unavailable

3

CHAIN SET, DRIVE (DID630DL-88L ENDLESS) (NOT AVAILABLE)

40535-425-641

Unavailable

4

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

5

ARM, RR. BRAKE STOPPER This part replaces 43431-393-000.

43431-MK7-000

Unavailable

6

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-405-000ZA

Unavailable

7

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

8

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

8

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

8

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

9

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-390-000.

52141-390-010

Unavailable

9

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-390-010

Unavailable

10

CAP, DUST SEAL

52144-362-000

Unavailable

11

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

12

MARK, CHAIN CAUTION (NOT AVAILABLE)

87507-405-671

Unavailable

13

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-393-770

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

15

NUT, LOCK (14MM)

90354-268-000

$6.78

16

WASHER, SWINGARM PIVOT BOLT

90526-268-000

$3.10

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

WASHER, SPRING (10MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

23

PIN, SPLIT (2.0X22)

94201-20220

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (2.0X22)

94201-29220

$1.49

24

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
