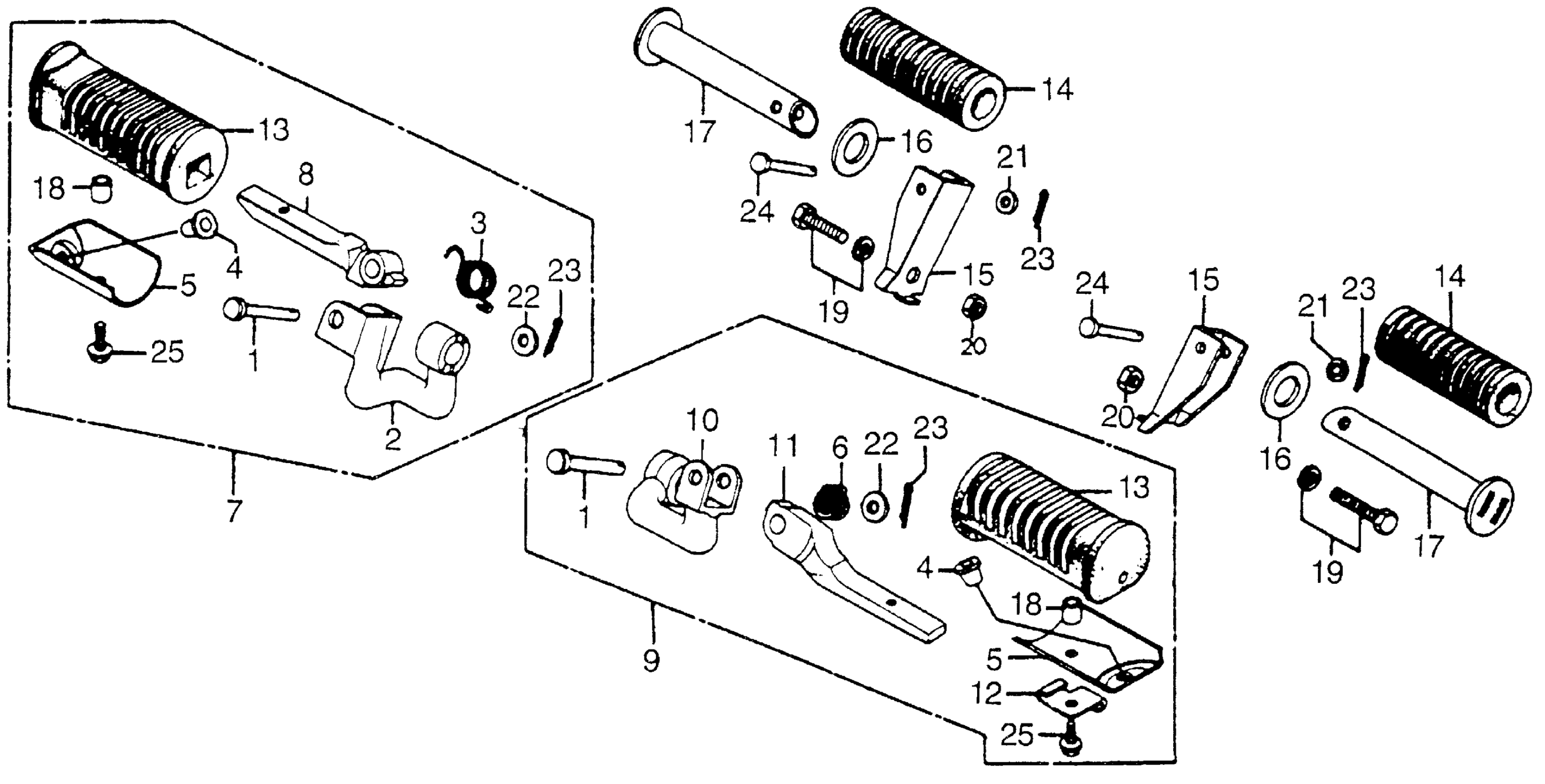

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50615-393-770ZA

Unavailable

3

SPRING, R. STEP RETURN

50617-300-670

Unavailable

4

SLIDER, FOOTPEG (NOT AVAILABLE) | Use up to Frame SN 7205612 This part replaces 50618-405-000.

50618-431-670

Unavailable

4

SLIDER, FOOTPEG (NOT AVAILABLE)

50618-431-670

Unavailable

5

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-405-000.

50619-MB9-000

Unavailable

6

SPRING, L. FOOTPEG RETURN (NOT AVAILABLE)

50620-393-770

Unavailable

7

STEP ASSY., R. *NH1* (BLACK) (NOT AVAILABLE)

50630-393-770ZA

Unavailable

8

ARM, R. STEP (NOT AVAILABLE)

50632-405-000

$43.11

9

STEP ASSY., L. *NH1* (BLACK) (NOT AVAILABLE)

50640-393-770ZA

Unavailable

10

BAR, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50641-393-770ZA

Unavailable

11

ARM, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50642-393-770ZA

Unavailable

12

HOOK, STEP (NOT AVAILABLE)

50645-393-770

Unavailable

13

RUBBER, STEP

50661-405-000

Unavailable

14

RUBBER, PILLION FOOTPEG

50710-405-000

Unavailable

15

BRACKET, PILLION STEP *NH1* (BLACK) (NOT AVAILABLE)

50711-393-770ZA

Unavailable

16

WASHER, PILLION FOOTPEG

50712-405-000

$3.26

17

BAR, PILLION FOOTPEG

50715-405-000

$27.17

18

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

19

BOLT-WASHER (10X35) (SOURCE: VINTAGE PARTS INC.)

93492-10035-00

Unavailable

20

NUT, HEX. (10MM)

94030-10000

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

23

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN A, PILLION STEP

95015-81000

$2.21

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

25

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
