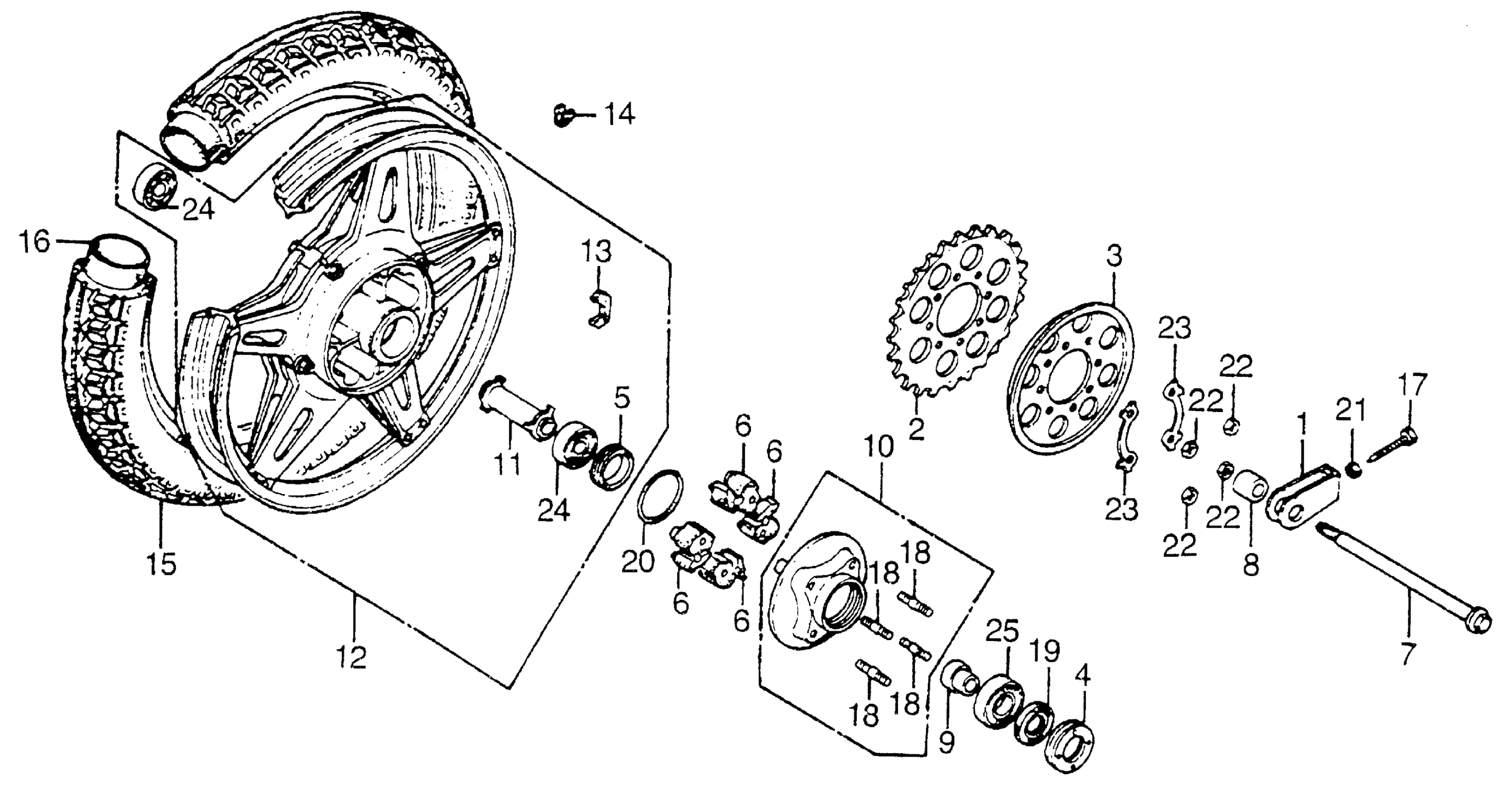

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 REAR WHEEL 78 Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-392-000

Unavailable

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE) This part replaces 40543-405-000.

40543-392-000

Unavailable

2

SPROCKET, FINAL DRIVEN (42T) (NOT AVAILABLE)

41201-393-770

Unavailable

3

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-405-000

Unavailable

4

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

5

RETAINER, RR. WHEEL BEARING

41231-300-020

Unavailable

6

DAMPER, RR. WHEEL

41241-300-050

$19.38

7

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-393-000.

42301-425-870

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-425-870

Unavailable

8

COLLAR, RR. WHEEL SIDE This part replaces 42311-392-000.

42311-425-870

Unavailable

9

SLEEVE, RR. AXLE

42605-393-000

Unavailable

10

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-405-000

Unavailable

11

COLLAR, RR. DISTANCE This part replaces 42620-300-010.

42620-ME1-405

Unavailable

12

WHEEL SUB-ASSY., RR.

42660-393-780

Unavailable

13

MARK, RR. SPOKE PLATE (NOT AVAILABLE)

42703-410-003

Unavailable

14

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

14

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

15

TIRE, RR. (4.50H-17) (BS) (NOT AVAILABLE)

42711-393-781

Unavailable

15

TIRE, RR. (4.50H17) (DUNLOP) This part replaces 42711-393-782.

42711-431-661

Unavailable

15

TIRE, RR. (4.50H17) (DUNLOP)

42711-431-661

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

16

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

16

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

17

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

18

BOLT, STUD (12X54) (NOT AVAILABLE)

90128-341-000

Unavailable

19

OIL SEAL (34X55X9)

90753-283-000

$16.11

20

O-RING (68X2.6)

91258-300-013

$5.84

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

NUT, HEX. (12MM)

94030-12000

$1.49

23

WASHER A7, TONGUED (NOT AVAILABLE)

94108-17000

Unavailable

24

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

25

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable
