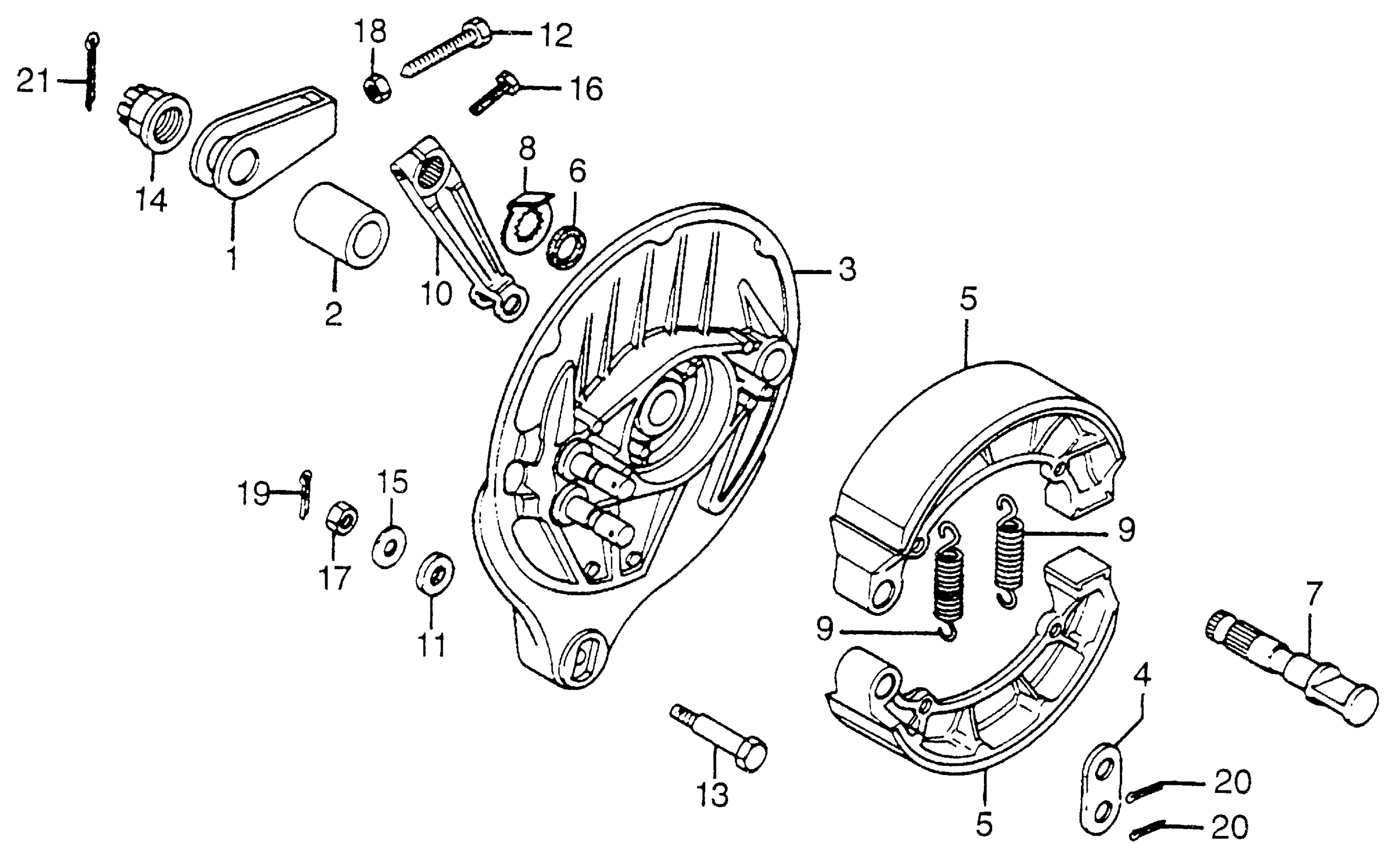

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-393-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A2-393-006.

06430-393-405

Unavailable

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-392-000

Unavailable

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE) This part replaces 40543-405-000.

40543-392-000

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-393-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-393-780

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

4

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-393-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-393-003.

06430-393-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-393-006.

06430-393-405

Unavailable

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-341-020

Unavailable

8

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-341-010

Unavailable

9

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

10

ARM, RR. BRAKE This part replaces 43410-405-000.

43410-425-000

Unavailable

11

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

12

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

13

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

14

NUT, AXLE (18MM)

90305-393-000

Unavailable

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

16

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

NUT, HEX. (8MM)

94002-08000-0S

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

19

PIN, SPLIT (2.0X22)

94201-20220

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

19

PIN, COTTER (2.0X22)

94201-29220

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30)

94201-25300

$1.49

21

PIN, SPLIT (4.0X30)

94201-40300

$1.49
