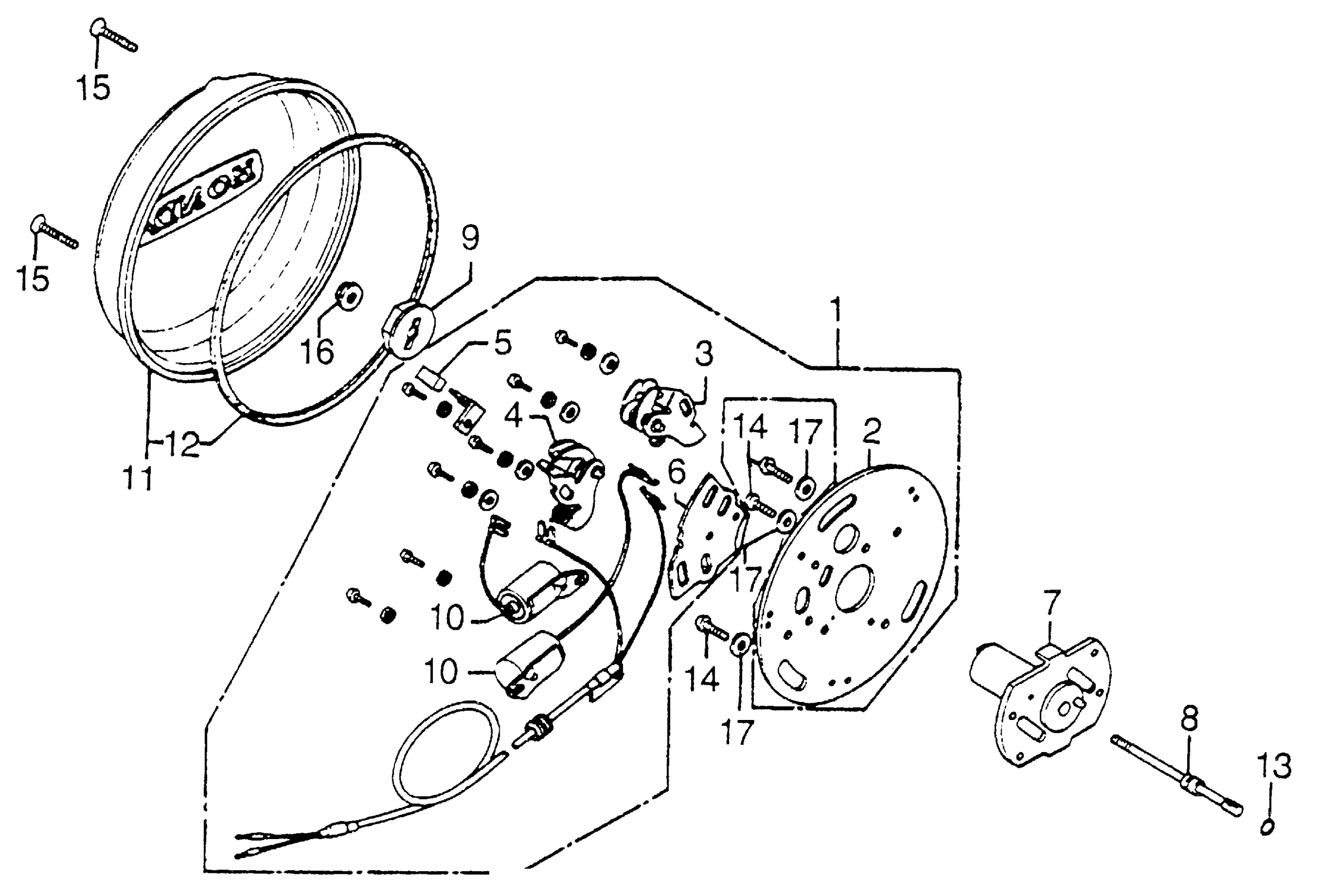

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 POINTS Diagram

#

Description
Price

1

POINTS ASSY. (TOYO) This part replaces 30200-323-005.

30200-323-154

Unavailable

1

POINTS ASSY. (TOYO)

30200-323-154

Unavailable

2

PLATE, POINT BASE (TOYO) This part replaces 30201-300-015.

30201-300-154

Unavailable

2

PLATE, POINT BASE (TOYO)

30201-300-154

Unavailable

3

POINTS (1&4) (TOYO) This part replaces 30203-300-005.

30203-300-154

Unavailable

3

POINTS (1&4) (TOYO)

30203-300-154

Unavailable

4

POINTS (2&3) (TOYO) This part replaces 30204-300-005.

30204-300-154

Unavailable

4

POINTS (2&3) (TOYO)

30204-300-154

Unavailable

5

FELT, OIL (TOYO) This part replaces 30205-003-005.

30205-300-154

Unavailable

5

FELT, OIL (TOYO)

30205-300-154

Unavailable

6

PLATE, POINTS SHIFT (TOYO) (NOT AVAILABLE) This part replaces 30215-300-005.

30215-300-154

Unavailable

6

PLATE, POINTS SHIFT (TOYO) (NOT AVAILABLE)

30215-300-154

Unavailable

7

ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE)

30220-333-004

Unavailable

7

ADVANCER ASSY., SPARK (DENSO) (NOT AVAILABLE) This part replaces 30220-377-154.

30220-333-004

Unavailable

8

SHAFT, SPARK ADVANCER (NOT AVAILABLE)

30231-300-010

Unavailable

9

WASHER, SPECIAL (NOT AVAILABLE)

30233-300-000

Unavailable

10

CONDENSER (TOYO) This part replaces 30250-300-005.

30250-300-154

$33.51

10

CONDENSER (TOYO)

30250-300-154

$33.51

11

COVER, POINTS

30370-300-020

$248.23

12

GASKET, POINT COVER

30372-300-300

Unavailable

13

O-RING (6X2.3)

91301-300-000

Unavailable

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

15

SCREW, OVAL (6X32) This part replaces 93700-06032.

93700-06032-02

$1.49

15

SCREW, OVAL (6X32)

93700-06032-0B

$1.49

15

SCREW, OVAL (6X32)

93700-06032-02

$1.49

15

SCREW, OVAL (6X32) This part replaces 93700-06032-1A.

93700-06032-02

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (5MM)

94101-05000

$1.49
