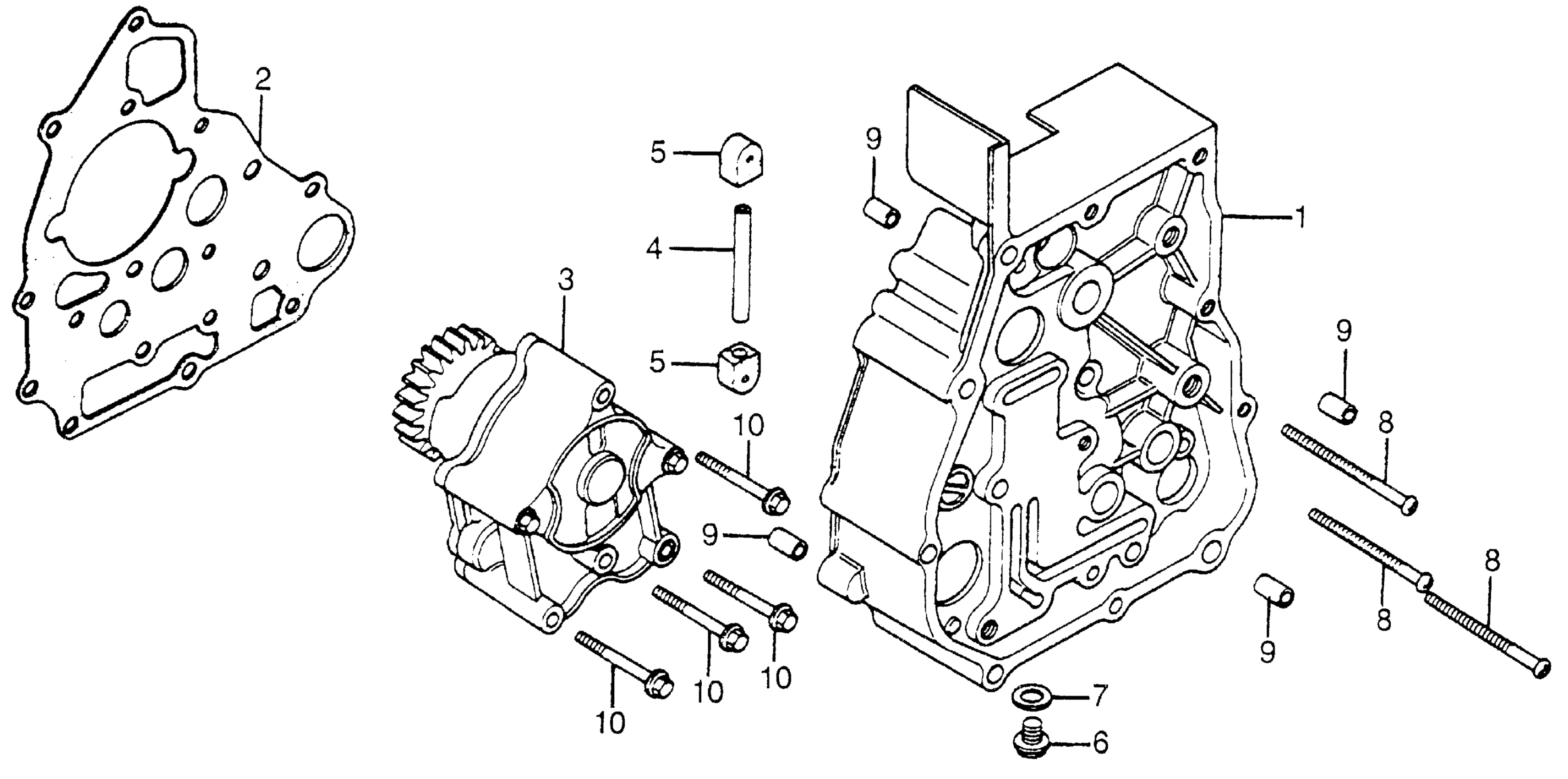

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 OIL PUMP + LEFT SIDE CASE Diagram

#

Description

Price

1

CASE, L. SIDE (NOT AVAILABLE)

11361-393-000

Unavailable

2

GASKET, L. CRANKCASE This part replaces 11395-393-000.

11395-393-306

Unavailable

3

PUMP ASSY., OIL (NOT AVAILABLE)

15100-393-000

Unavailable

4

PIPE, OIL PASSAGE

15321-393-000

Unavailable

5

RUBBER, OIL PASSAGE (NOT AVAILABLE)

15323-393-000

Unavailable

6

BOLT, SEALING (8MM)

90024-612-000

$4.76

7

GASKET (8MM)

90471-580-000

$2.92

8

SCREW, PAN (6X60)

93500-06060-0A

$1.49

8

SCREW, PAN (6X60) This part replaces 93500-06063.

93500-06060-0A

$1.49

8

SCREW, PAN (6X60) This part replaces 93500-06063-1A.

93500-06060-0A

$1.49

9

PIN, DOWEL (8X14)

94301-08140

$2.25

10

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

10

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
