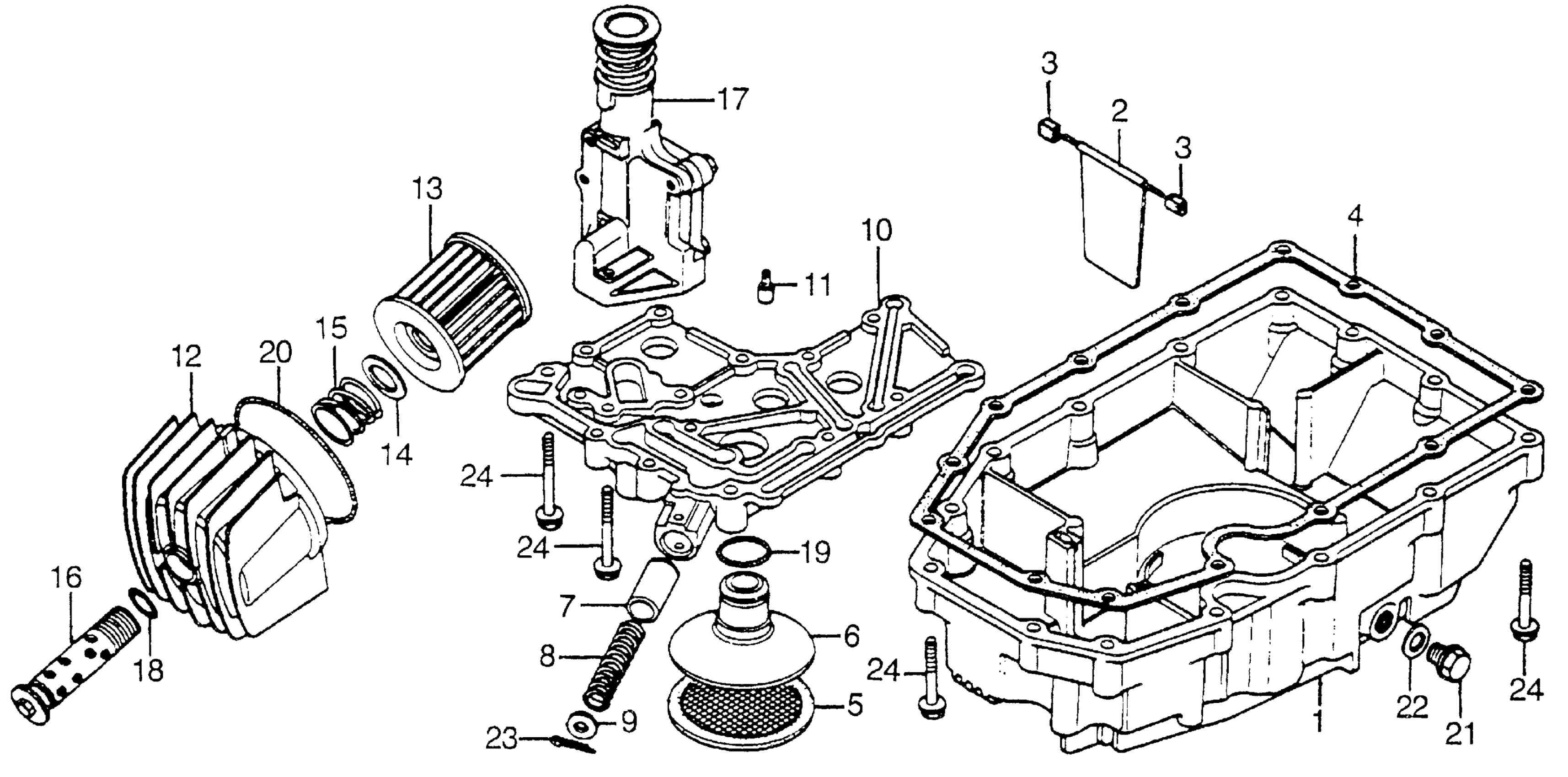

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 OIL PAN + OIL FILTER Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-393-010

Unavailable

2

PLATE, OIL STOPPER (NOT AVAILABLE)

11215-393-000

Unavailable

3

HOLDER, OIL STOPPER PLATE (NOT AVAILABLE)

11216-393-000

Unavailable

4

GASKET, OIL PAN This part replaces 11398-393-000.

11398-425-306

Unavailable

4

GASKET, OIL PAN This part replaces 11398-425-000.

11398-425-306

Unavailable

4

GASKET, OIL PAN

11398-425-306

Unavailable

5

SCREEN, OIL PUMP FILTER (NOT AVAILABLE)

15129-611-000

Unavailable

6

BODY, OIL SCREEN (NOT AVAILABLE)

15153-393-000

Unavailable

7

VALVE, RELIEF

15231-PE0-000

$14.67

7

VALVE, RELIEF This part replaces 15231-634-010.

15231-PE0-000

$14.67

8

SPRING, RELIEF VALVE

15232-PB2-000

Unavailable

8

SPRING, RELIEF VALVE This part replaces 15232-634-000.

15232-PB2-000

Unavailable

9

SEAT, RELIEF VALVE SPRING (NOT AVAILABLE)

15233-634-000

Unavailable

10

BODY, OIL PUMP

15311-393-000

Unavailable

11

ORIFICE, OIL CONTROL (NOT AVAILABLE)

15325-393-000

Unavailable

12

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

13

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

13

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

13

ELEMENT, OIL FILTER

15410-426-010

$9.30

13

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

13

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

14

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

15

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

16

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

17

BODY ASSY., REGULATOR VALVE (NOT AVAILABLE)

27200-393-000

Unavailable

18

O-RING (15X2.5)

91301-MY9-003

$2.28

18

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

19

O-RING (20X1.8) (NOT AVAILABLE)

91304-612-000

Unavailable

20

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

20

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

20

O-RING (89X4.5)

91316-425-003

$4.45

21

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

22

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

23

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

23

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

23

PIN, SPLIT (3.0X45)

94201-30450

$1.49

24

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

24

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
