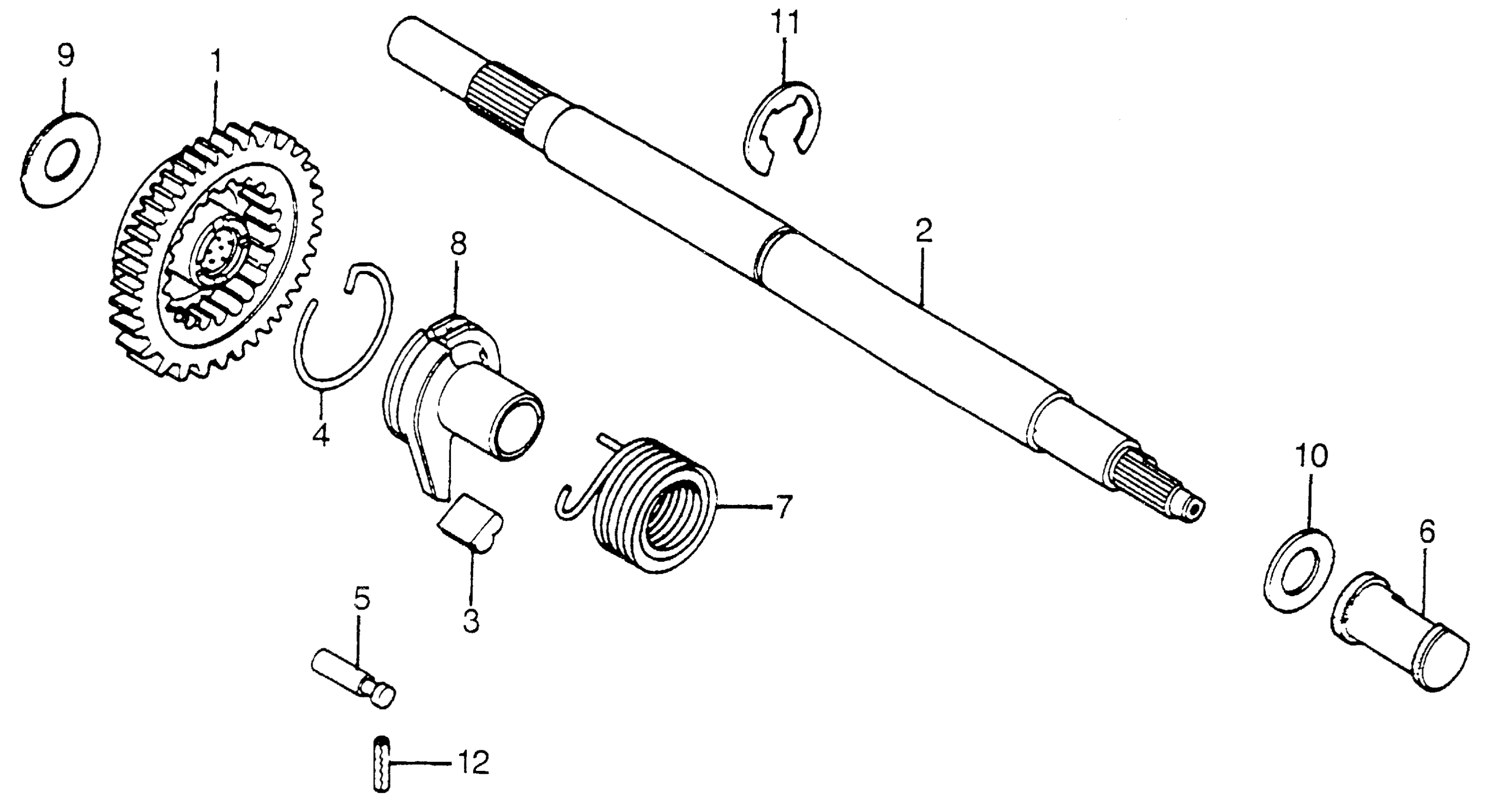

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 KICK STARTER GEAR + SPINDLE Diagram

#

Description

Price

1

GEAR, KICK STARTER (37T)

28210-393-000

Unavailable

2

SPINDLE, KICK STARTER

28251-393-000

Unavailable

3

PAWL, KICK STARTER

28252-300-020

Unavailable

4

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

5

PIN, KICK STOPPER (NOT AVAILABLE)

28254-300-000

Unavailable

6

CAP, KICK SPINDLE (NOT AVAILABLE)

28255-393-000

Unavailable

7

SPRING, STARTER RETURN

28261-393-000

Unavailable

8

FLANGE, KICK STARTER (NOT AVAILABLE)

28271-393-000

Unavailable

9

WASHER, THRUST (NOT AVAILABLE)

90406-393-000

Unavailable

10

WASHER (18MM)

90451-357-000

Unavailable

10

WASHER (18MM) This part replaces 90453-286-003.

90451-357-000

Unavailable

11

CIRCLIP, E-TYPE (19MM) (NOT AVAILABLE)

90605-393-000

Unavailable

12

PIN, SPRING (4X25)

94305-40252

$2.13
