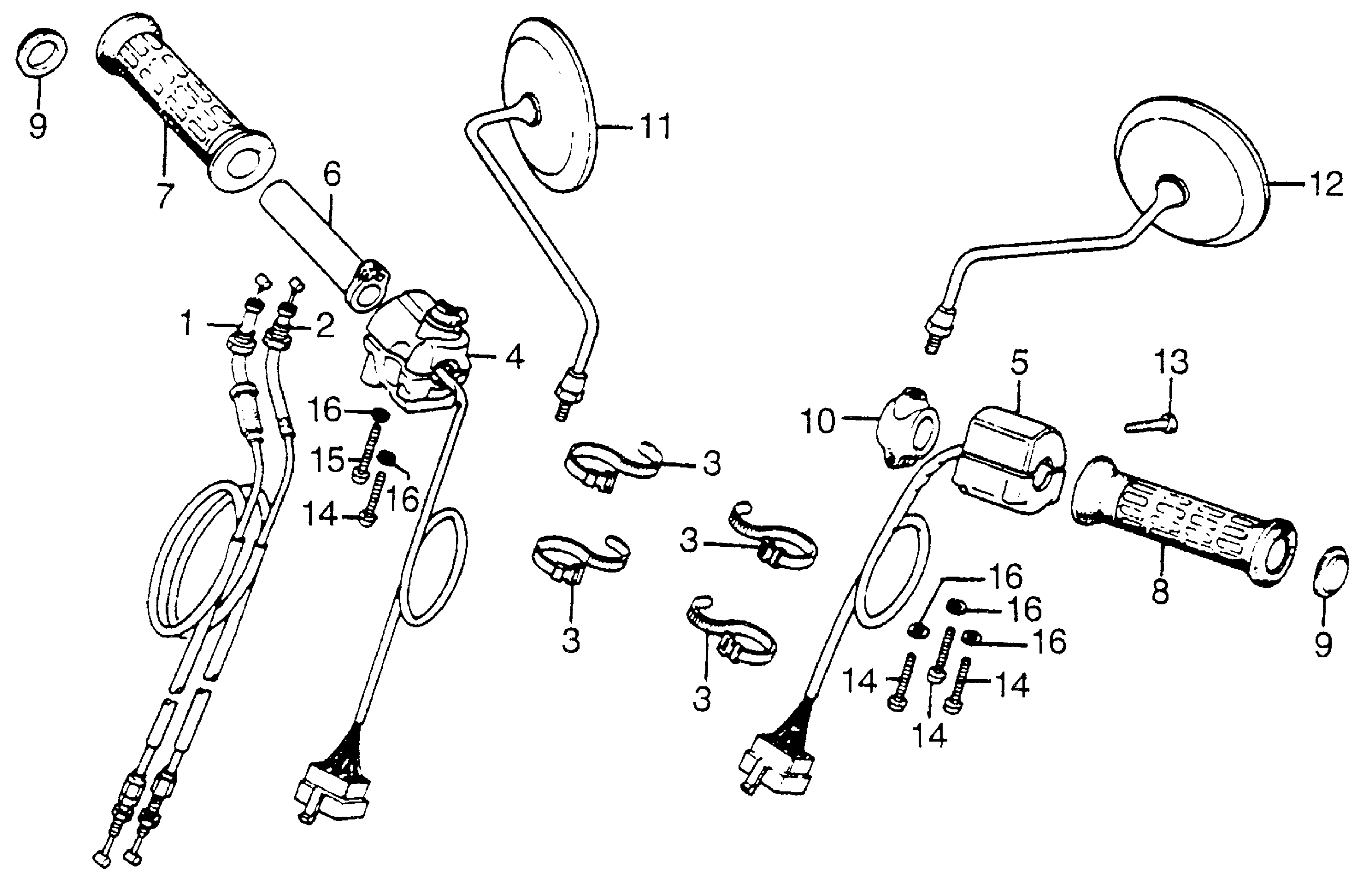

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 HANDLE GRIP + SWITCH Diagram

CABLE A, THROTTLE (NOT AVAILABLE)

17910-393-770

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-393-770

Unavailable

BAND B1, WIRE

32161-404-000

$2.23

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-393-771

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-393-771

Unavailable

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLEBAR This part replaces 53165-371-000.

53165-390-780

$10.88

GRIP, R. HANDLEBAR

53165-390-780

$10.88

GRIP, L. HANDLEBAR This part replaces 53166-371-000.

53166-390-780

$10.88

GRIP, L. HANDLEBAR

53166-390-780

$10.88

CAP, HANDLE END (NOT AVAILABLE)

53167-371-000

Unavailable

HOLDER, BACK MIRROR

53173-329-690

Unavailable

MIRROR, R.

88110-333-611

$37.14

MIRROR, L.

88120-333-611

Unavailable

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
