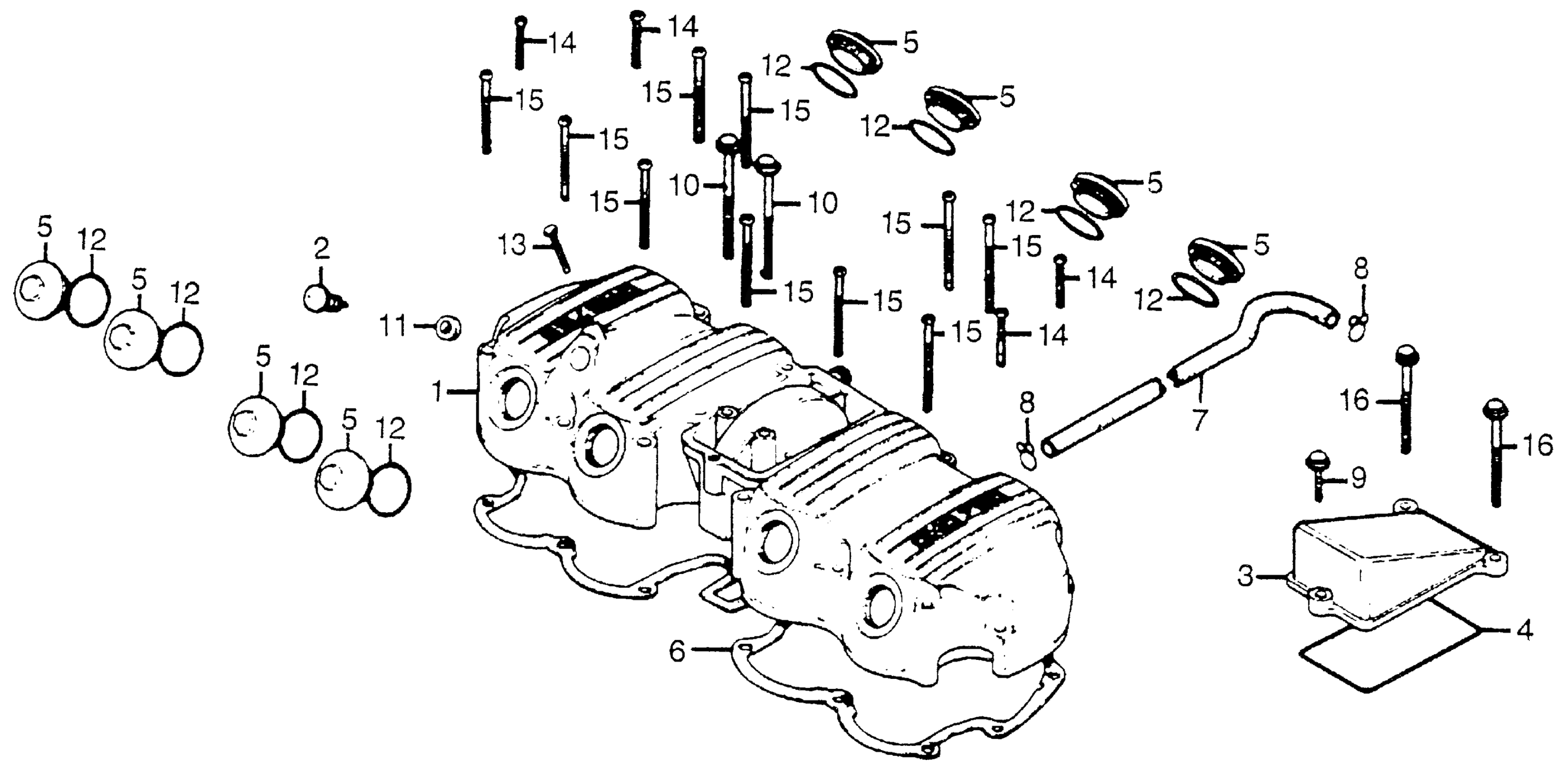

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-405-600

Unavailable

2

CAP, TACHOMETER GEAR HOLE (NOT AVAILABLE)

12312-393-000

Unavailable

3

COVER, HEAD BREATHER (NOT AVAILABLE)

12321-405-600

Unavailable

4

GASKET, BREATHER COVER

12329-300-020

Unavailable

5

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

GASKET, CYLINDER HEAD COVER This part replaces 12391-300-040.

12391-300-306

Unavailable

6

GASKET, CYLINDER HEAD COVER

12391-300-306

Unavailable

7

TUBE, BREATHER

15713-393-600

Unavailable

8

CLIP, AIR HOSE (16)

90646-657-000

$7.32

9

BOLT, SPECIAL (6X20) (NOT AVAILABLE)

90011-393-000

Unavailable

10

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

11

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

11

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

12

O-RING (30.8MM)

91302-001-020

$3.75

13

SCREW, PAN (5X25)

93500-05025-0A

$1.49

13

SCREW, PAN (5X25) This part replaces 93500-05025-1A.

93500-05025-0A

$1.49

14

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

14

SCREW, PAN (6X40)

93500-06040-0A

$1.49

14

SCREW, PAN (6X40) This part replaces 93500-06040-1A.

93500-06040-0A

$1.49

15

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

15

SCREW, PAN (6X60)

93500-06060-0A

$1.49

16

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

16

BOLT, FLANGE (6X80)

95701-06080-00

$2.34
