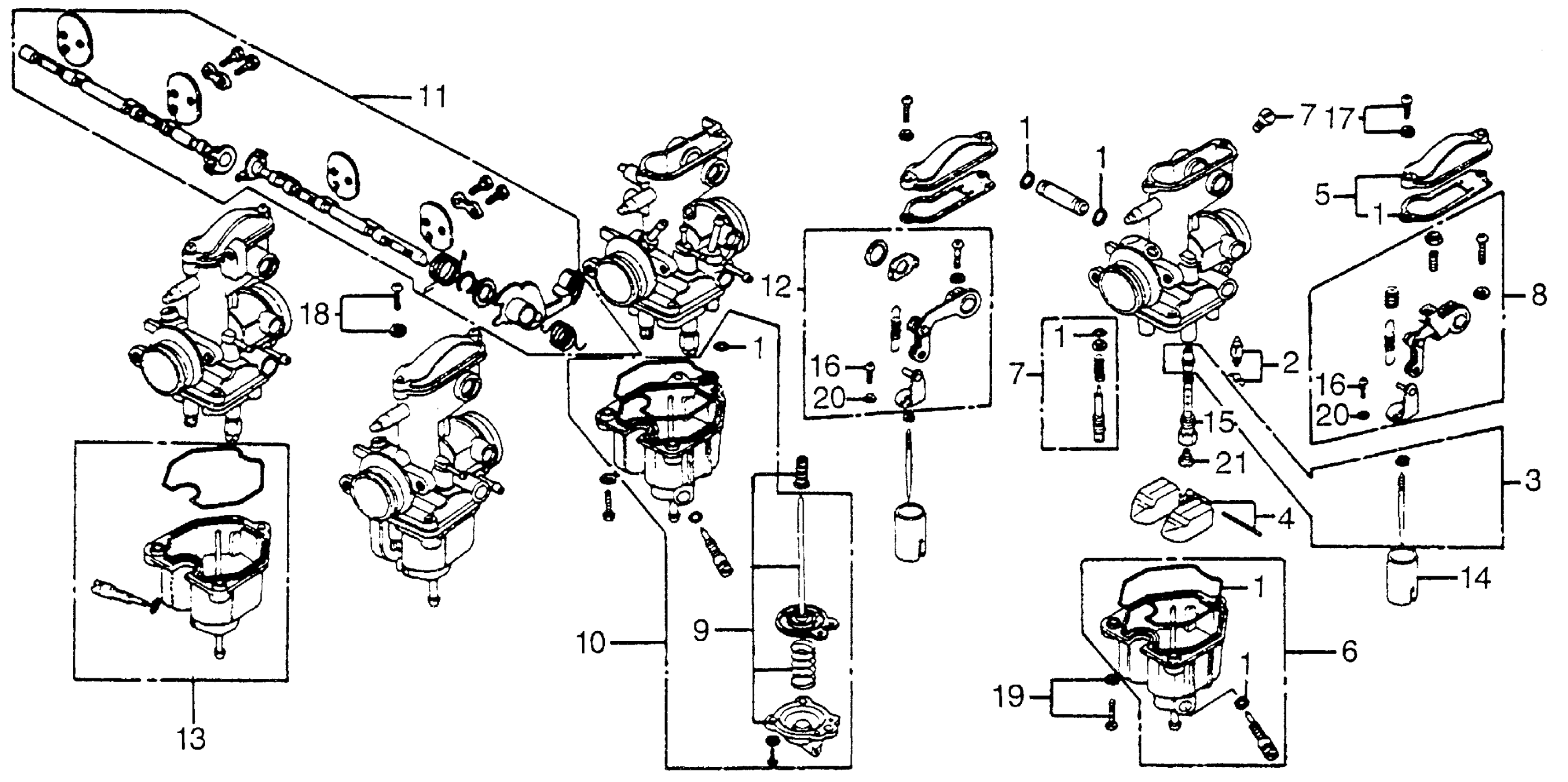

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 CARBURETOR COMP. PARTS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-393-004.

16010-393-305

$23.21

1

GASKET SET

16010-393-305

$23.21

2

VALVE SET, FLOAT | Use up to Engine SN PD43A A This part replaces 16011-KG0-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN PD43A A This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use from Engine SN PD43A B This part replaces 16011-382-004.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT | Use up to Engine SN PD43A A This part replaces 16011-393-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-393-601

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET (NOT AVAILABLE)

16014-393-004

Unavailable

6

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-393-004.

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

6

SCREW SET This part replaces 16016-364-780.

16016-463-661

$21.40

6

SCREW SET

16016-463-661

$21.40

7

SCREW SET A (NOT AVAILABLE)

16016-393-004

Unavailable

8

ARM SET A, LINK (NOT AVAILABLE)

16018-410-004

Unavailable

9

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-393-014

Unavailable

10

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-393-004

Unavailable

10

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-393-014.

16023-393-004

Unavailable

11

LINK SET, CHOKE (NOT AVAILABLE)

16025-393-325

Unavailable

12

ARM SET B, LINK (NOT AVAILABLE)

16031-393-014

Unavailable

13

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

13

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

13

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

14

VALVE, THROTTLE (NOT AVAILABLE)

16111-393-014

Unavailable

15

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-393-004

Unavailable

16

SCREW, PAN (3X8)

93500-03008-0H

$1.49

17

SCREW-WASHER (4X12)

93892-04012-08

$1.49

18

SCREW-WASHER (4X14)

93892-04014-08

$1.49

19

SCREW-WASHER (4X16)

93892-04016-08

$1.49

20

WASHER, SPRING (3MM)

94111-03800

$1.49

21

JET, MAIN (#108) This part replaces 99101-GHB-1080.

99101-MAZ-1080

$8.92

21

JET, MAIN (#108) This part replaces 99101-393-1080.

99101-MAZ-1080

$8.92
