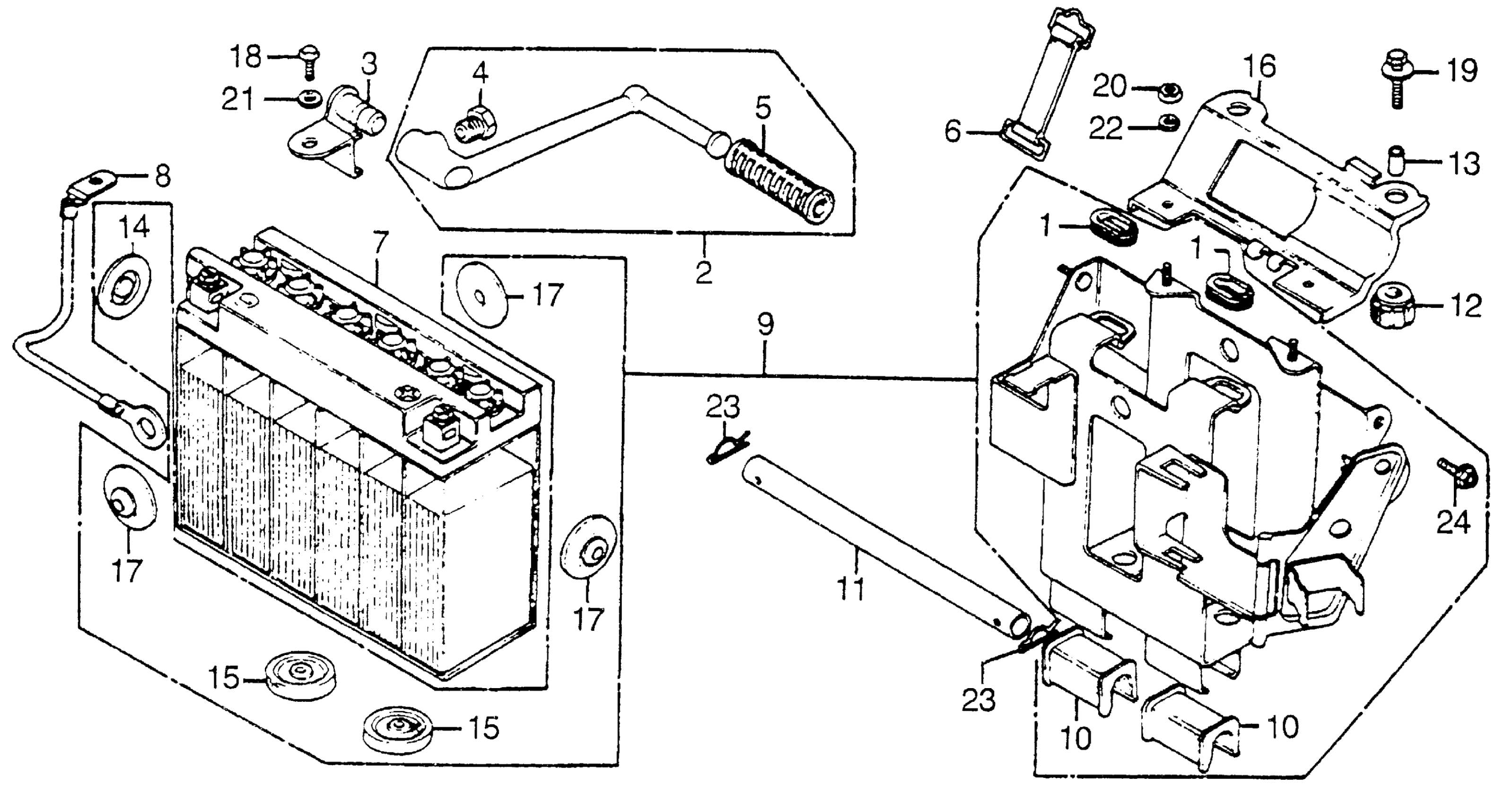

Honda CB750AA (78) 750 HONDAMATIC, JPN, VIN# CB750A-7200001 BATTERY + KICK STARTER ARM Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.92

2

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28240-393-770

Unavailable

3

BRACKET, KICK STARTER (NOT AVAILABLE)

28242-393-000

Unavailable

4

BOLT ASSY. (10MM) (NOT AVAILABLE)

28248-371-000

Unavailable

5

RUBBER, KICK STARTER

28311-329-000

$5.54

6

BAND, KICK ARM SETTING (NOT AVAILABLE)

28334-393-770

Unavailable

7

BATTERY ASSY. This part replaces 31500-371-672.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-431-671.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-463-671.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-463-677.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-463-721.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-463-743.

31500-463-747AH

Unavailable

7

BATTERY ASSY. This part replaces 31500-463-747.

31500-463-747AH

Unavailable

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-393-000

Unavailable

9

BOX ASSY., BATTERY

50320-393-770

Unavailable

10

CUSHION, BATTERY (NOT AVAILABLE)

50321-393-000

Unavailable

11

BAR, BATTERY BOX STAY (NOT AVAILABLE)

50322-393-000

Unavailable

12

RUBBER A, BATTERY (NOT AVAILABLE)

50323-300-010

Unavailable

13

COLLAR, BATTERY BOX

50324-300-000

Unavailable

14

RUBBER B, BATTERY

50327-300-000

$4.58

15

RUBBER A, BATTERY MOUNTING (NOT AVAILABLE)

50328-371-000

Unavailable

16

STAY, BATTERY (UPPER) (NOT AVAILABLE)

50332-393-000

Unavailable

17

RUBBER, BATTERY BOX

83618-323-000

$2.47

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT-WASHER (6X25) (NOT AVAILABLE)

93494-06025-07

Unavailable

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

PIN, LOCK (14MM)

94251-14000

Unavailable

24

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

24

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
