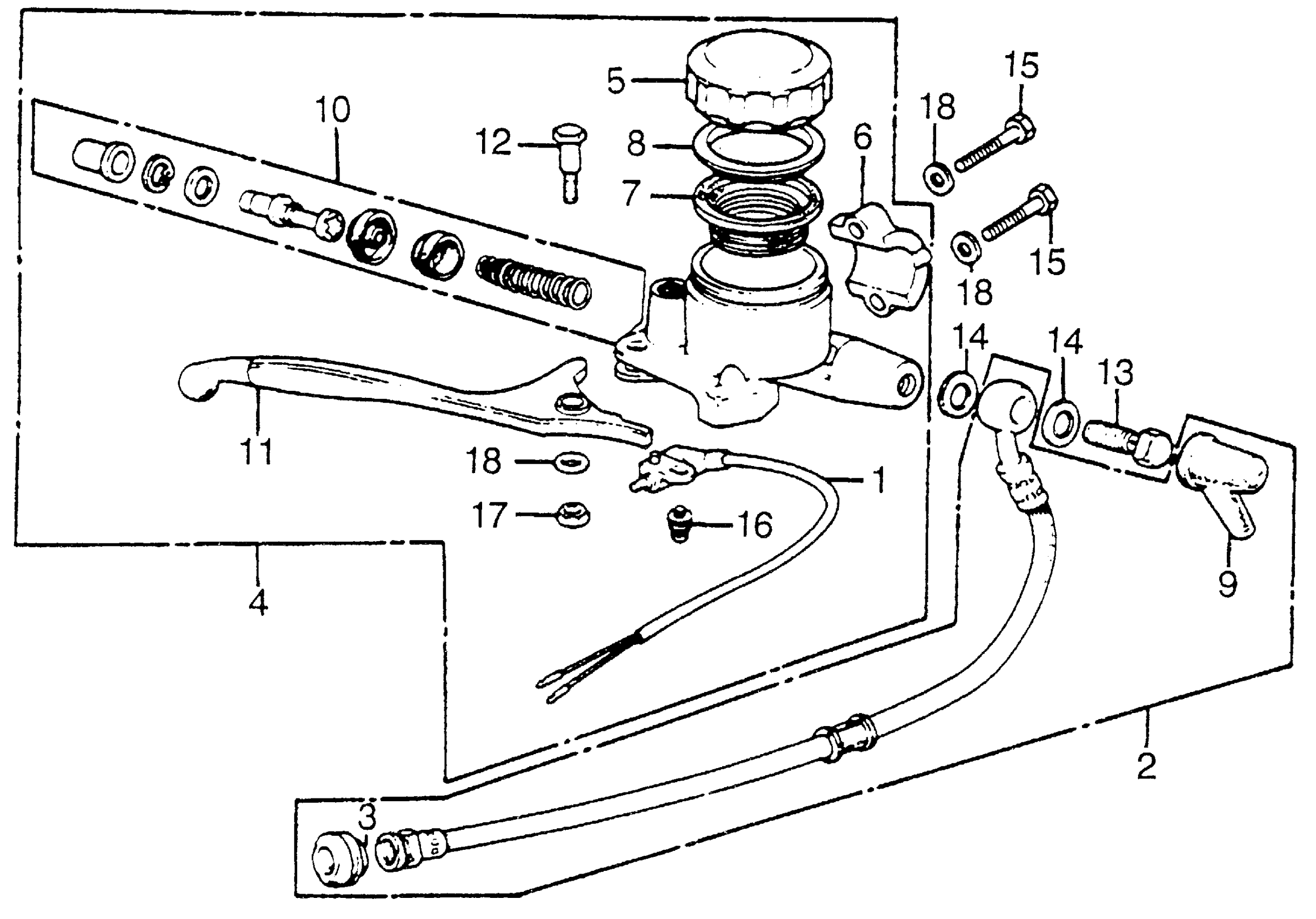

Honda CB750AA (77) 750 HONDAMATIC, JPN, VIN# CB750A-7100001 TO CB750A-7110560 FR. BRAKE MASTER CYL. Diagram

SWITCH ASSY., FR. STOP (NOT AVAILABLE)

35340-393-771

$12.48

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45125-393-771.

45125-393-701

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$3.95

MASTER CYLINDER This part replaces 45500-393-771.

45500-405-701

Unavailable

CAP, OIL CUP

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$26.32

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$3.77

BOOT, MASTER CYLINDER

45522-300-010

$8.34

MASTER CYLINDER SET This part replaces 45530-404-305.

45530-404-315

$62.73

MASTER CYLINDER SET

45530-404-315

$62.73

LEVER, R. HANDLEBAR | Use up to Frame SN 7109652 This part replaces 53175-393-770.

53175-393-771

$20.94

LEVER, R. HANDLEBAR | Use up to Frame SN 7109652

53175-431-670

Unavailable

LEVER, R. HANDLEBAR

53175-431-670

Unavailable

LEVER, R. HANDLEBAR

53175-393-771

$20.94

BOLT, HANDLEBAR LEVER PIVOT (NOT AVAILABLE)

90114-393-770

Unavailable

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

BOLT, OIL

90145-300-010

$8.32

WASHER, OIL BOLT

90545-300-000

$3.72

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

SCREW-WASHER (4X12)

93893-04012-00

Unavailable

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.19

NUT, HEX. (6MM)

94002-06000-0S

$1.19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable
