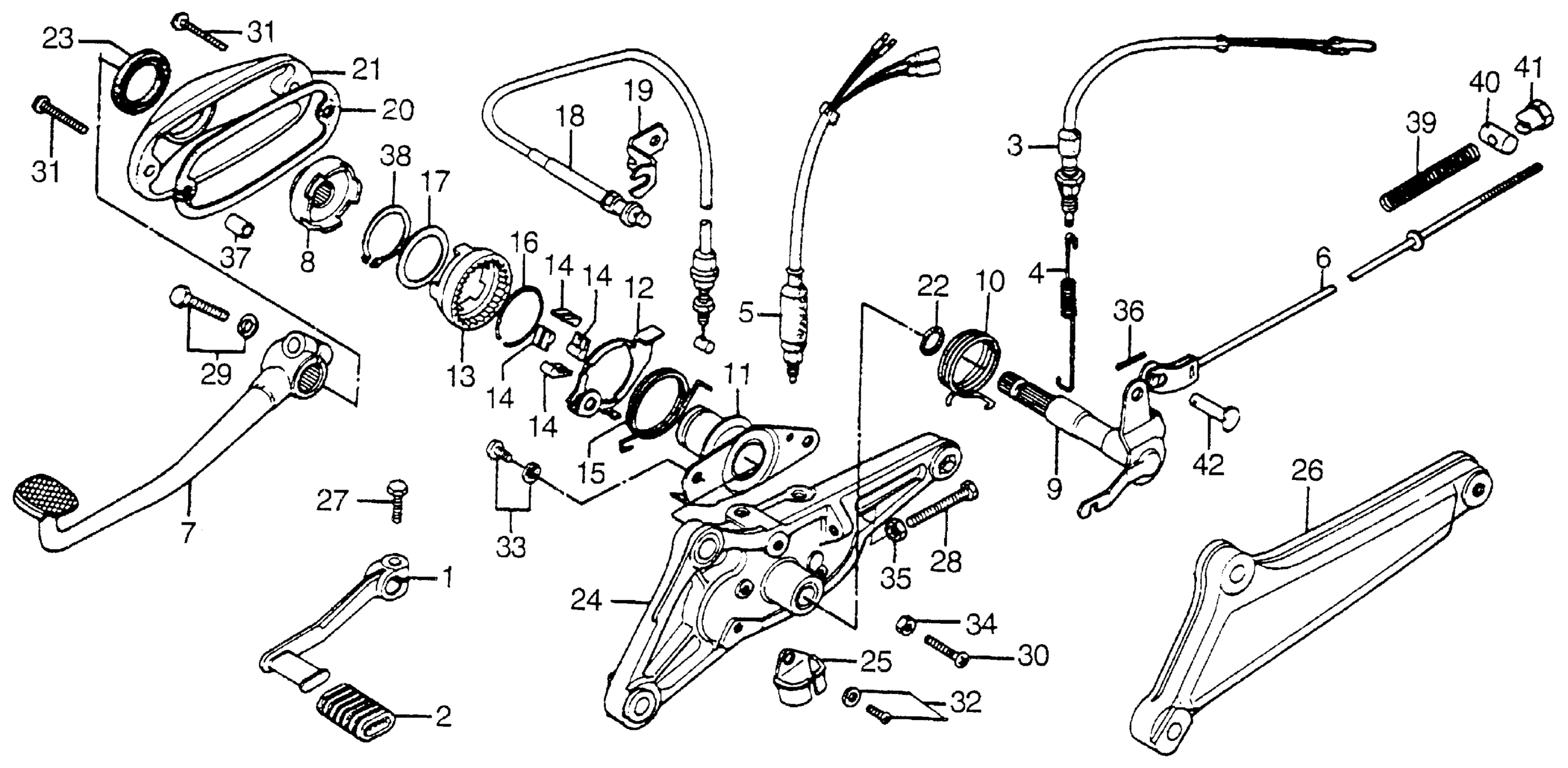

Honda CB750AA (77) 750 HONDAMATIC, JPN, VIN# CB750A-7100001 TO CB750A-7110560 CHANGE PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-393-771

Unavailable

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

3

SWITCH ASSY., RR. STOP This part replaces 35350-086-721.

35350-GB2-505

Unavailable

4

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-393-000

Unavailable

5

SWITCH ASSY., PARKING This part replaces 35360-393-771.

35360-393-772

Unavailable

5

SWITCH ASSY., PARKING (NOT AVAILABLE)

35360-393-772

Unavailable

6

ROD, RR. BRAKE (NOT AVAILABLE)

43451-393-770

Unavailable

7

PEDAL, BRAKE (NOT AVAILABLE)

46500-393-771

Unavailable

8

JOINT, RR. BRAKE

46501-393-770

Unavailable

9

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-393-772

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-393-771

Unavailable

11

BASE, RATCHET (NOT AVAILABLE)

46601-393-770

Unavailable

12

LEVER, RATCHET (NOT AVAILABLE)

46602-393-770

Unavailable

13

CASE, RATCHET (MUSASHI) (NOT AVAILABLE)

46604-393-003

Unavailable

14

POLE, RATCHET (MUSASHI) (NOT AVAILABLE)

46605-393-013

Unavailable

15

SPRING, RATCHET RETURN (NOT AVAILABLE)

46606-393-010

Unavailable

16

SPRING, POLE SET (NOT AVAILABLE)

46607-393-010

Unavailable

17

WASHER (38X29.5X1) (MUSASHI) (NOT AVAILABLE)

46608-393-003

Unavailable

18

CABLE, PARKING BRAKE (KOUKOKU) (NOT AVAILABLE)

46620-393-772

Unavailable

19

BRACKET, PARKING BRAKE CABLE (NOT AVAILABLE)

46625-393-000

Unavailable

20

GASKET This part replaces 46625-393-770.

46625-393-405

Unavailable

21

COVER, RATCHET (NOT AVAILABLE)

46626-393-770

Unavailable

22

O-RING (18.8X1.5) (NOT AVAILABLE)

46628-393-771

Unavailable

23

DUST SEAL (26.5X33X4) (NOT AVAILABLE)

46629-393-771

Unavailable

24

HOLDER, R. MUFFLER (NOT AVAILABLE)

50600-393-771

Unavailable

25

HOOK, DRAIN TUBE (NOT AVAILABLE)

50604-393-771

Unavailable

26

HOLDER, L. MUFFLER

50610-393-770

Unavailable

27

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

27

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

28

BOLT, HEX. (6X40) (NOT AVAILABLE)

92140-06040

Unavailable

29

BOLT-WASHER (8X28) (NOT AVAILABLE)

93482-08028-00

Unavailable

30

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

30

SCREW, PAN (6X20)

93500-06020-0A

$1.49

31

SCREW, PAN (6X28)

93500-06028-0B

Unavailable

31

SCREW, PAN (6X28) This part replaces 93500-06028-02.

93500-06028-0B

Unavailable

32

SCREW-WASHER (6X12) (NOT AVAILABLE)

93892-06012-00

Unavailable

33

SCREW-WASHER (6X16)

93892-06016-00

$1.49

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

35

NUT, HEX. (6MM)

94002-06000-0S

$1.49

36

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

36

PIN, COTTER (1.6X25)

94201-16250

$1.49

37

PIN A, DOWEL (8X12)

94301-08120

$2.19

38

CIRCLIP (OUTER) (29MM) (SOURCE: VINTAGE PARTS INC.)

94511-29000

Unavailable

39

SPRING A, BRAKE ROD

95014-73100

$1.49

40

JOINT B, BRAKE ARM

95015-32001

$1.49

41

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

42

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
