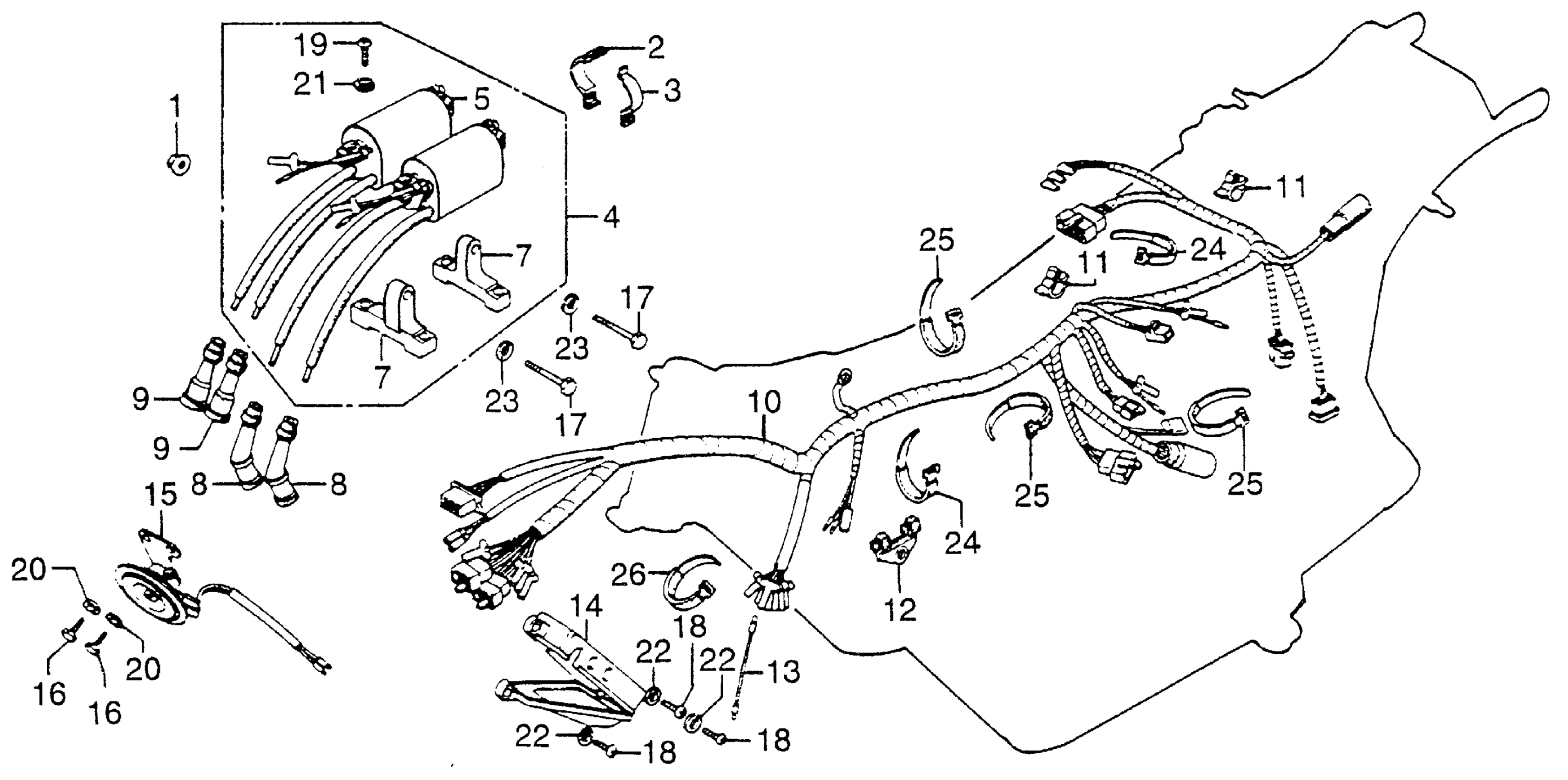

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$0.59

1

NUT, FLANGE (6MM)

94050-06000

$0.59

2

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

3

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

4

COIL ASSY., IGNITION (TOYO)

30500-300-013

$288.13

5

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

5

COIL, R. IGNITION (TOYO) This part replaces 30501-300-013.

30501-300-003

Unavailable

7

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

8

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$17.78

8

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$17.78

8

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$17.78

8

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$17.78

9

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.17

9

CAP ASSY. This part replaces 30710-300-010.

30700-MW3-003

$14.17

9

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.17

9

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.17

10

WIRE HARNESS (NOT AVAILABLE)

32100-393-000

Unavailable

11

CLIP, WIRE HARNESS

32161-393-003

$2.80

12

HOLDER, WIRE HARNESS (NOT AVAILABLE)

32174-392-000

Unavailable

13

SUB-WIRE HARNESS (NOT AVAILABLE)

32200-390-670

Unavailable

14

BOX, HARNESS (NOT AVAILABLE)

32400-392-000

Unavailable

15

HORN ASSY. (NOT AVAILABLE) | Use up to Frame SN 7007600 This part replaces 38100-392-620.

38100-392-621

Unavailable

15

HORN ASSY. (NOT AVAILABLE) | Use from Frame SN 7007601

38100-392-621

Unavailable

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

17

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

17

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

18

SCREW, PAN (5X12)

93500-05012-0G

$0.83

19

SCREW, PAN (5X20)

93500-05020-0A

$0.75

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

WASHER, SPRING (5MM)

94111-05000

$1.03

22

WASHER, SPRING (5MM)

94111-05700

$1.03

23

WASHER, SPRING (6MM)

94111-06000

$0.86

24

BAND B1, CABLE

32161-404-000

$2.13

24

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.13

25

BAND A2, CABLE

95014-61200

Unavailable

26

BAND A3, CABLE

95014-61300

$1.80
