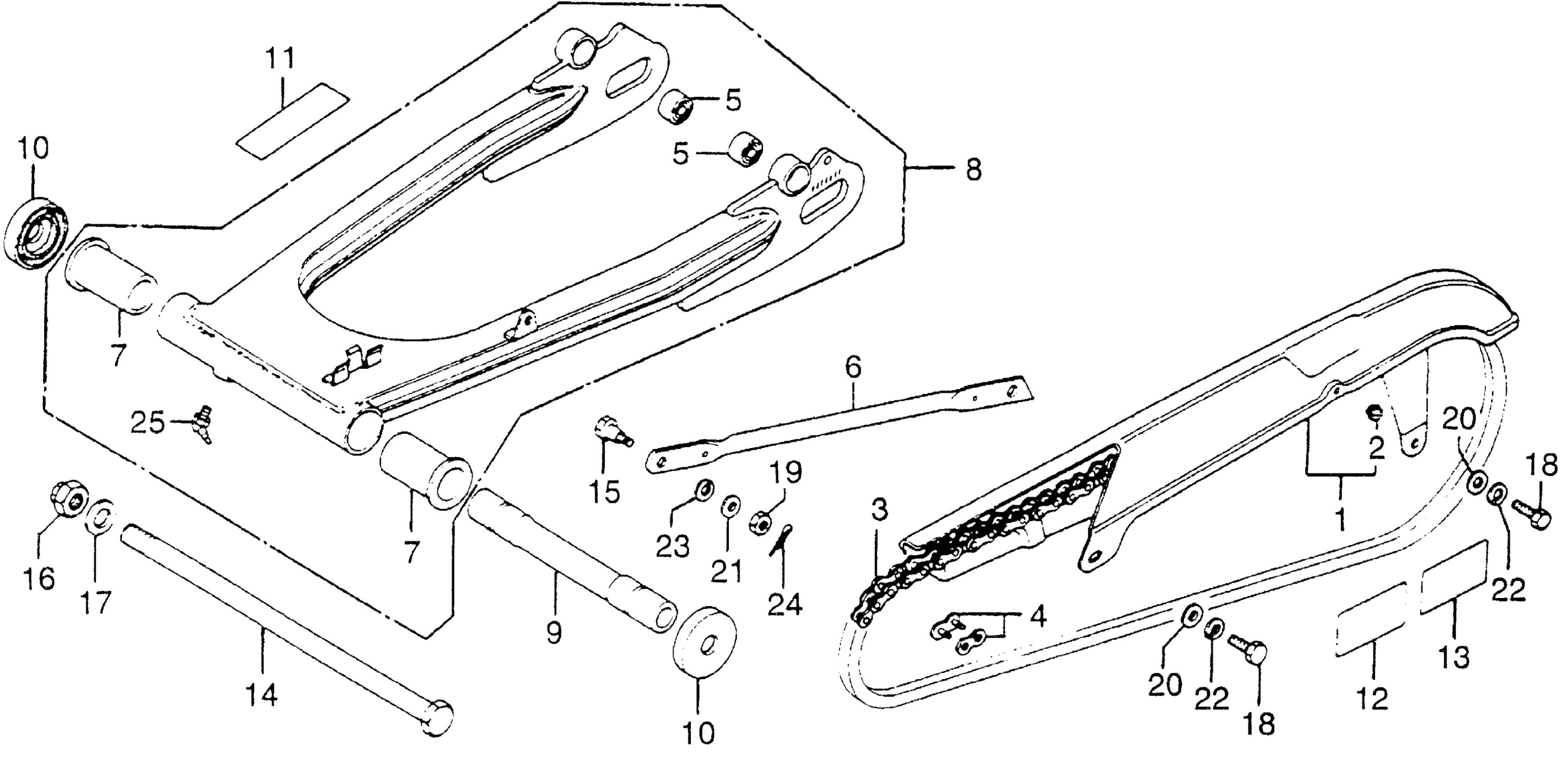

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-393-000

Unavailable

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

CHAIN, DRIVE (RK50SS-104LE) (NOT AVAILABLE)

40530-393-006

Unavailable

4

MASTER LINK (RK50SS) (NOT AVAILABLE) | (Optional).

40531-392-305

Unavailable

5

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

6

ARM, RR. BRAKE STOPPER

43431-MK7-000

Unavailable

6

ARM, RR. BRAKE STOPPER This part replaces 43431-393-000.

43431-MK7-000

Unavailable

7

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

8

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-393-000ZA

Unavailable

9

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-390-000.

52141-390-010

Unavailable

9

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-390-010

Unavailable

10

CAP, DUST SEAL

52144-362-000

Unavailable

11

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

12

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-393-670

Unavailable

13

LABEL, CHAIN CAUTION (NOT AVAILABLE)

87507-392-670

Unavailable

14

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-390-000.

90121-426-000

Unavailable

14

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-426-000

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

16

NUT, LOCK (14MM)

90354-268-000

$6.78

17

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

WASHER, SPRING (8MM)

94111-10000

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, COTTER (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

25

FITTING, GREASE (B.76S)

96201-80000

$2.56
