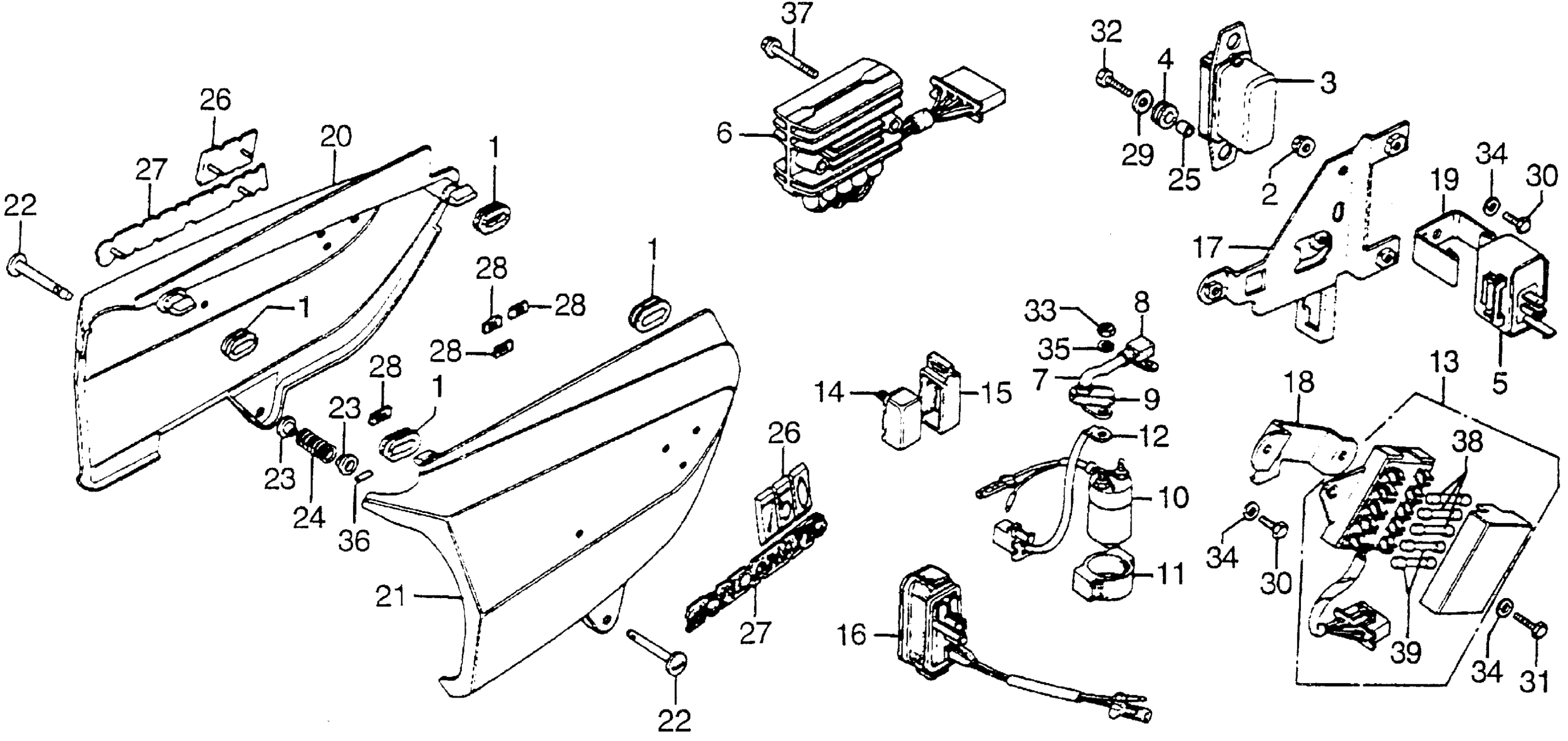

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 SIDE COVER + REGULATORS Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

2

NUT, FLANGE (6MM)

94050-06000

$1.49

3

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

4

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

4

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

5

REGULATOR ASSY. (7V) (NOT AVAILABLE)

31410-371-007

Unavailable

6

RECTIFIER ASSY., SILICON (NOT AVAILABLE)

31700-371-000

Unavailable

7

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-393-000

Unavailable

8

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-393-000

Unavailable

9

COVER B, MAGNETIC SWITCH (NOT AVAILABLE)

32413-393-000

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

11

SUSPENSION, MAGNETIC SWITCH (NOT AVAILABLE)

35856-323-000

Unavailable

12

SUB-WIRE, MAGNETIC (NOT AVAILABLE)

35858-393-000

Unavailable

13

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE) This part replaces 38200-377-005.

38200-377-305

Unavailable

13

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE)

38200-377-305

Unavailable

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

15

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

16

RELAY ASSY., CHANGE (MITSUBA) (NOT AVAILABLE)

38320-393-014

Unavailable

17

PLATE, ELECTRIC BASE

50330-393-000

Unavailable

18

PLATE, FUSE BOX

50334-393-000

Unavailable

19

PLATE, REGULATOR (7V)

50347-393-000

Unavailable

20

COVER, R. SIDE *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE)

83600-393-000ZA

Unavailable

20

COVER, R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83600-393-000ZB

Unavailable

21

COVER, L. SIDE *G38MS* (MUSCAT GREEN METALLIC) (NOT AVAILABLE)

83700-393-000ZA

Unavailable

21

COVER, L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83700-393-000ZB

Unavailable

22

PIN, SIDE COVER

83703-371-000

Unavailable

23

GUIDE, SPRING

83704-333-000

Unavailable

24

SPRING, SIDE COVER SET (NOT AVAILABLE)

83705-333-000

Unavailable

25

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

26

EMBLEM A, SIDE COVER (NOT AVAILABLE)

87111-393-000

Unavailable

27

EMBLEM B, SIDE COVER (NOT AVAILABLE)

87113-393-000

Unavailable

28

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

28

NUT, SPEED (3MM)

90313-567-000

$3.97

29

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

29

WASHER (18MM)

90581-831-650

$1.87

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

32

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

32

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

33

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

33

NUT, HEX. (6MM)

94002-06080-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, SPRING (6MM)

94111-06800

$1.49

36

PIN, SPRING (2X14)

94305-20142

$1.49

37

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

37

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

38

FUSE B (7A)

98200-20700

$1.49

39

FUSE B (15A)

98200-21500

$1.49
