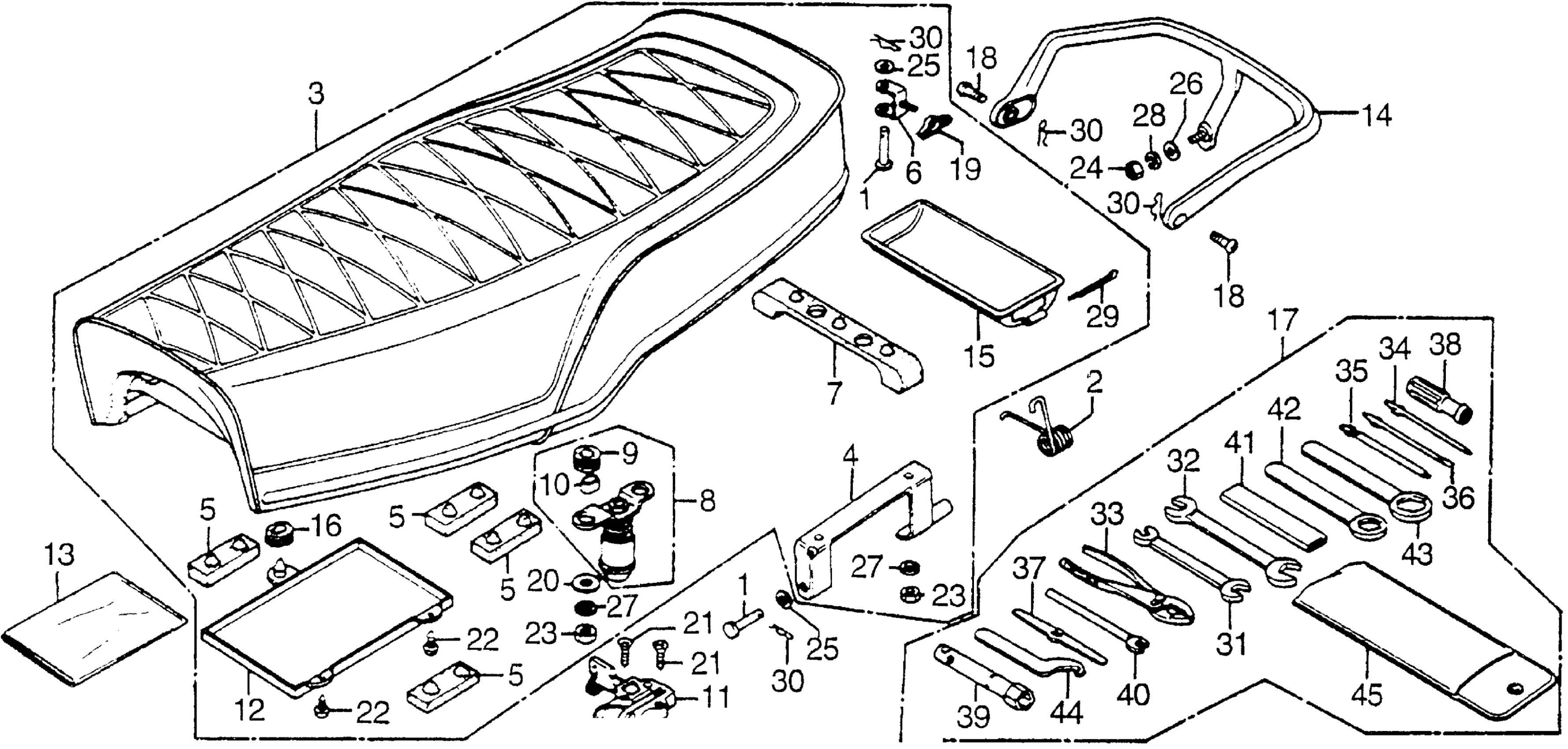

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 SEAT + TOOL Diagram

#

Description
Price

1

BAR, SEAT HINGE

77103-313-000

Unavailable

2

SPRING, SEAT HINGE (NOT AVAILABLE)

77106-393-000

Unavailable

3

SEAT, DOUBLE (NOT AVAILABLE)

77200-393-670

Unavailable

4

HINGE, SEAT (NOT AVAILABLE)

77201-393-010

Unavailable

5

RUBBER, SEAT SETTING

77204-312-000

$4.83

6

HINGE C, TOOL

77205-393-000

Unavailable

7

RUBBER, SEAT STOPPER (NOT AVAILABLE)

77206-393-000

Unavailable

8

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

8

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

8

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

9

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.05

9

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.05

9

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.05

10

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.80

10

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.80

10

COLLAR, SEAT LOCK BAR

77229-340-003

$2.80

11

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-377-003.

77230-399-007

Unavailable

11

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

11

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

11

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

12

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

13

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.10

14

GRIP, SEAT

77300-393-000

Unavailable

15

BOX, TOOL (NOT AVAILABLE)

83500-393-010

Unavailable

16

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

17

TOOL SET (NOT AVAILABLE)

89010-393-000

Unavailable

18

SCREW, PAN (8X20) (NOT AVAILABLE)

90109-393-000

Unavailable

19

WINGNUT

90352-SA5-000

Unavailable

19

WINGNUT This part replaces 90352-704-000.

90352-SA5-000

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.72

20

WASHER, PLAIN (6MM)

94103-06800

$0.72

21

SCREW, FLAT (6X12)

93600-06012-0G

$0.99

21

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$0.99

22

SCREW, TAPPING (5X8)

93901-25080

$0.84

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.21

23

NUT, HEX. (6MM)

94001-06200-0S

$1.21

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.21

24

NUT, HEX. (8MM)

94001-08000-0S

$1.21

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM)

94101-06800

Unavailable

26

WASHER, PLAIN (8MM)

94101-08000

$0.76

27

WASHER, SPRING (6MM)

94111-06000

$0.87

28

WASHER, SPRING (8MM)

94111-08000

$0.91

29

PIN, COTTER (2.5X45)

94201-25450

Unavailable

30

PIN, LOCK (6MM)

94251-06000

$0.96

31

WRENCH (10X12) (OPEN END)

99001-10120

$5.20

32

WRENCH (14X17) (OPEN END)

99001-14170

$8.75

33

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.59

34

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.14

35

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.14

36

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.14

37

LEVER, TIRE

99003-40000

$1.18

38

GRIP

99003-50000

$4.06

39

WRENCH, BOX (P18)

99004-18002

$5.56

40

BAR B, HANDLE

99005-02000

$2.42

41

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.76

42

WRENCH, EYE (22MM)

99006-22000

$3.86

43

WRENCH, EYE (24MM)

99006-24000

$3.97

44

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.15

45

BAG, TOOL

89101-ME5-670

Unavailable

45

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
