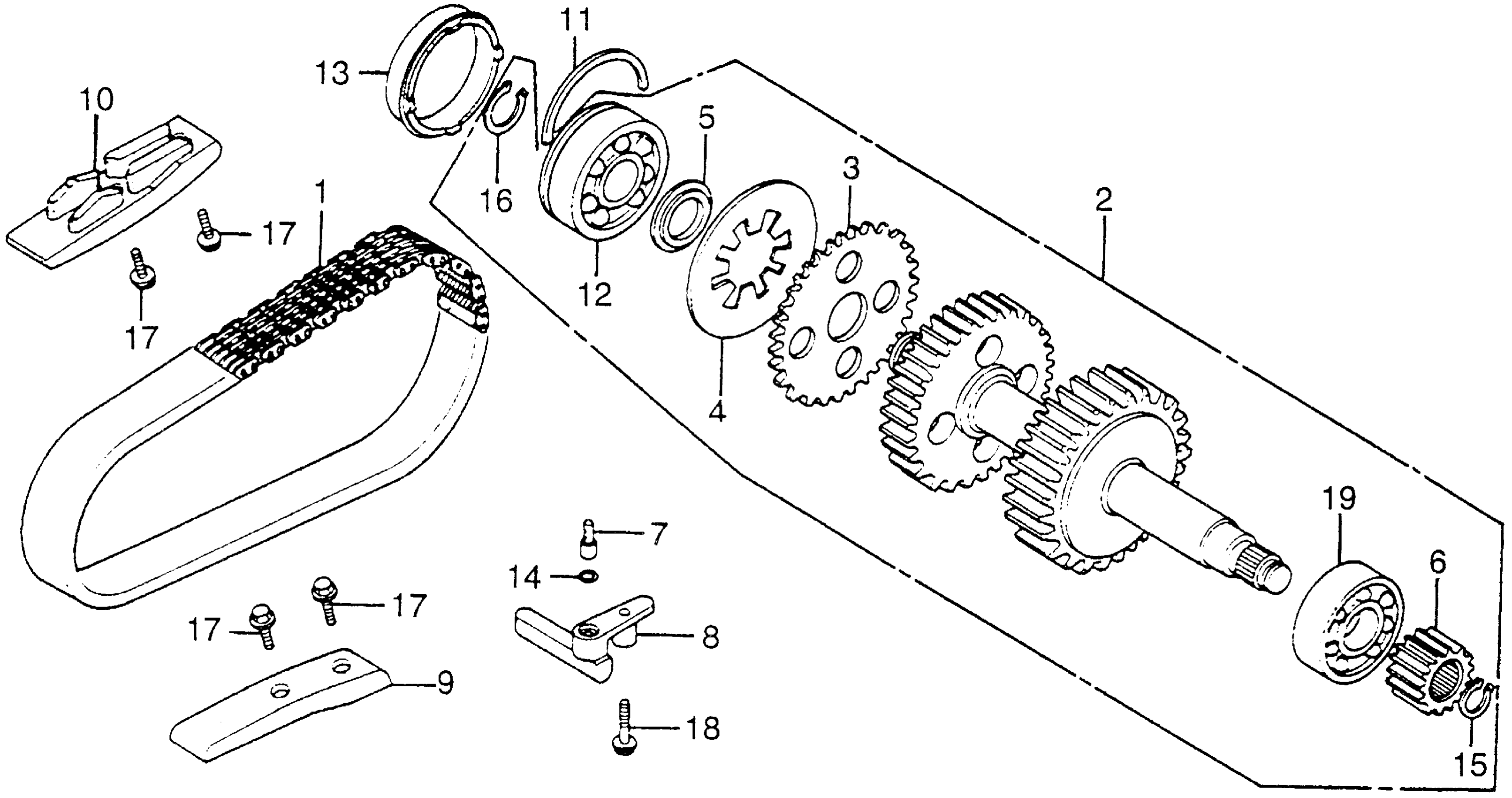

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 PRIMARY CHAIN + PRIMARY SHAFT Diagram

CHAIN, PRIMARY (50L) (TSUBAKIMOTO)

13610-393-004

Unavailable

SHAFT ASSY., PRIMARY

13640-393-010

Unavailable

SUB-GEAR, PRIMARY SHAFT (37T)

13642-393-300

Unavailable

SPRING, PRIMARY GEAR (NIPPON)

13644-393-015

Unavailable

COLLAR, PRIMARY SHAFT

13645-393-300

Unavailable

GEAR, OIL PUMP DRIVE (17T)

15211-393-000

Unavailable

ORIFICE, OIL CONTROL (NOT AVAILABLE)

15325-393-000

Unavailable

NOZZLE, CHAIN OIL FEED

15711-393-000

Unavailable

GUIDE, PRIMARY CHAIN (NOT AVAILABLE)

23132-393-000

Unavailable

GUIDE, PRIMARY CHAIN (UPPER)

23133-393-000

Unavailable

SET-RING (56MM) (NOT AVAILABLE)

90601-393-000

Unavailable

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE) This part replaces 91007-393-003.

91007-438-003

Unavailable

SEAL, CAP (56X10)

91209-393-003

Unavailable

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
