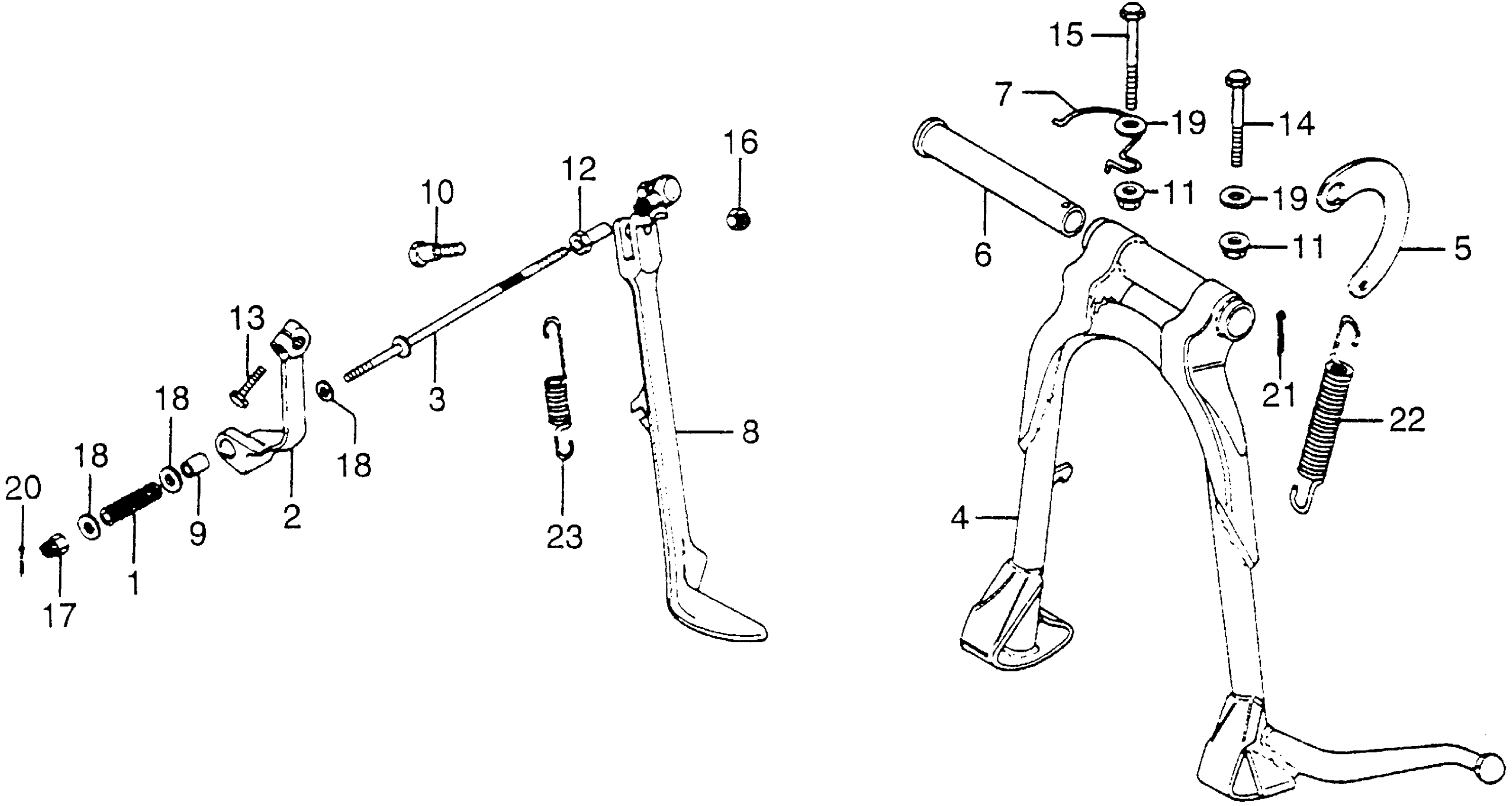

Honda CB750AA (76) 750 HONDAMATIC, JPN, VIN# CB750A-7000001 TO CB750A-7007331 MAIN STAND + SIDE STAND Diagram

#

Description
Price

1

SPRING, NEUTRAL LEVER (NOT AVAILABLE)

24701-393-000

Unavailable

2

LEVER, NEUTRAL (NOT AVAILABLE)

24703-393-000

Unavailable

3

BOLT, TIE ROD (NOT AVAILABLE)

24705-393-000

Unavailable

4

STAND, MAIN

50500-392-010

Unavailable

5

PLATE, MAIN STAND SPRING

50523-300-010

Unavailable

6

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

7

GUIDE, TUBE DRAIN

50527-392-000

Unavailable

8

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50531-393-000

Unavailable

9

COLLAR, RR. FENDER

84705-310-000

$1.64

10

SCREW, SIDE STAND PIVOT

90108-283-000

$7.19

11

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$0.86

11

NUT, FLANGE (8MM)

94050-08000

$0.86

12

NUT, TIE ROD (NOT AVAILABLE)

90282-393-000

Unavailable

13

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

13

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

14

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.71

14

BOLT, HEX. (8X40)

92101-08040-0A

$1.71

15

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$1.94

15

BOLT, HEX. (8X45)

92101-08045-0A

$1.94

16

NUT, HEX. (10MM)

94002-10000-0S

$3.67

17

NUT, CASTLE (6MM) (NOT AVAILABLE)

94011-06020

Unavailable

18

WASHER, PLAIN (6MM)

94101-06200

$0.62

19

WASHER, PLAIN (8MM)

94102-08000

$0.86

20

PIN, COTTER (1.2X12) (NOT AVAILABLE)

94201-12120

Unavailable

21

PIN, COTTER (2.5MM)

94201-25300

$0.94

22

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$3.80

22

SPRING G, MAIN STAND

95014-71702

$3.80

23

SPRING D, SIDE STAND

95014-72402

$2.80
